Infinity Shuffle OXC for Resilient AI Data Center Networks
Infinity Shuffle OXC u2014 When a transceiver fails, your AI cluster keeps training. Rail-optimized lane distribution turns catastrophic link failures into manageable bandwidth reduction.
Flex Shuffle & Flexless Shuffle
From Hard Stop to Soft Degradation
In standard link-to-link AI fabrics, one failed transceiver halts the entire job. The Infinity Shuffle OXC distributes 800G/1.6T lanes across independent switch rails. A single failure drops bandwidth by 12.5% u2014 not 100%. Your cluster stays online. Maintenance waits for your schedule.
Zero Field Routing Errors
Every lane is mapped, routed, and tested before it leaves the factory. Automated precision cutting and biomimetic fiber placement deliver consistent shuffle insertion loss u22640.05 dB. What arrives on site is pre-validated u2014 no guesswork, no manual rewiring.
Flex or Flexless

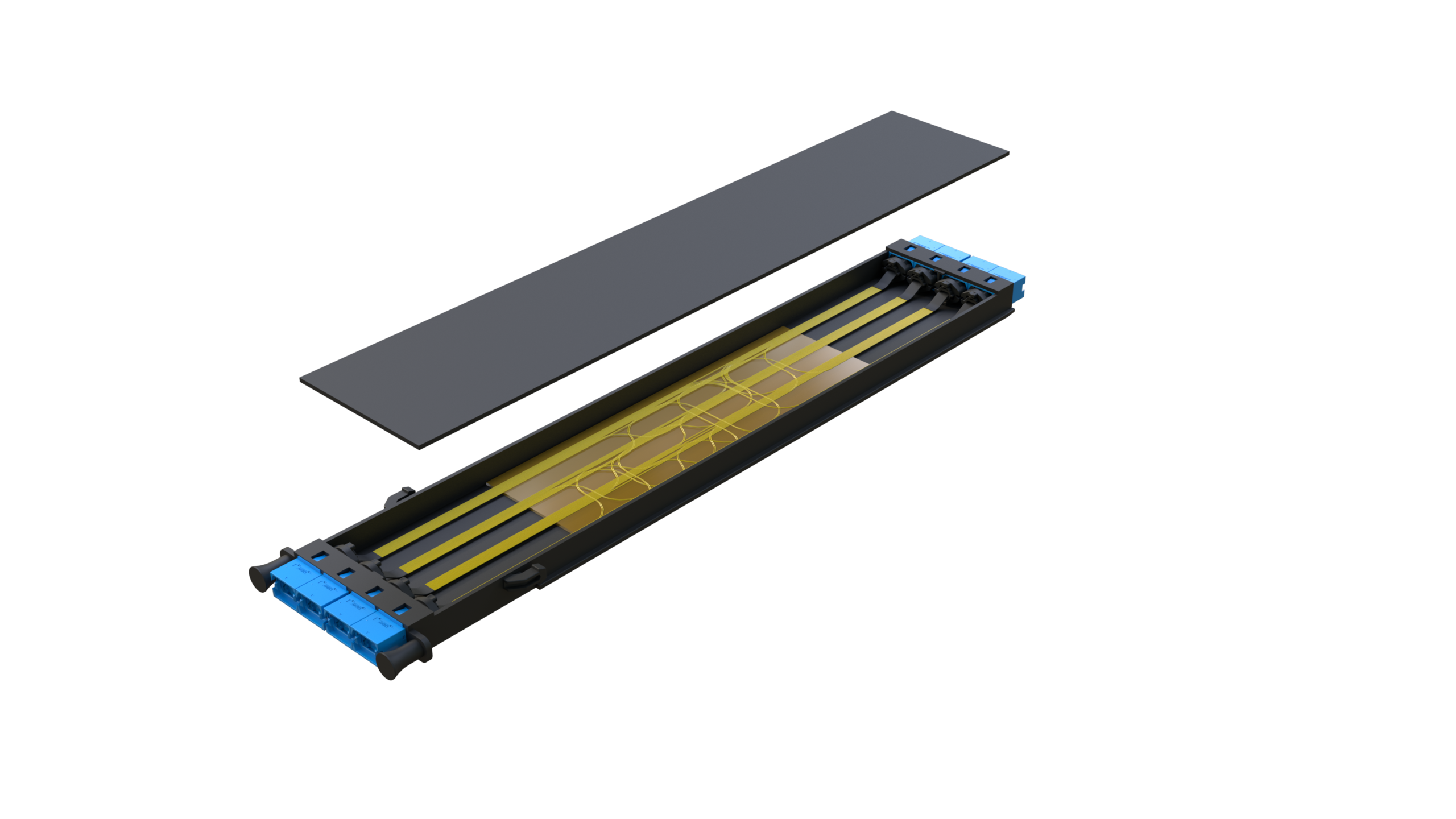

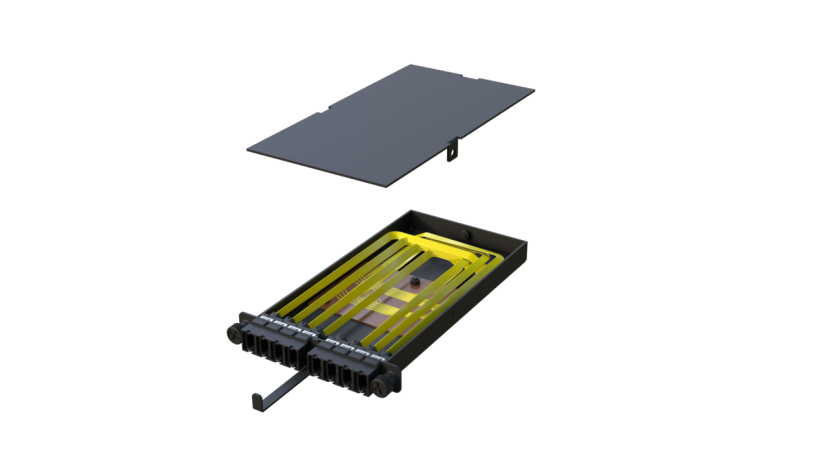

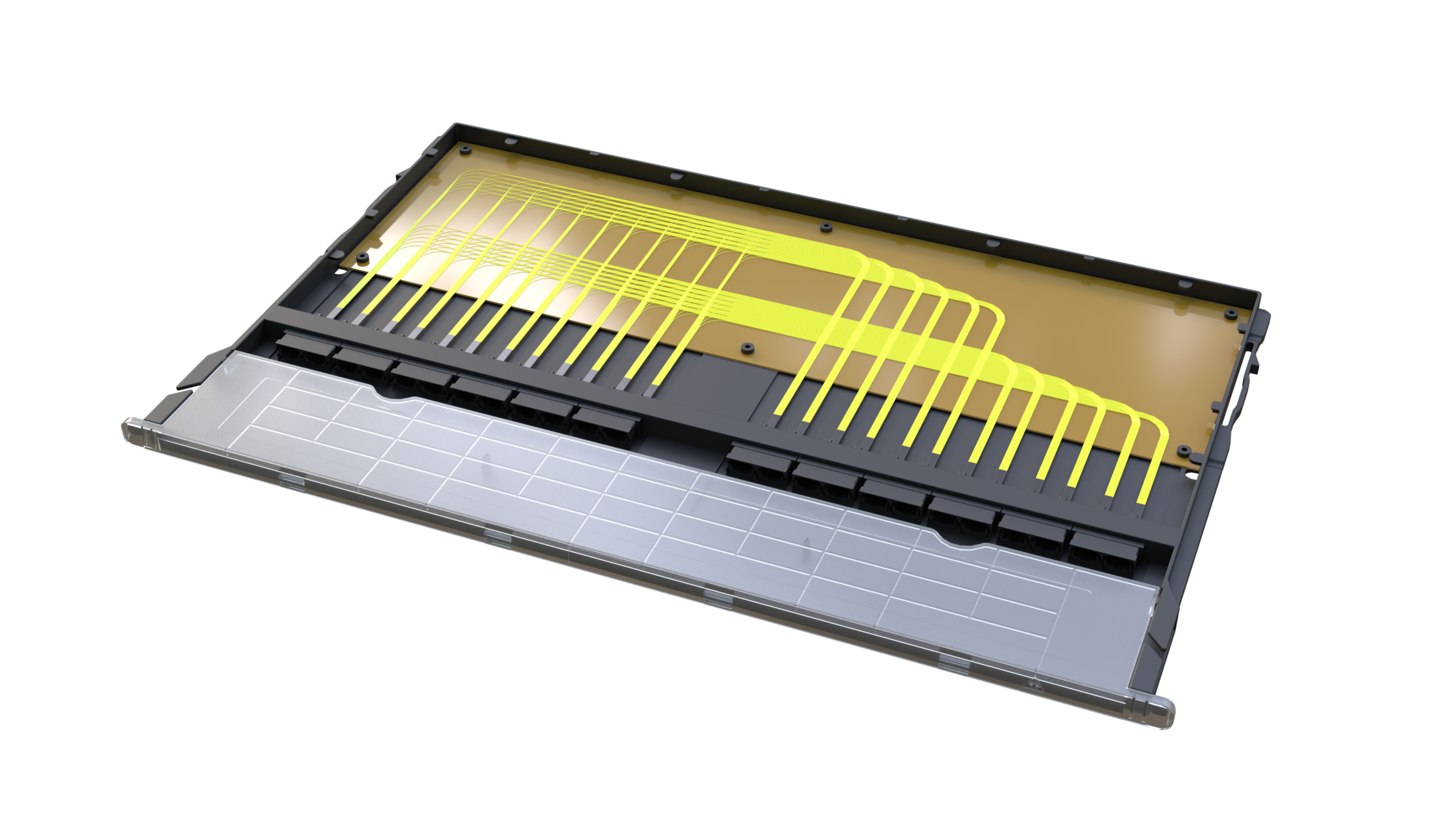

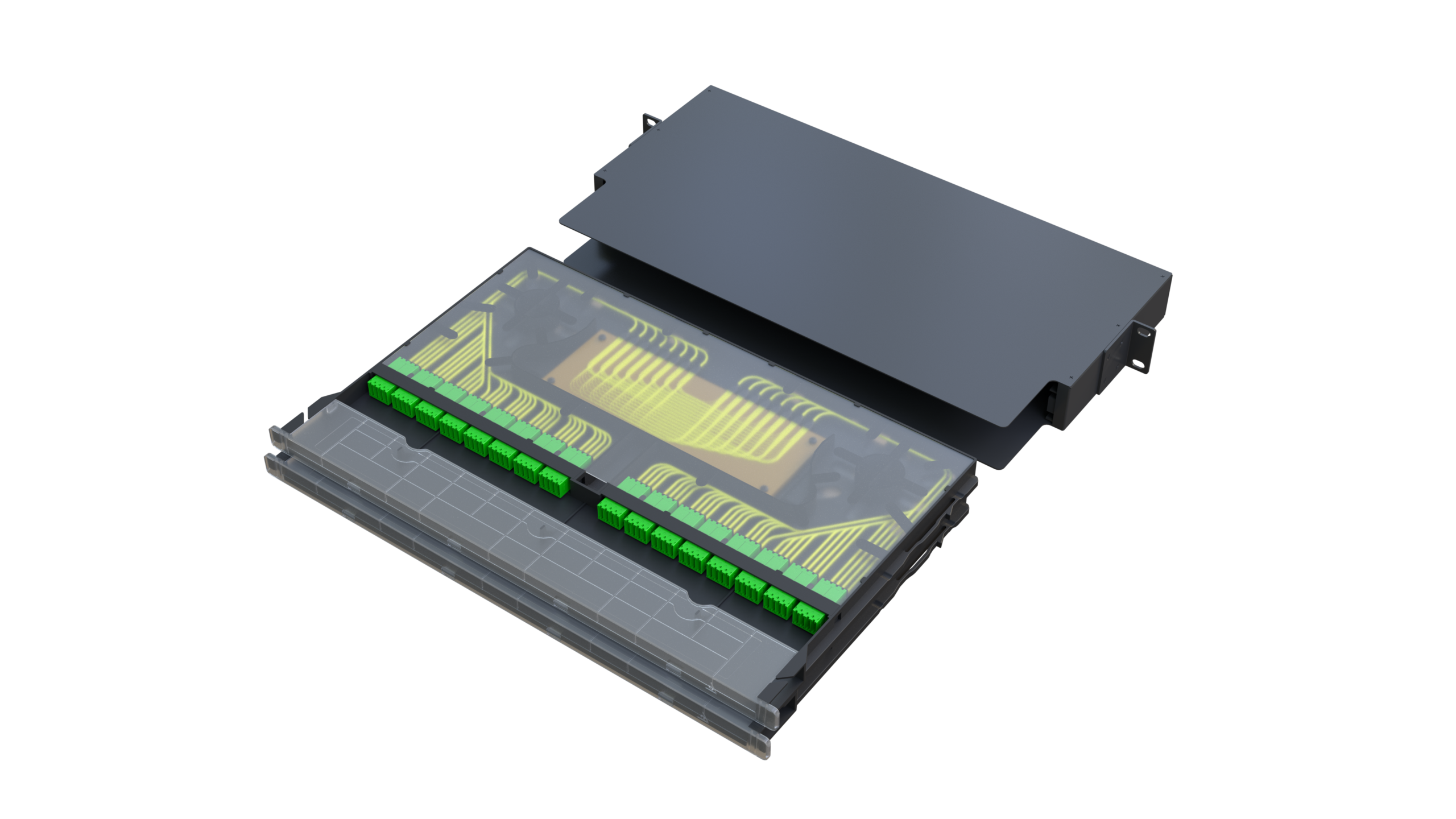

Select the Flex Shuffle with permanent polyimide substrate for traditional deployments. Or choose the Flexless Shuffle u2014 temporary substrate used during automated assembly, then removed, leaving only strategic glue points. Same optical performance, different material and thermal footprint.
Match Your Topology
Inline architecture feeds from the rear with no port loss u2014 ideal for top-of-rack panels. Parallel architecture enables full front-access patching u2014 designed for traditional ODF layouts. Pick the routing logic that fits your cable management, not the other way around.
Optical Performance
Assemblies Options (Head & Tail):
MPO/MTP (8, 12, 16, 24 fiber)
MMC (Multi-fiber Mini assemblies )
SN-MT (VSFF)
Bare fiber (for fusion splicing)
Max Dimensions: 1000 mm u00d7 800 mmu00a0
Max Fiber Count (Single Layer): 1200+

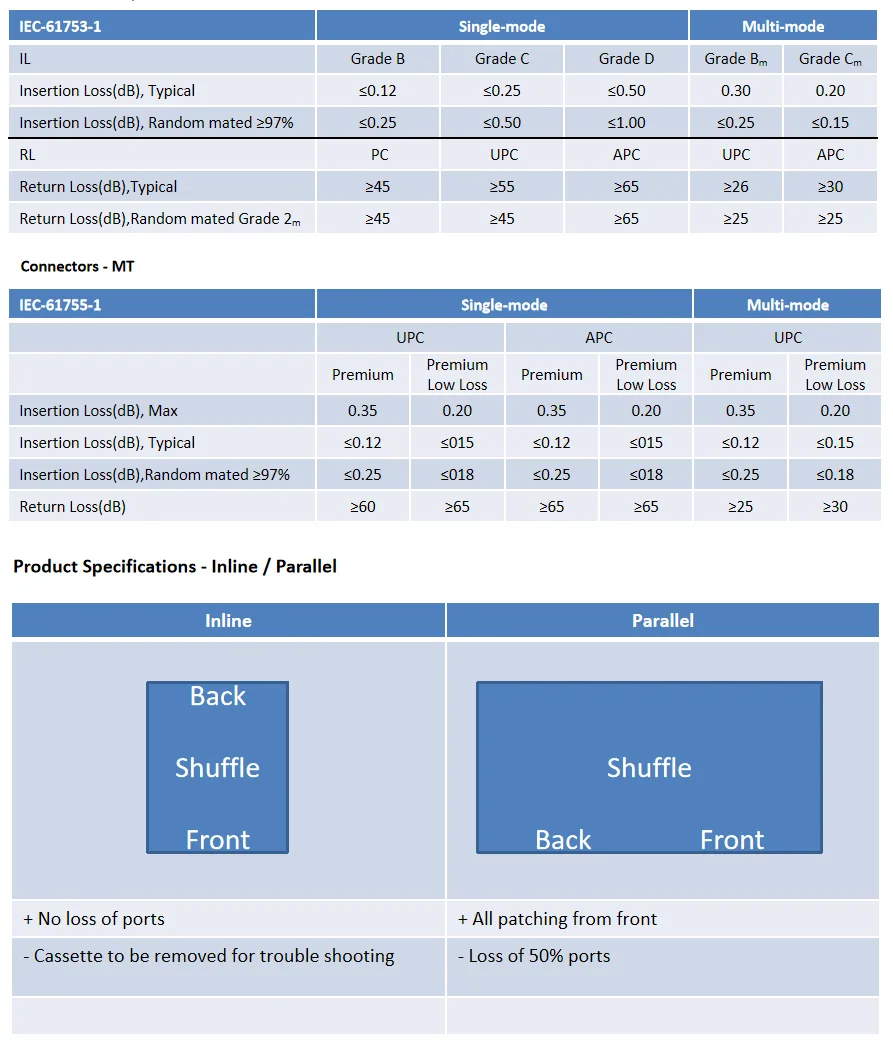

Optical Performance (IEC 61753-1):
Grade
Premium UPC/APC
Premium Low Loss
IL Typical
u22640.25 dB
u22640.15 dB
IL 97% Random Mated
u22640.18 dB
u22640.12 dB
Return Loss
u226560 dB
u226560 dB
Flex Shuffle: Polyimide substrate, green glue conformal coating, -40u00b0C to +85u00b0C
Flexless Shuffle: Temporary substrate removed post-assembly, strategic glue points only

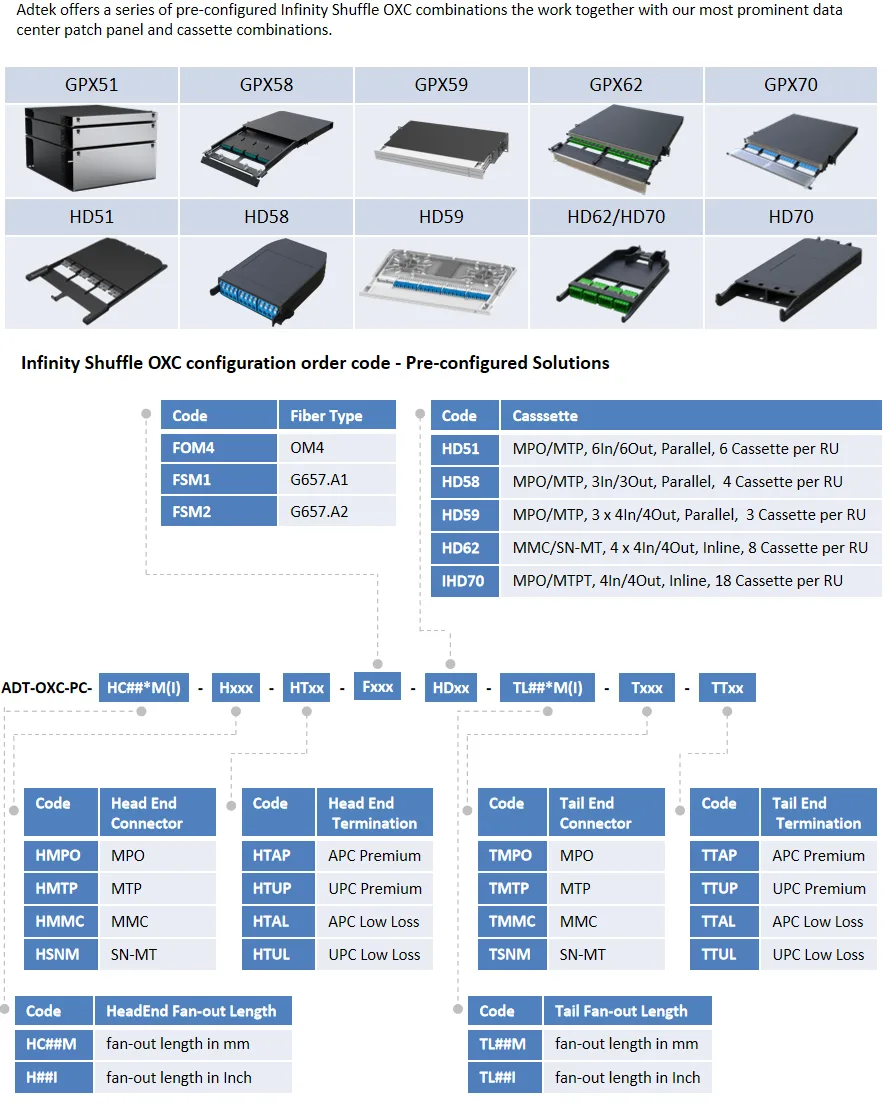

Deployment Configurations
Integrates With Your ADTEK Ecosystem

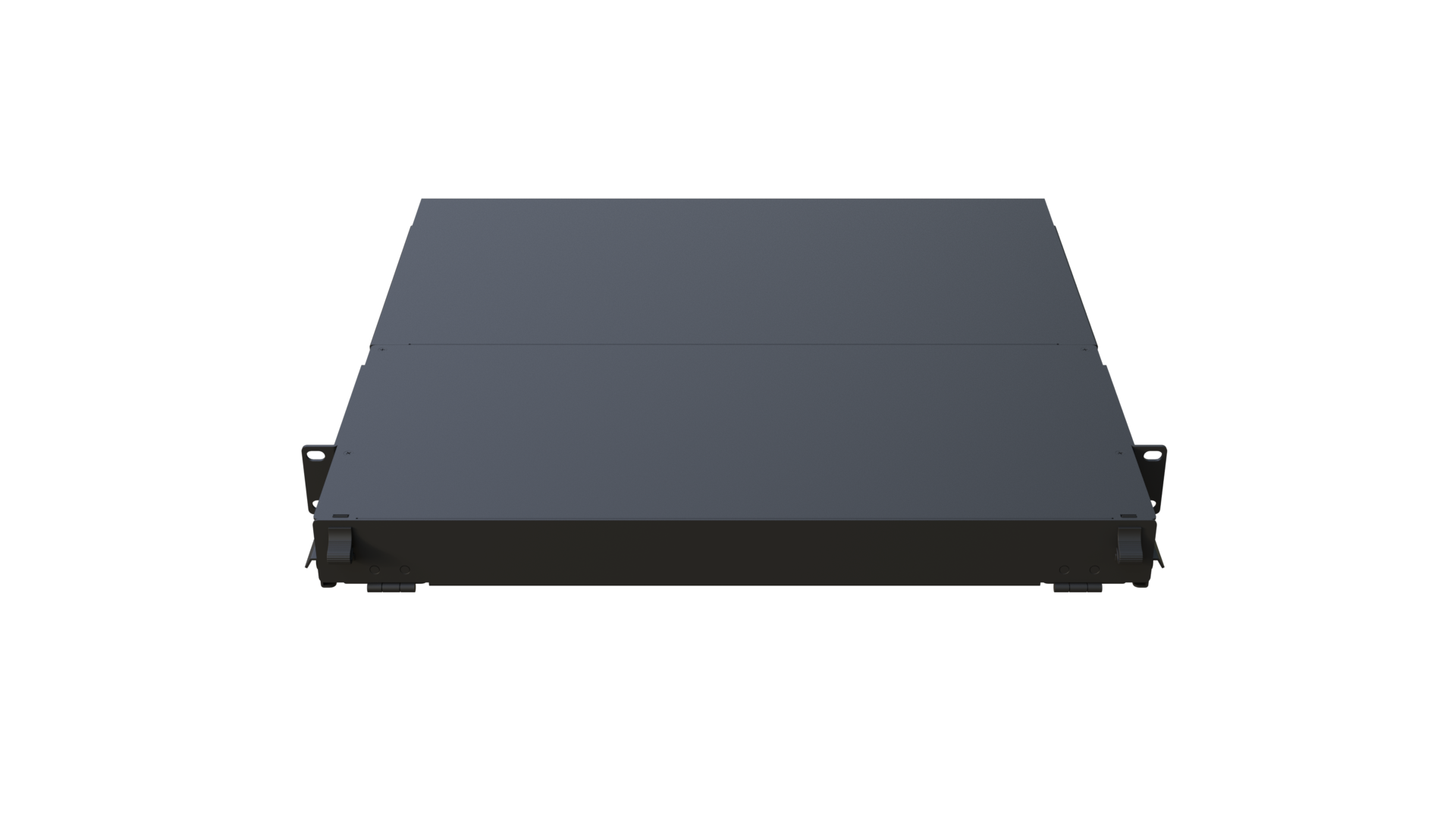

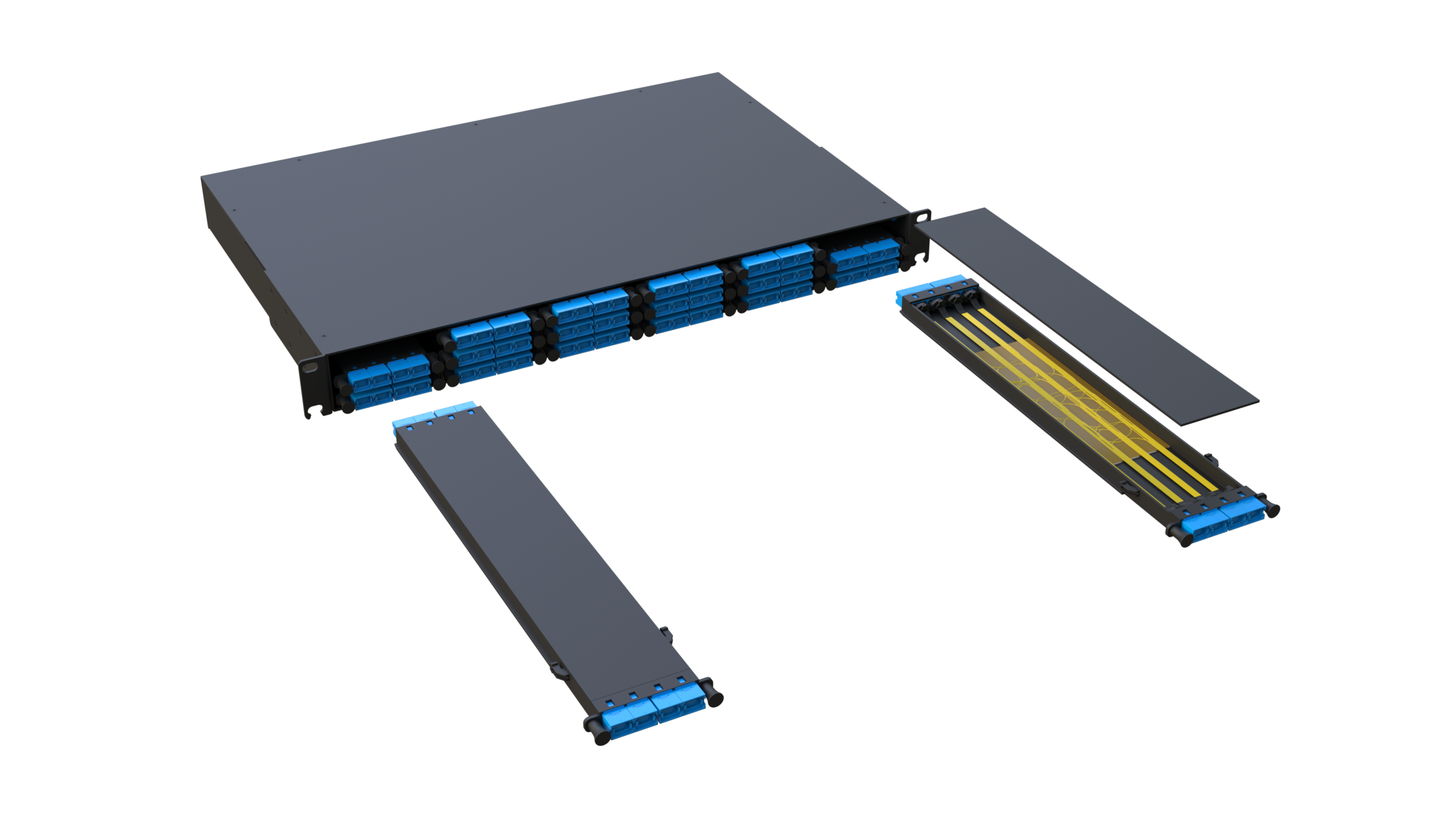

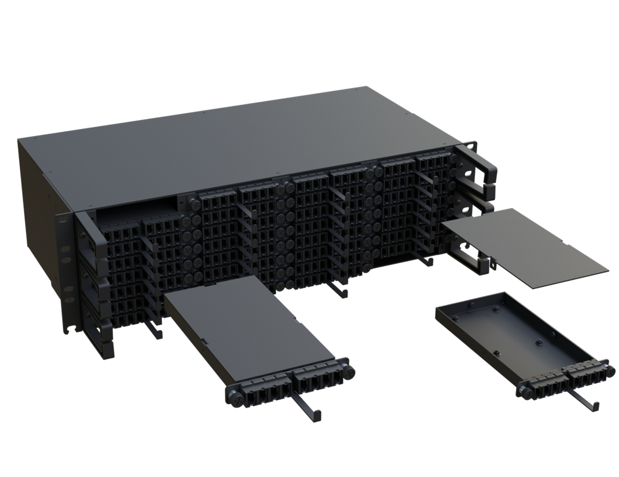

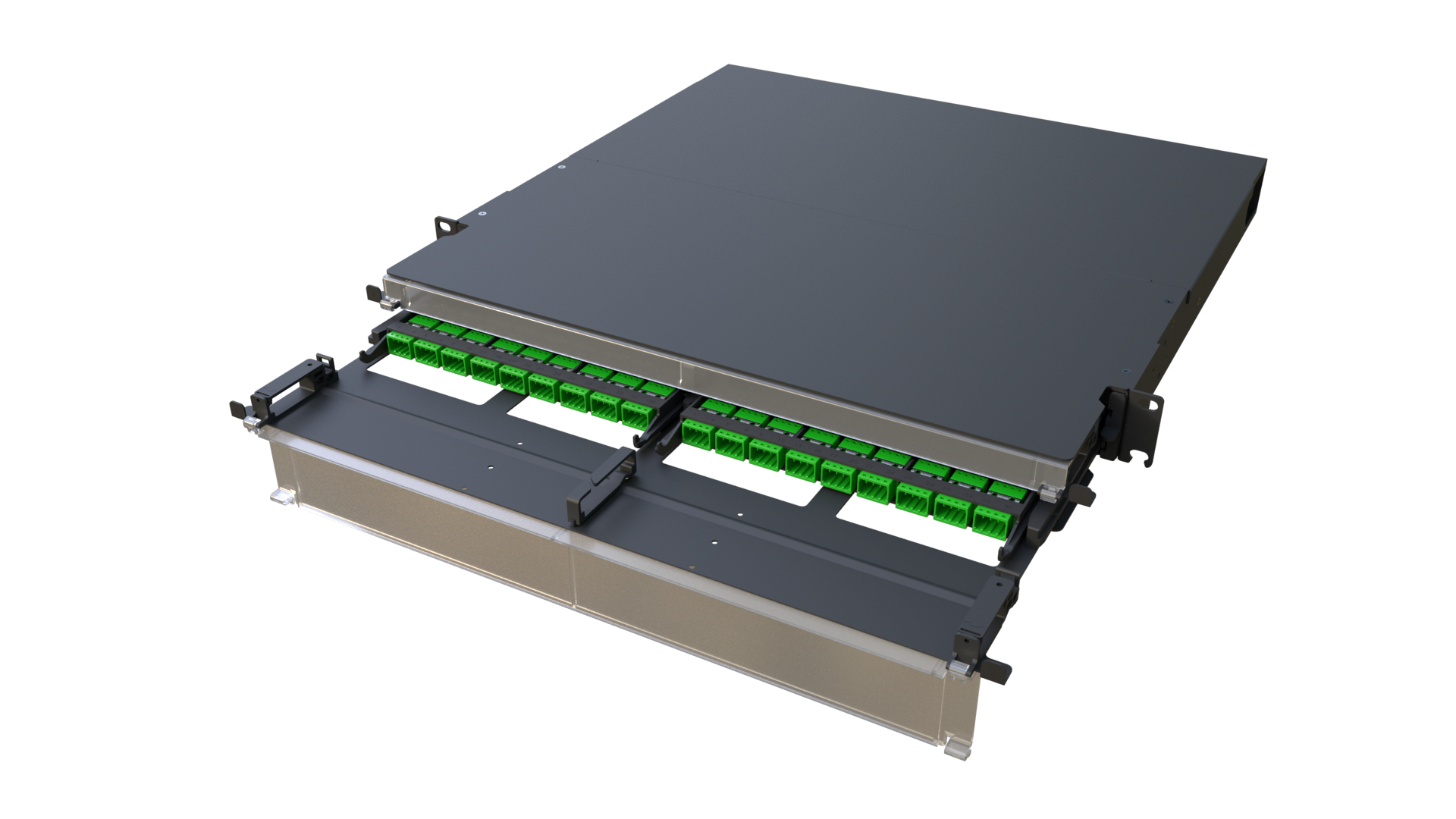

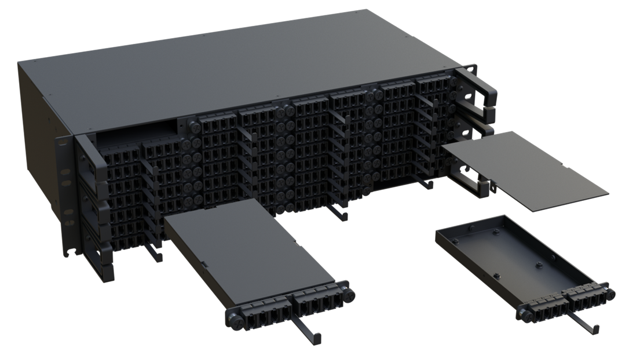

One vendor. One support team. One supply chain. The Infinity Shuffle OXC drops directly into ADTEK GPX chassis u2014 no third-party adapter guesswork.
Standards & Compliance
Protect Your Cluster Uptime
Discuss how rail-optimized lane distribution can change your failure mode. Request a custom shuffle configuration for your topology.
