MTP® MPO assemblies

Related Product News

ADTEK fiber optic solution illustration for data center and telecom applications

Application Environment

Datacom

DC(Data Center)& Hyperscale DC

LAN and SAN

10G to 40G Direct/25G to 100G Direct of Base-8

10G to 100G Direct of Base-24

800G QSFP-DD/OSFP DR8 and 800G OSFP XDR8 of Base-16

Specifications

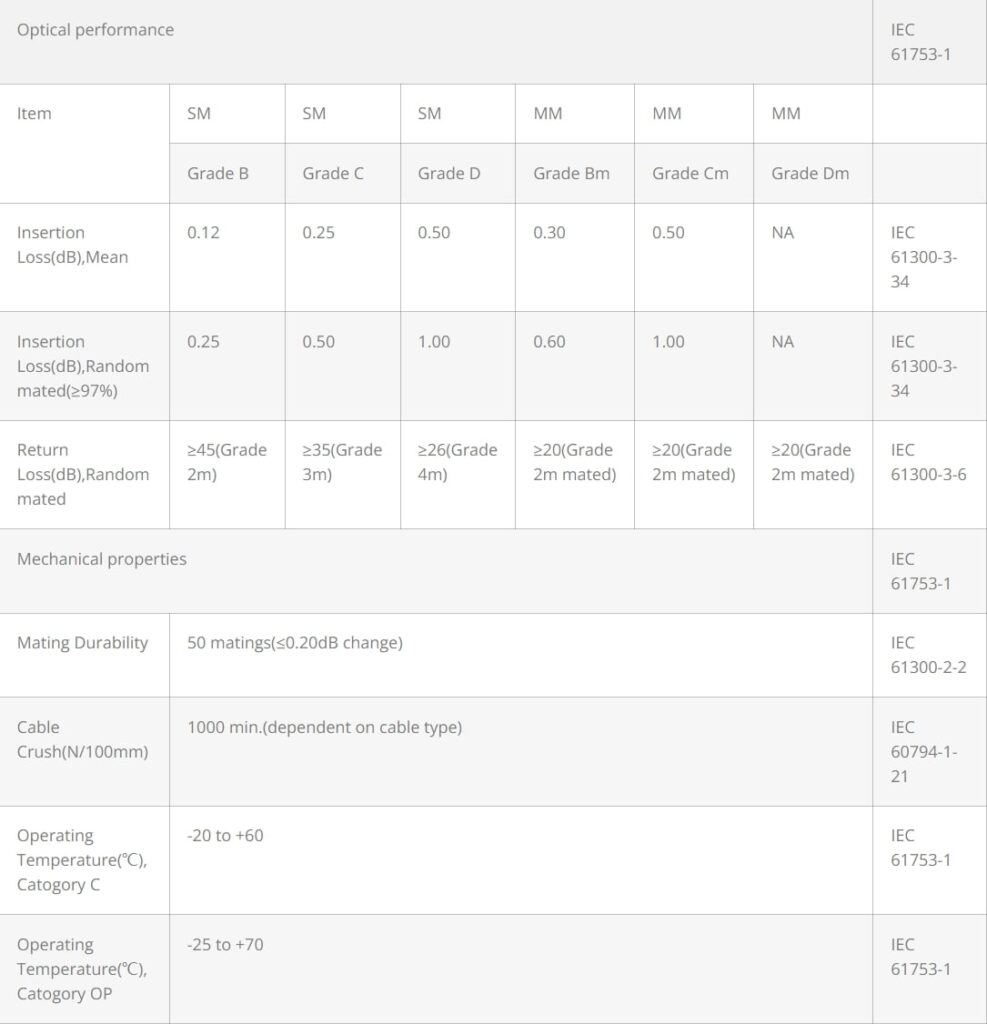

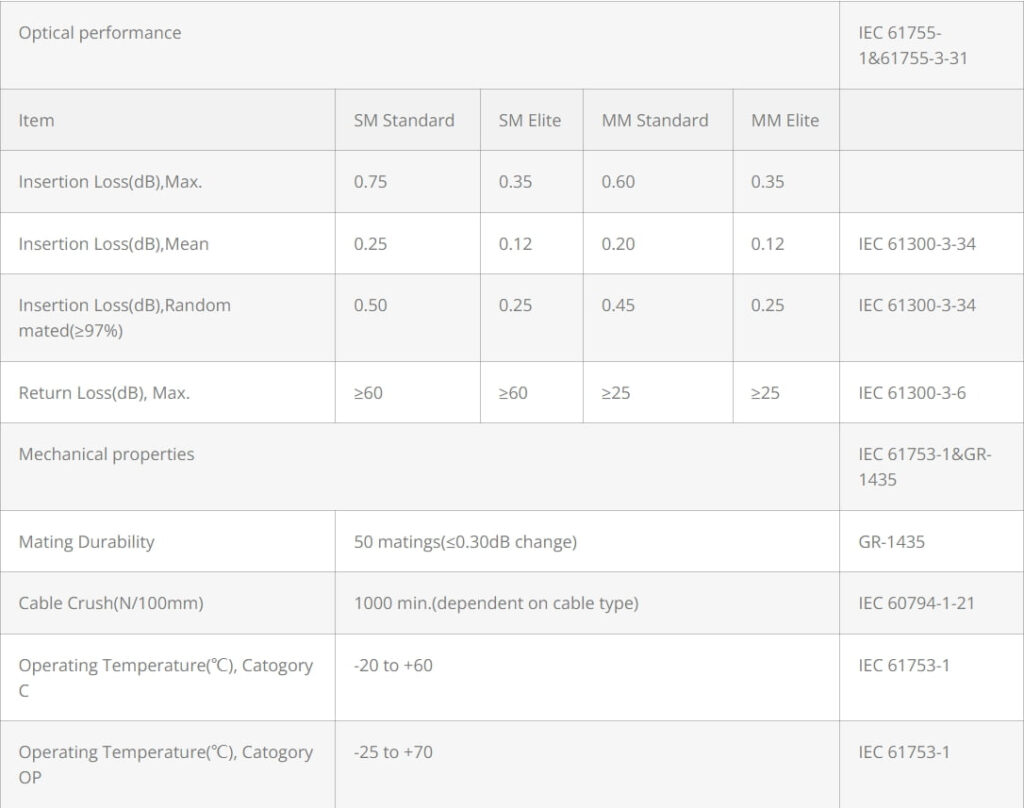

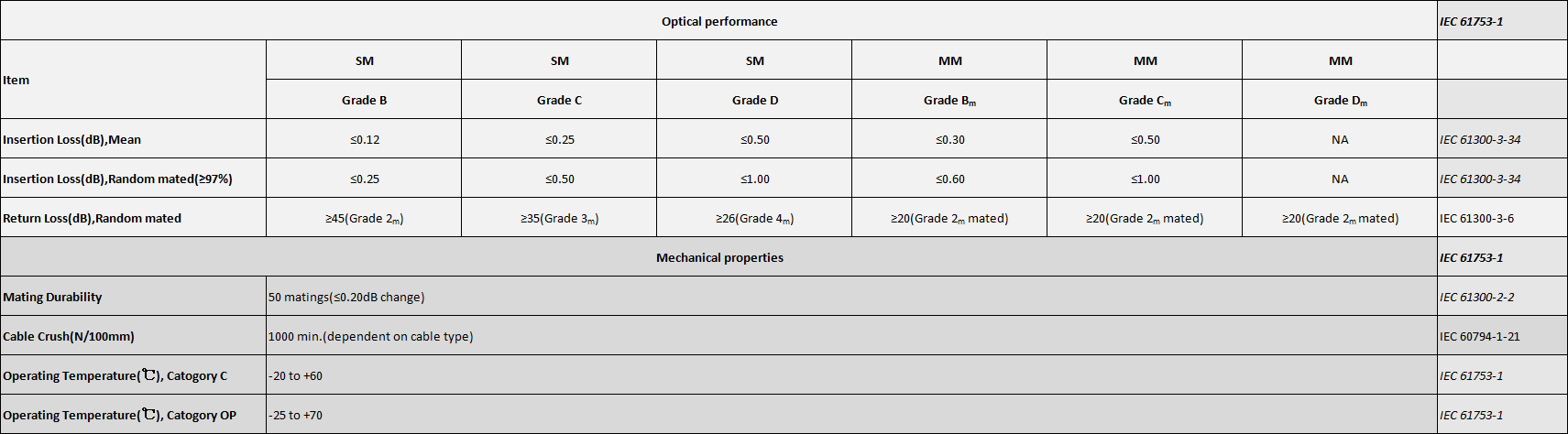

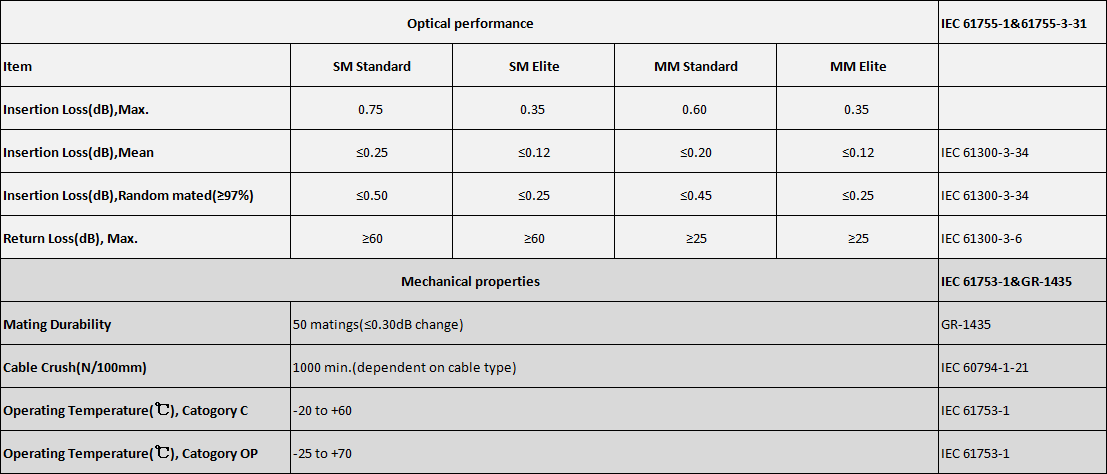

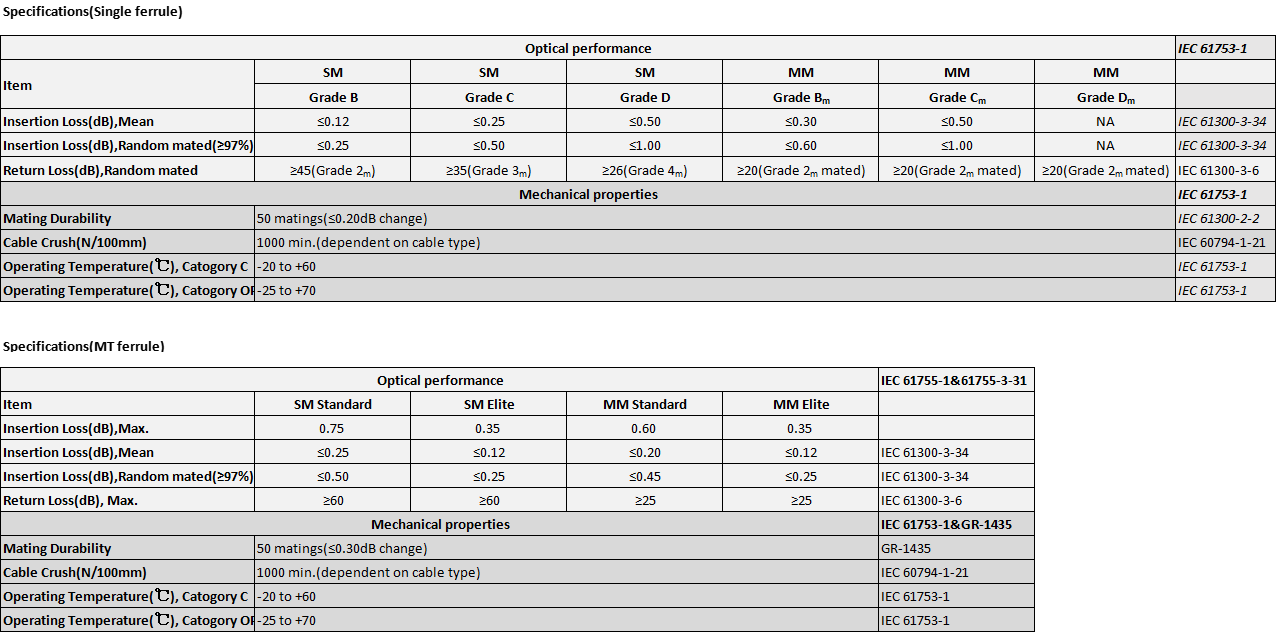

ADTEK MTP MPO fiber optic connector specification sheet displaying two detailed technical tables including Single ferrule specifications with optical performance data showing insertion loss mean values of less than or equal to 0.12dB for SM Grade B 0.25dB for Grade C 0.50dB for Grade D and MM Grade Bm 0.30dB Cm 0.50dB random mated insertion loss at 97 percent confidence return loss values of greater than or equal to 45dB for Grade 2m 35dB for Grade 3m 26dB for Grade 4m mechanical properties listing mating durability of 50 matings with less than 0.20dB change cable crush resistance of 1000 Newtons per 100mm operating temperature range of minus 20 to plus 60 degrees Celsius Category C and minus 25 to plus 70 degrees Celsius Category O per IEC standards and MT ferrule specifications with SM Standard Elite and MM Standard Elite grades showing insertion loss maximum values of 0.75dB 0.35dB 0.60dB 0.35dB respectively with corresponding mechanical property ratings

Configuring

Related Products
