Fiber Patch Panel_GPX51
ADTEK introduces a newly designed high-density optical fiber patch panel, aiming to simplify cable management solutions in data centers. The product features a streamlined structure without the need for complicated sliding trays, making it easier to operate. It incorporates a unique guide rail design, allowing the module box to lock securely upon insertion and easily unlock by pulling the handle, ensuring convenient operation. The rear part offers ample space for additional optical cable storage, while the specially designed anodized silver aluminum alloy front door enhances the visual experience. With its simple structure, user-friendly operation, and modular design, this patch panel significantly saves time and cost for operation and maintenance, making it an ideal choice for high-density cable management solutions in data centers.
Product
Fiber Patch Panel_GPX51

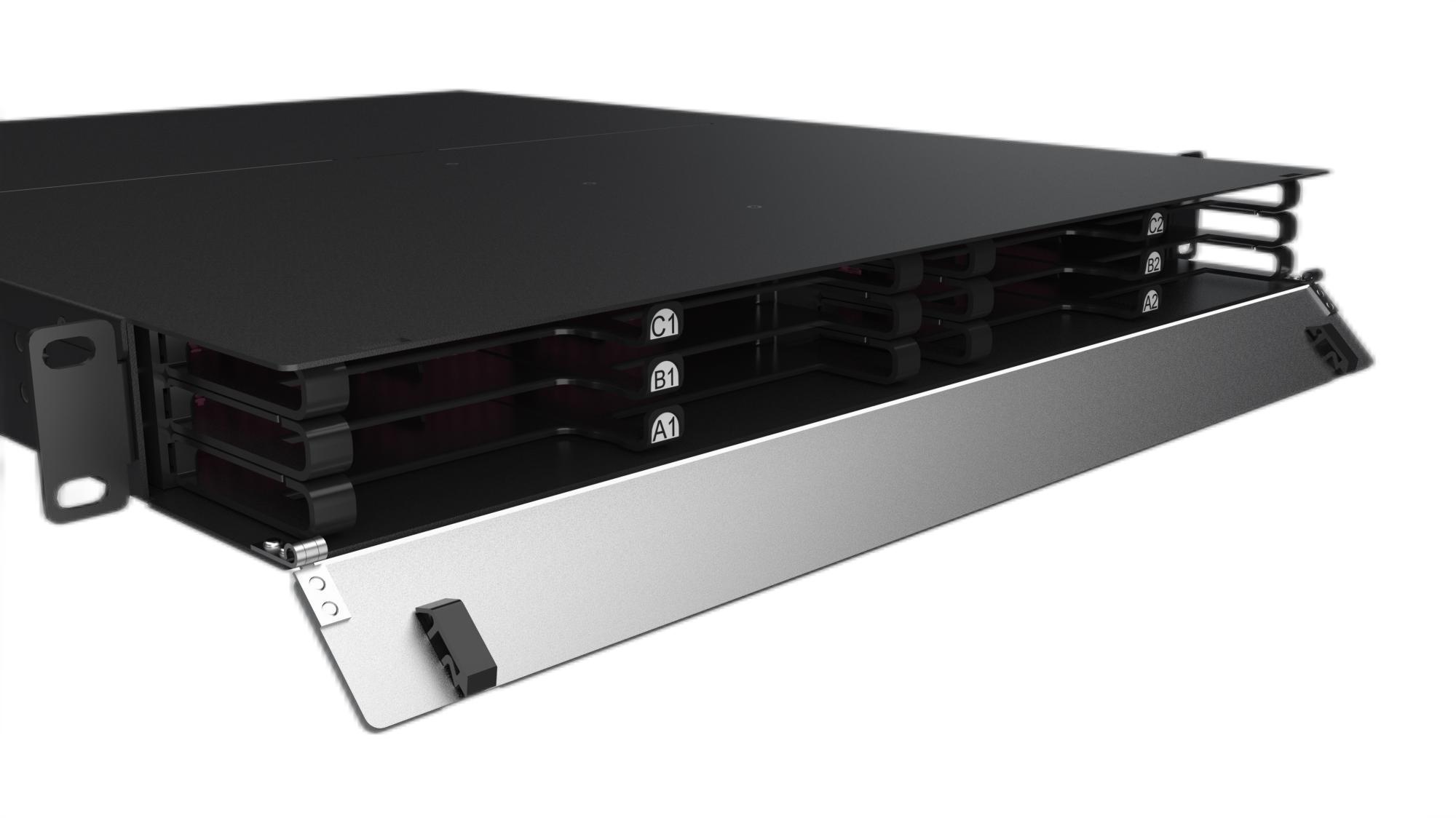

- High-density design saves space and cost: 1RU/144F(LC), 2RU/288F(LC), 4RU/576F(LC).
- Fits standard 19″ rack.
- Streamlined structure without the need for complicated sliding trays
- The rear part offers ample space for additional optical cable storage
- Modular design allows high flexibility and selectivity for future network growth.
- Sandblasted, anodized silver front doors for aesthetics.

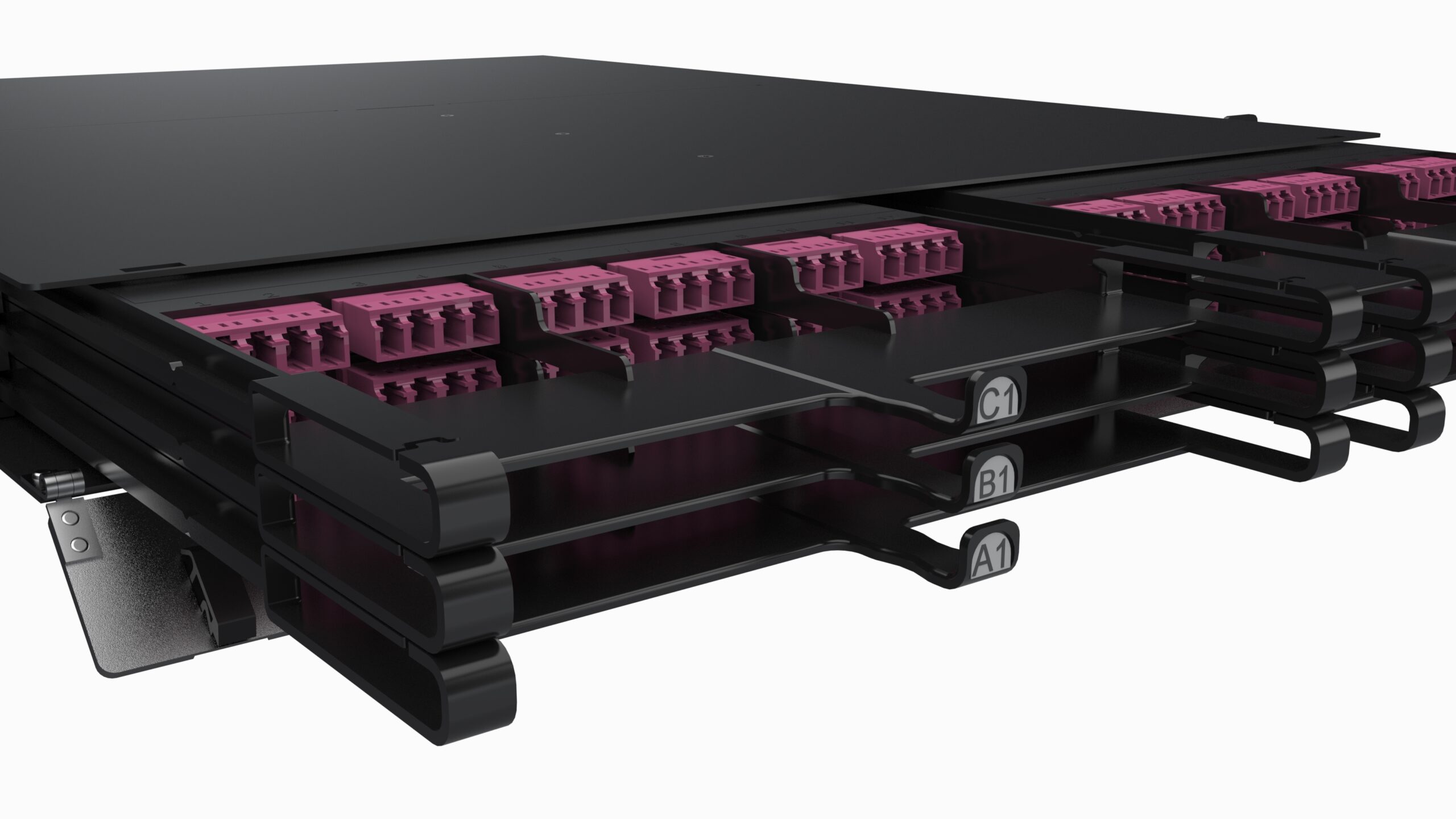

- Unique guide rails enable easy cassette lock and release.
- Front and rear doors open for convenient installation.
- Pre-terminated for plug-and-play, reducing deployment and maintenance costs.
Application Environment
Product
Application Environment
Fiber Patch Panel_GPX51
An optical fiber distribution frame facilitates seamless connection, distribution, and scheduling of optical fiber links, commonly deployed in data centers and computer rooms. It streamlines the process of linking fiber optic cables, enabling efficient communication between network devices and servers. With its capability to accommodate various connector types and speeds, the fiber distribution frame ensures network flexibility and scalability. Moreover, it plays a crucial role in managing fiber allocation and scheduling within large-scale data center environments, offering network administrators the ability to swiftly locate and adjust specific fiber connections as needed.
Specifications
Product
Specifications
Fiber Patch Panel_GPX51

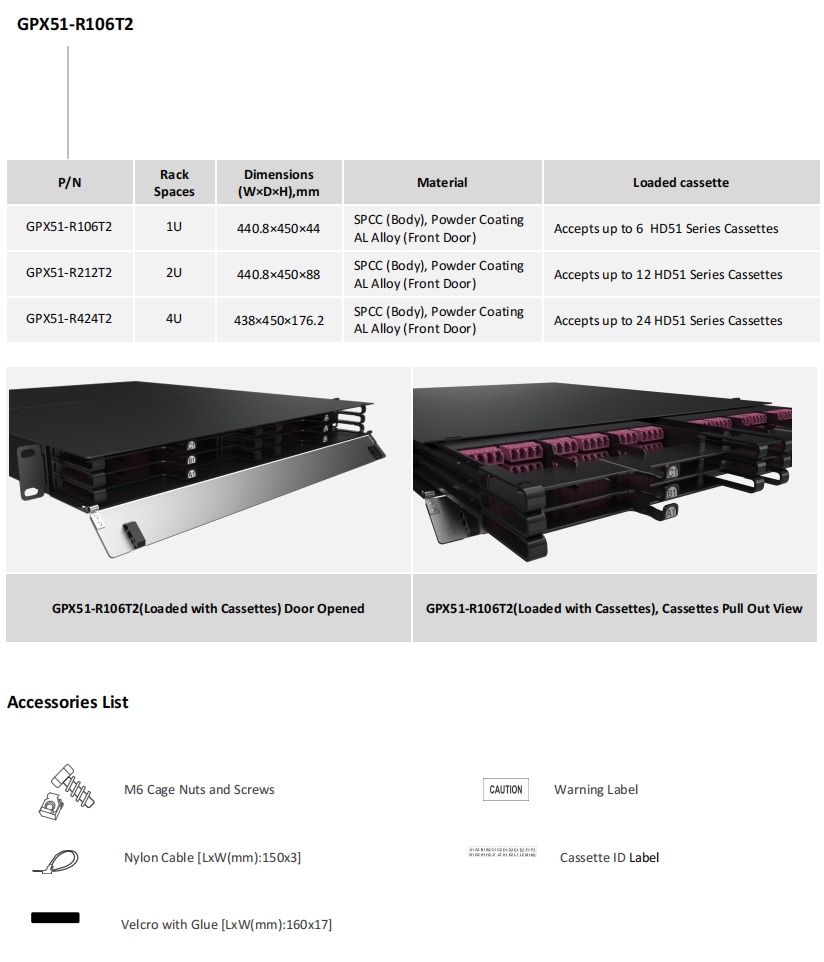

Fiber Patch Panel_GPX51 | ||||
P/N | Rack Spaces | Dimensions (W×D×H),mm | Material | Loaded cassette/adapter/adapter plate |
GPX51-R106T1 | 1U | 482×541.5×44 | SPCC (Body), Powder Coating AL Alloy (Front Door) | Accepts up to 6 GPX51 Series Cassettes |
GPX51-R212T1 | 2U | 482×541.5×88 | SPCC (Body), Powder Coating AL Alloy (Front Door) | Accepts up to 12 GPX51 Series Cassettes |
GPX51-R424T1 | 4U | 482×542.7×176.2 | SPCC (Body), Powder Coating AL Alloy (Front Door) | Accepts up to 24 GPX51 Series Cassettes |
Cassettes
Product
Cassettes
Fiber Patch Panel_GPX51

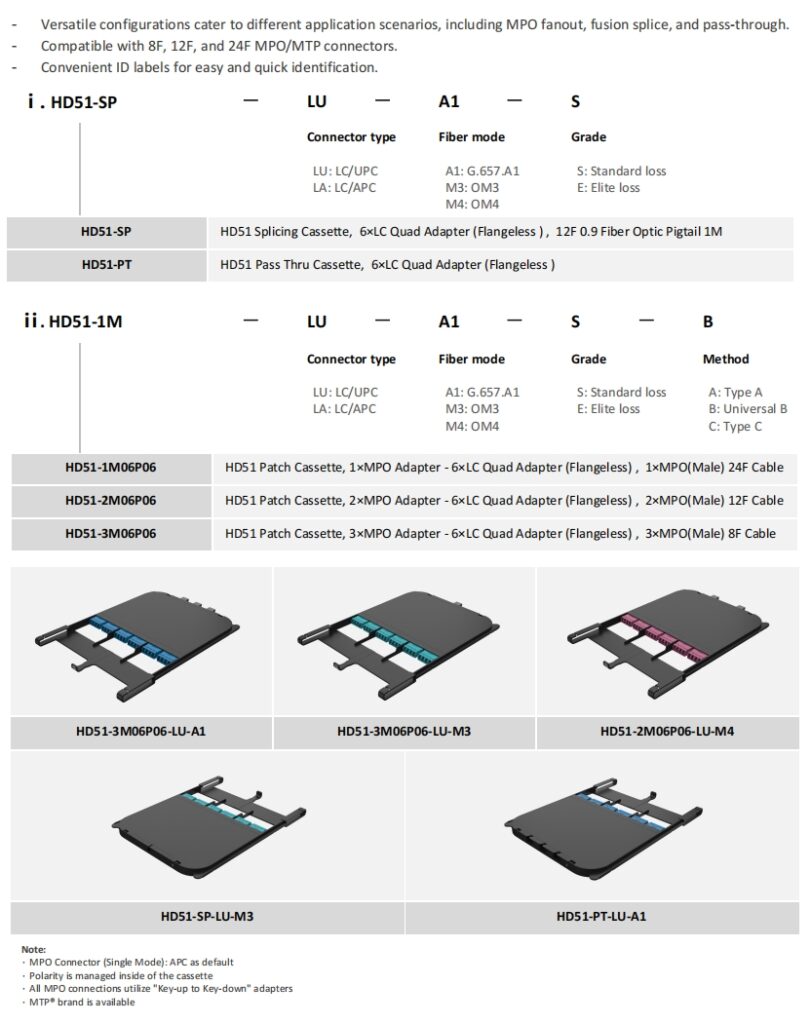

1、Versatile configurations cater to different application scenarios, including MPO fanout, fusion splice, and pass-through.
2、Compatible with 8F, 12F, and 24F MPO/MTP connectors.
3、Convenient ID labels for easy and quick identification.

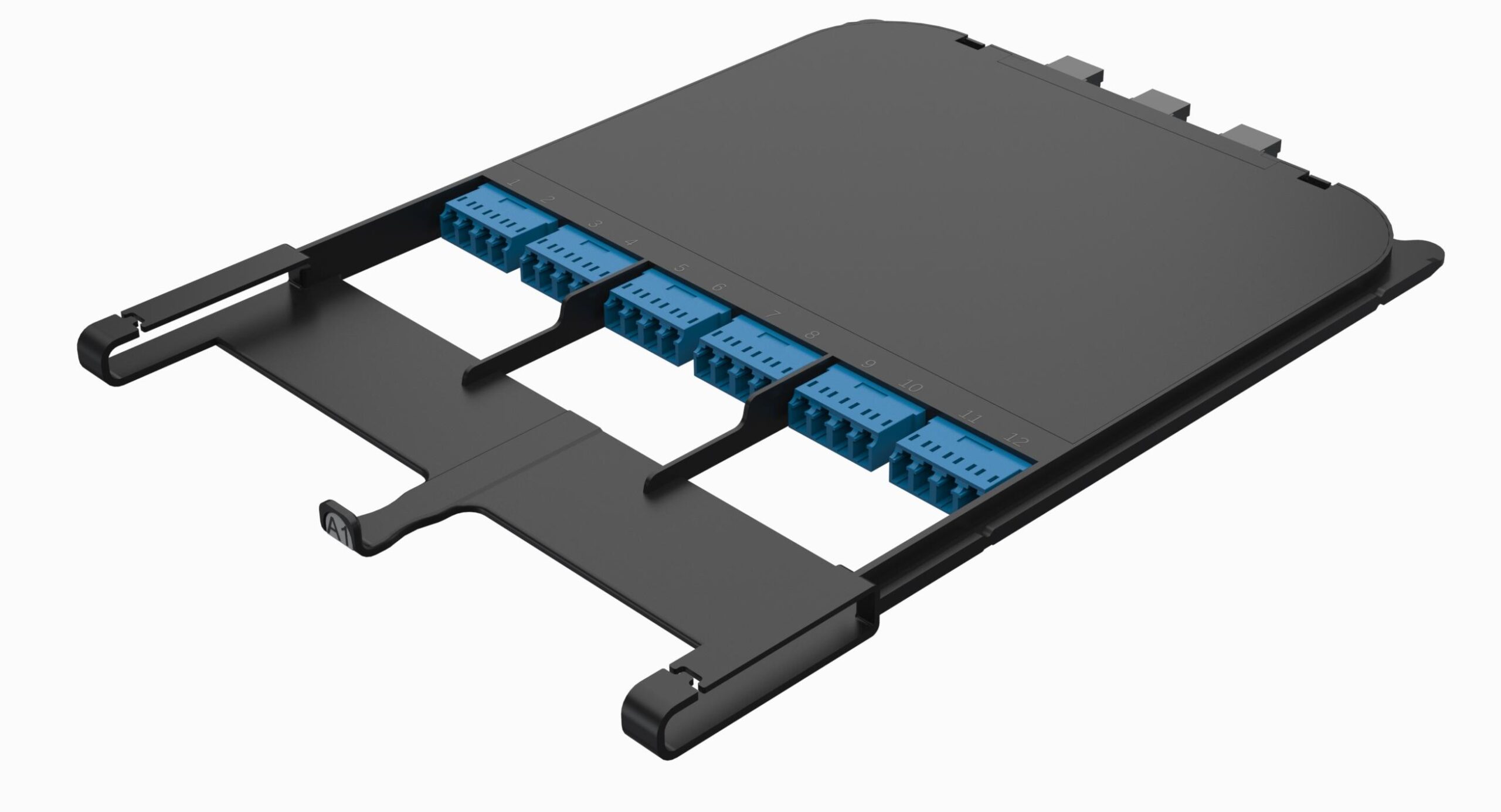

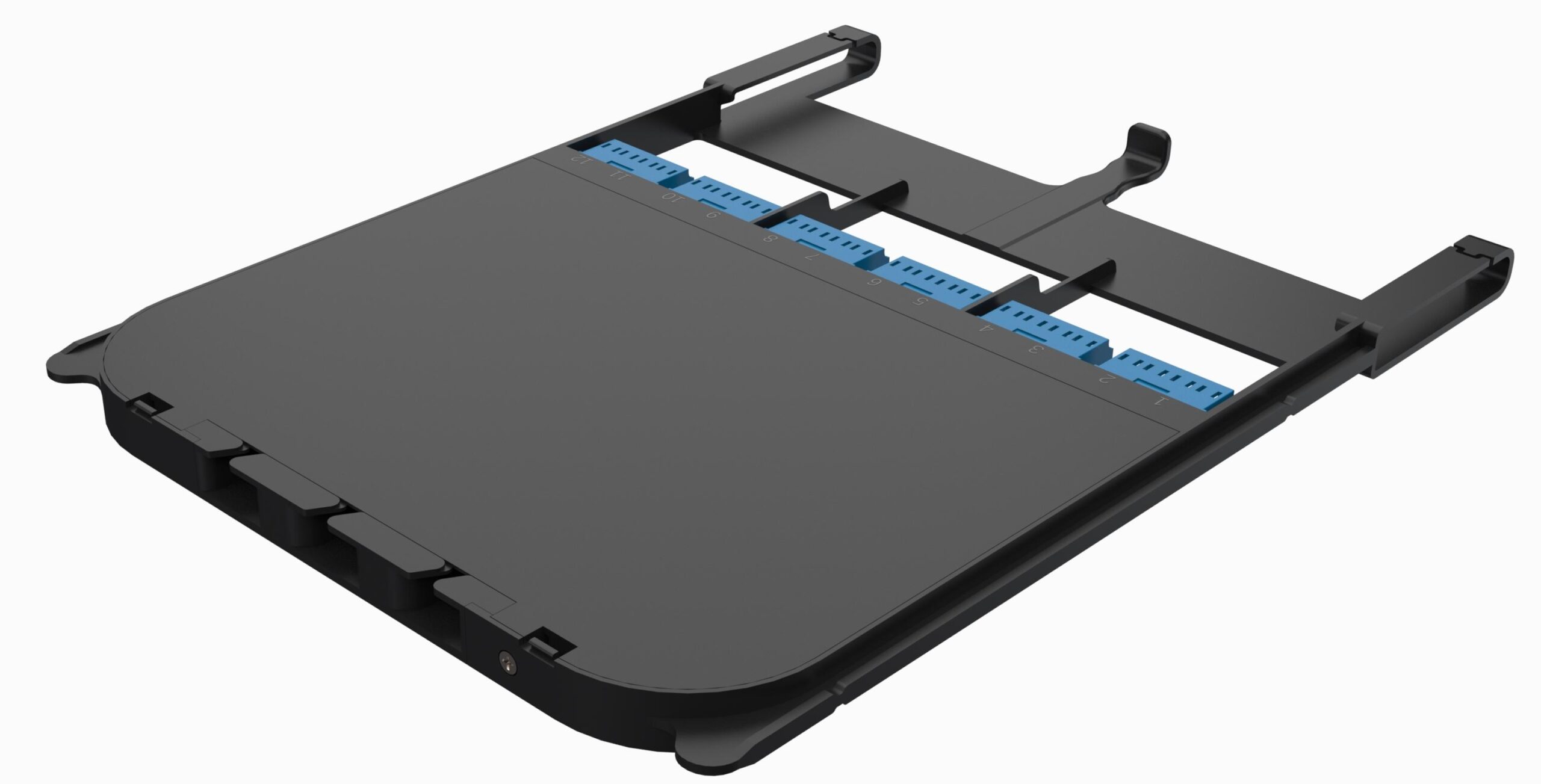

GPX51-SP
| ⅰ. GPX51-SP | LU | A1 | S |
| Connector type | Fiber mode | Grade | |
| LU: LC/UPC | A1: G.657.A1 | S: Standard loss | |
| LA: LC/APC | M3: OM3 | E: Elite loss | |
| MBK: MPO/Black (Up-Down) | M4: OM4 | ||
| MGY: MPO/Grey (Up-Up) | |||
| M16BK: MPO-16/Black (Up-Down) |
| GPX51-SP | GPX51 Splicing Cassette, 6×LC Quad Adapter (Flangeless ) , 12F 0.9 Fiber Optic Pigtail 1M | ||
| GPX51-PT | GPX51 Pass Thru Cassette, 6×LC Quad Adapter (Flangeless ) or 6×MPO Duplex Adapter(Flangeless ) | ||
GPX51-1M
| ⅱ. GPX51-1M | LU | A1 | S | B |
| Connector type | Fiber mode | Grade | Method | |
| LU: LC/UPC | A1: G.657.A1 | S: Standard loss | A: Type A | |
| LA: LC/APC | M3: OM3 | E: Elite loss | B: Universal B | |
| M4: OM4 | C: Type C |
| GPX51-1M | GPX51 Patch Cassette, 1×MPO Adapter – 6×LC Quad Adapter (Flangeless) , 1×MPO(Male) 24F Cable | ||
| GPX51-2M | GPX51 Patch Cassette, 2×MPO Adapter – 6×LC Quad Adapter (Flangeless) , 2×MPO(Male) 12F Cable | ||
| GPX51-3M | GPX51 Patch Cassette, 3×MPO Adapter – 6×LC Quad Adapter (Flangeless) , 3×MPO(Male) 8F Cable | ||
Patch Panel
 |  |  | |

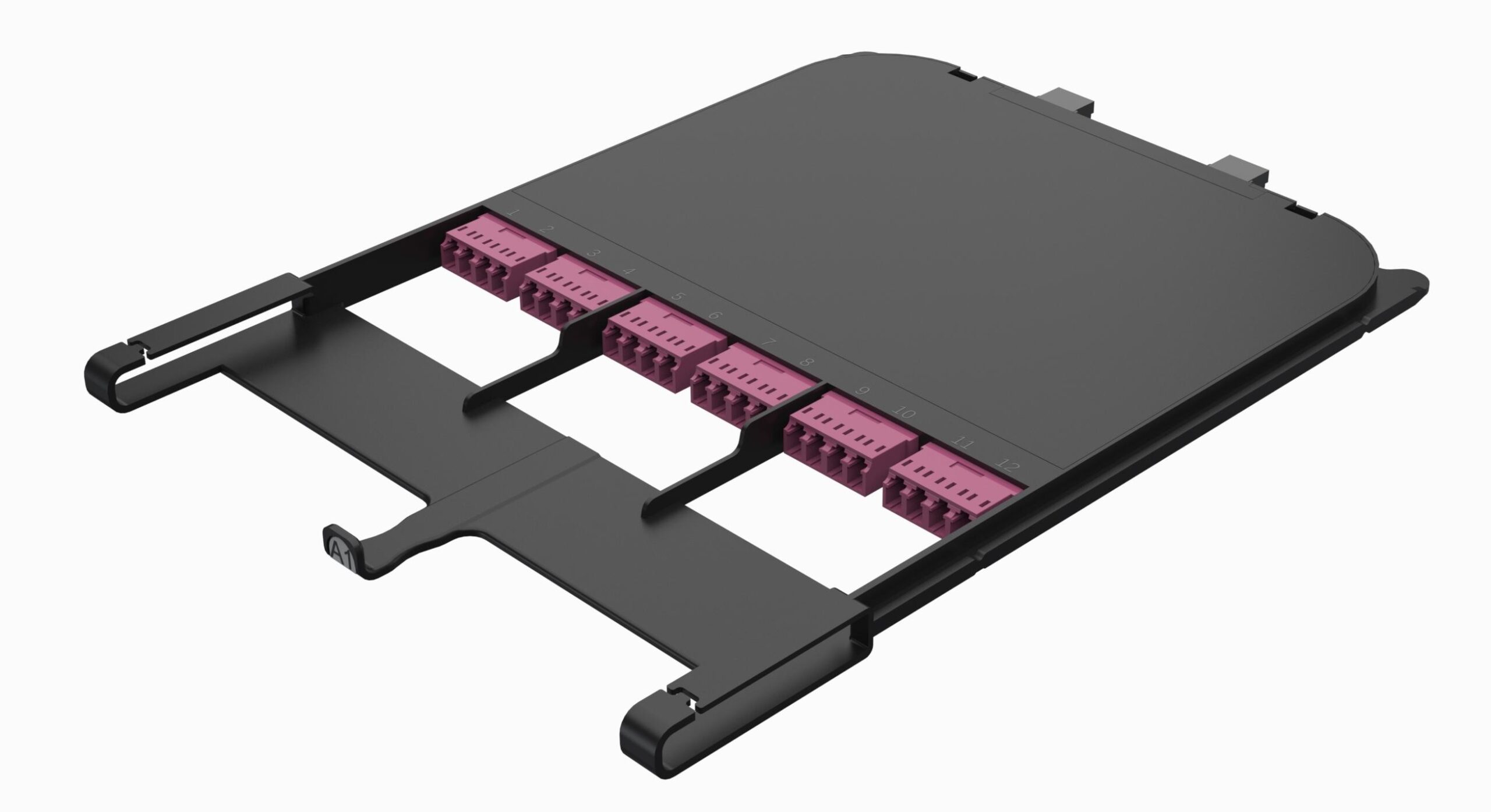

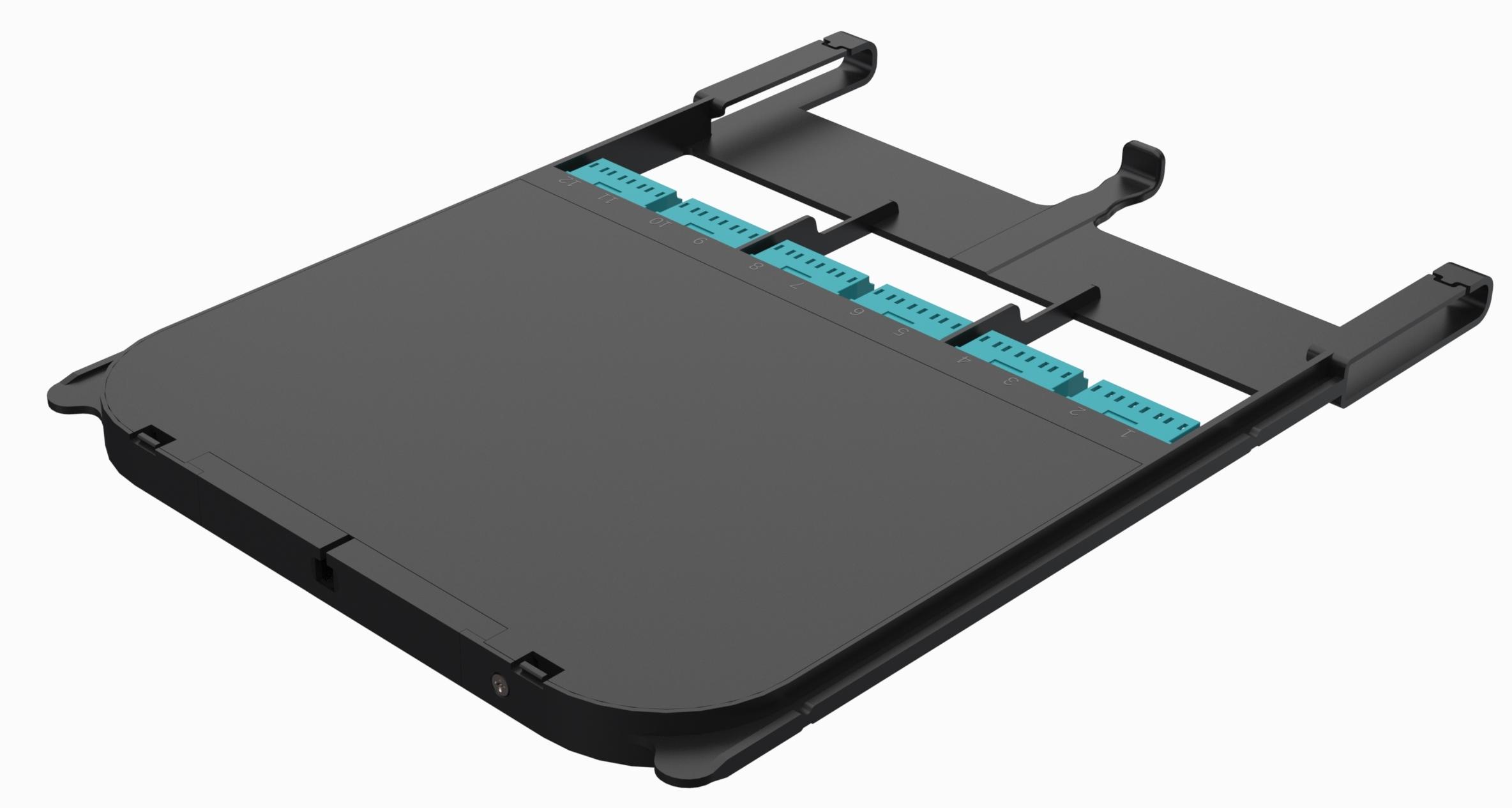

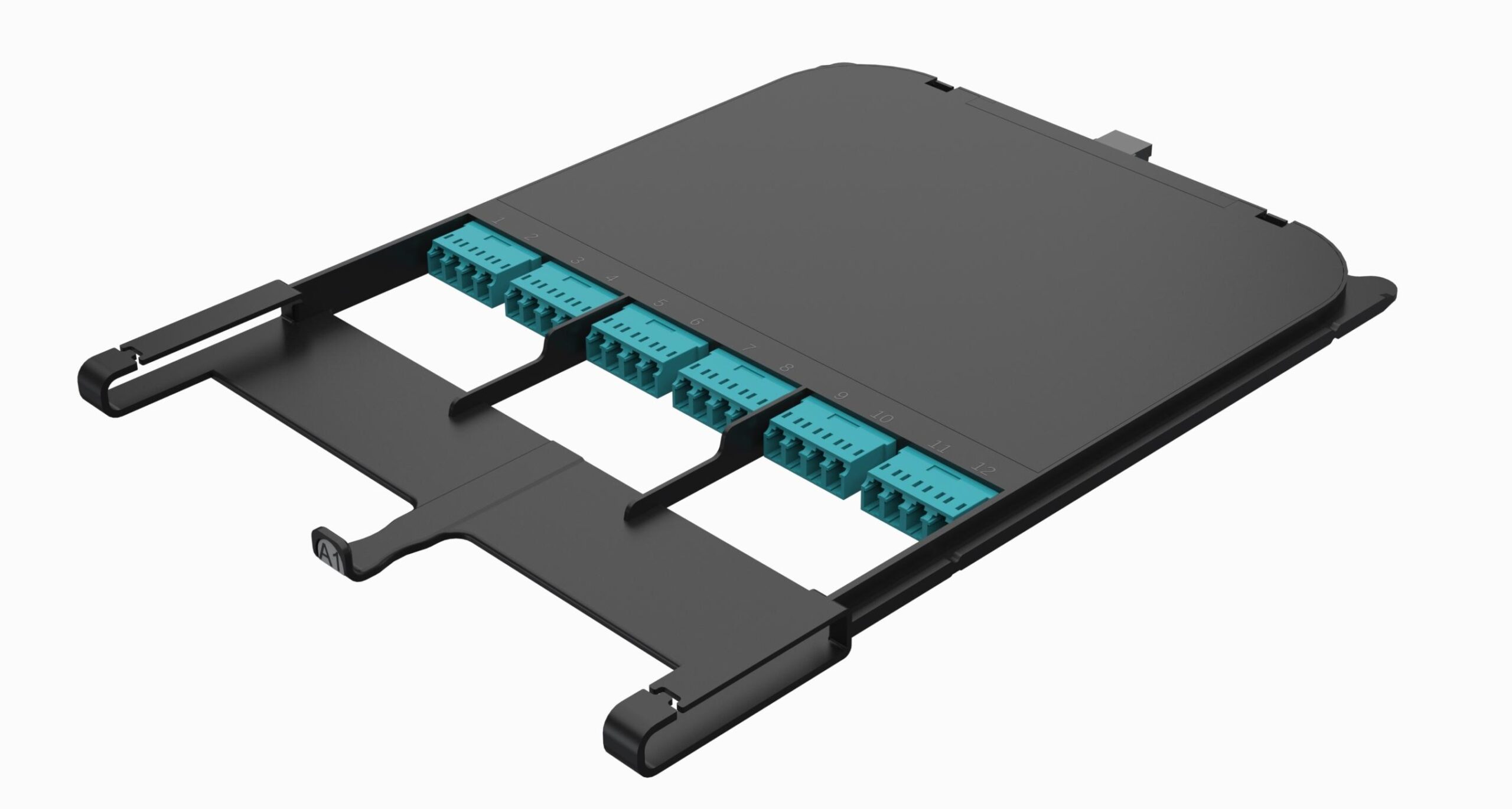

GPX51-3M-LU-A1 | GPX51-1M-LU-M3 | GPX51-2M-LU-M4 | |
 |  |  | |
GPX51-SP-LU-M3 | GPX51-PT-LU-A1 | GPX51-PT-MBK | |
Note:
MPO Connector (Single Mode): APC as default
Polarity is managed inside of the cassette
MTP® brand is available
