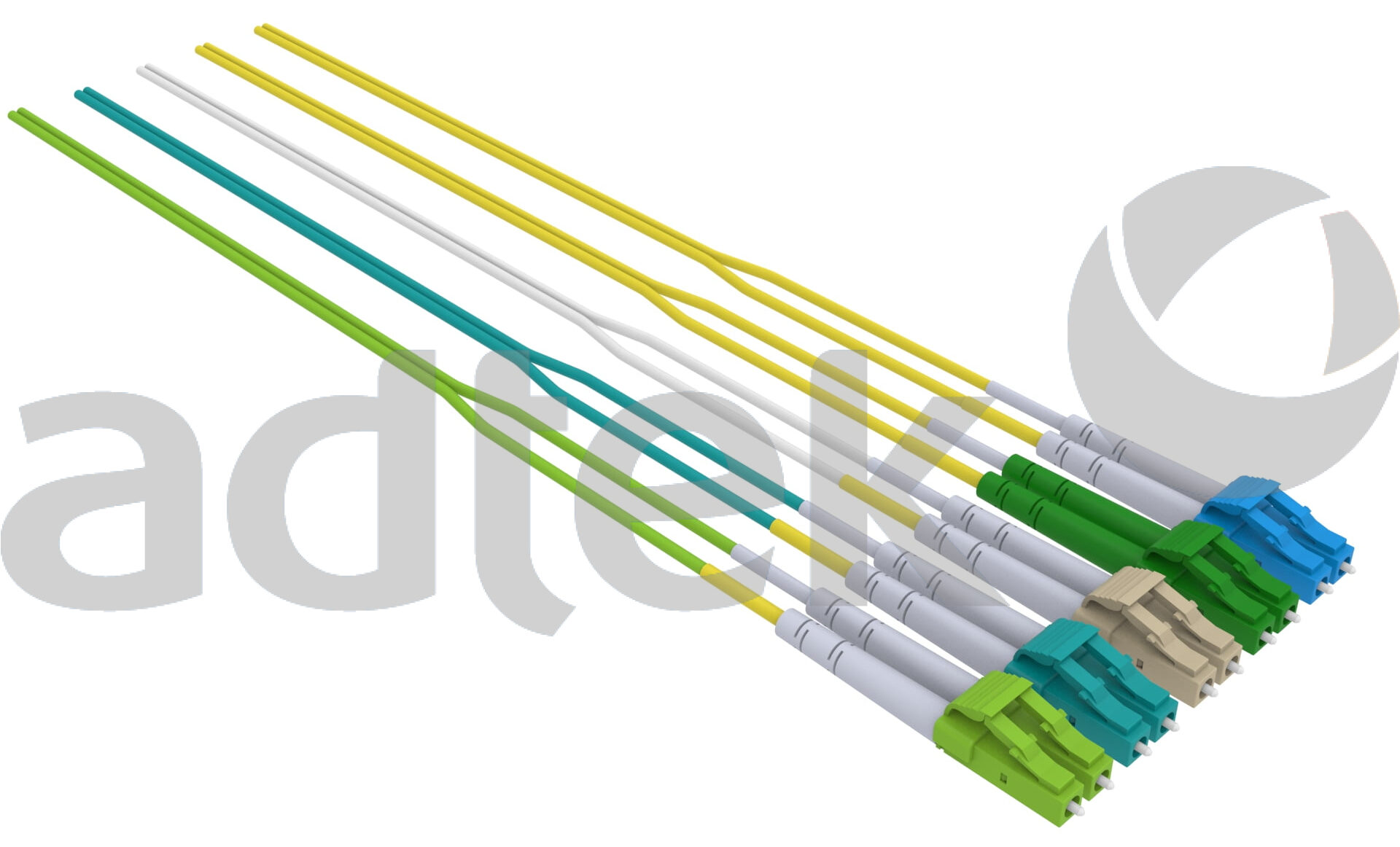

Duplex patch cord(Jumper)
The duplex(Zipcord and Round) patch cord(Jumper) provided by Adtek are suitable for telecom,DC(Data Center), Datacom,FTTx and CATV networks,FM(fiber management),such as active equipment, passive optical devices and cross-connects in application. Compared with OM1/OM2, OM3, OM4, and OM5 optical fibers are suitable for high bandwidth, short to moderate-distance communication, and OS2(G.652.D/G.657.A1/G.657.A2/G.657.B2/G.657.B3)fiber types are available for long-distance, high-performance communication systems.
Features
- Conform to(parts Exceed)IEC performance requirements
- Different fiber modes are available
- Different assemblies types are available,and more optinal under Grade B/Grade C/Grade D for competitive cost
- Short boots of housing kits are available
- PVC, LSZH are both optinal
- OFNR, OFNP, CPR(B1ca/B2ca/Cca/Dca/Eca) are available
- Materials compliant to RoHS2
Related Product News
The duplex(Zipcord and Round) patch cord(Jumper) provided by Adtek are suitable for telecom,DC(Data Center), Datacom,FTTx and CATV networks,FM(fiber management),such as active equipment, passive optical devices and cross-connects in application. Compared with OM1/OM2, OM3, OM4, and OM5 optical fibers are suitable for high bandwidth, short to moderate-distance communication, and OS2(G.652.D/G.657.A1/G.657.A2/G.657.B2/G.657.B3)fiber types are available for long-distance, high-performance communication systems.
MPO/MTP® Fiber Optic Jumper Installation Tips: Ensuring Optimal Performance
This article provides essential tips for installing MPO/MTP® fiber optic jumpers, covering key points such as selecting the right jumper, fiber management, cleaning assemblies , verifying polarity, ensuring compatibility, securing connections, and testing performance to ensure optimal network performance.
Application Environment
Datacom
DC(Data Center)
LAN and WAN
FTTX
CATV

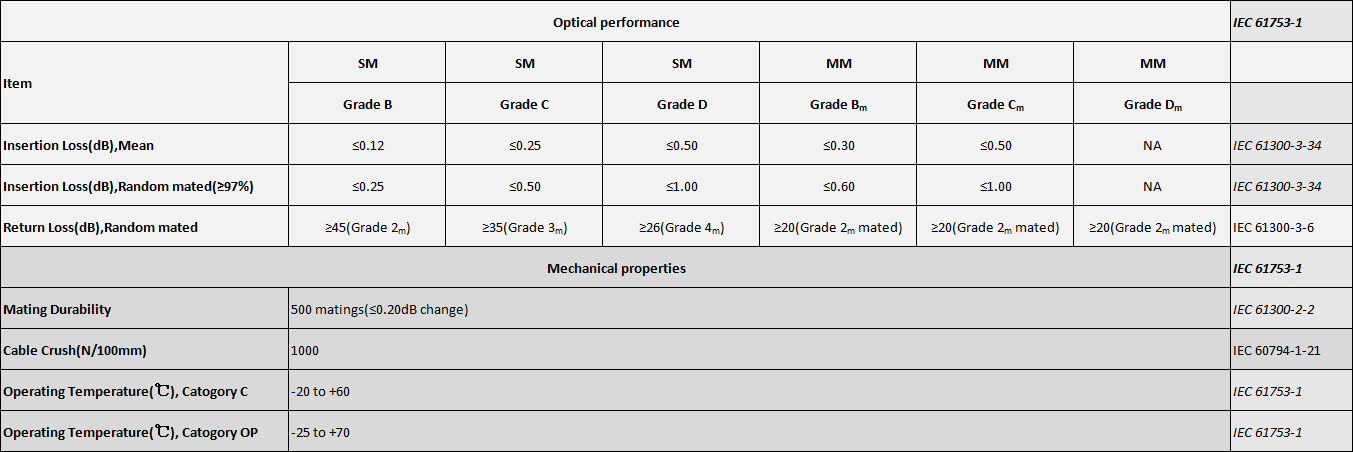

Specifications
Configuring
