Fiber Patch Panel_GPX31

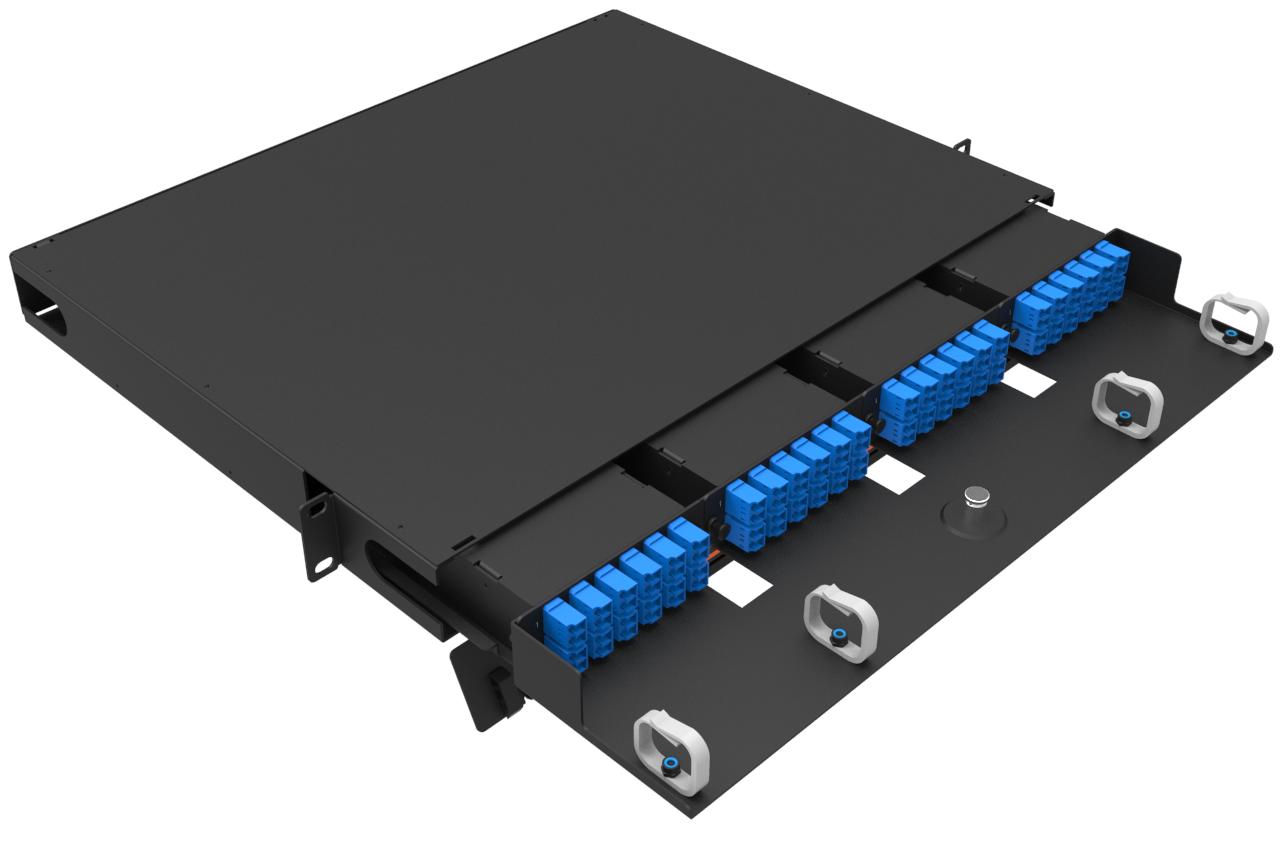

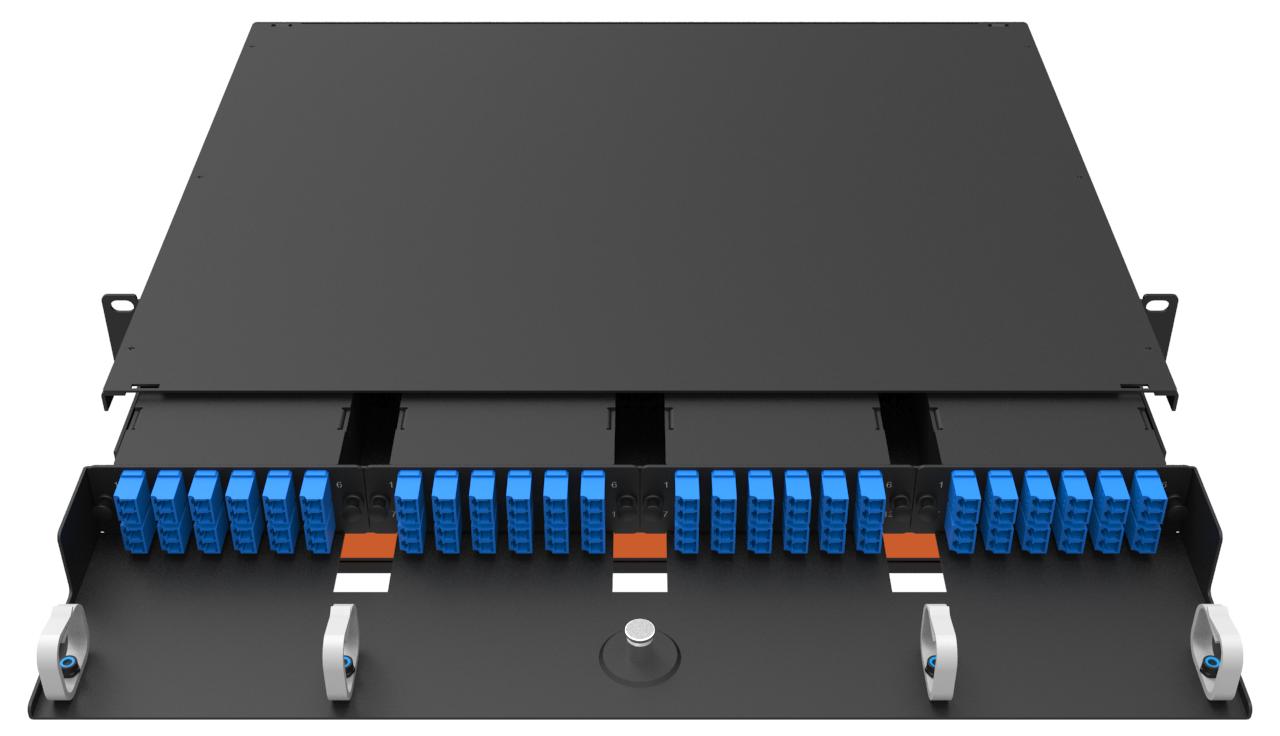

ADTEK provides slide rail fiber optic patch panel with metal slide-way pulling design,easy to pull,self-locking function by smoothning,wiring rack top cover can be removed,the plate is designed to be opened and made of transparent acrylic,both sides of the box are equipped with outlets and protection of the coil fiber;48/96 core wiring effectively saves wiring space and reduces wiring costs; to provide the best user experience by simplifying installation and maintenance,convenient access and reliable fiber optic performance. GPX31 wiring frame meets 1U/96, 2U/192, 3U/288, 4U/384 core wiring,effectively save wiring space and reduce wiring costs.Meanwhile, our solution adopts the latest parallel optical technology to support high-speed 40G/100G Ethernet.
Product
Features
Product
Fiber Patch Panel_GPX31
- Modular design provides high flexibility and selectivity for future network growth
- High density wiring design saves wiring space and reduces wiring cost
- Pre-terminated, plug-and-play, to reduce on-site deployment costs
- Smooth and flexible slide design operation enables self-locking function
- The plate can be opened and the cover plate can be disassembled for convenient installation and maintenance
- Supports high speed IEEE802.3ba and 40G/100G speed data Ethernet applications
Application Environment
Product
Application Environment
Fiber Patch Panel_GPX31
- Data Centers
- Telecommunications Networks
- Enterprise Networks
Specifications
Product
Specifications
Fiber Patch Panel_GPX31
Fiber Patch Panel_GPX31, Sliding | ||||
P/N | Rack Spaces | Dimensions (W×D×H),mm | Material | Loaded cassette/adapter/adapter plate |
GPX31-R10404 | 1U | 482.6×353.2×43.8 | SPCC, Powder Coating | Accepts up to 4 HD Cassettes |
Order Guide
Product information
Order Guide
Fiber Patch Panel_GPX31
Ⅰ. Fiber Patch Panel - Loaded Cassette
| GPX31-R10404 |

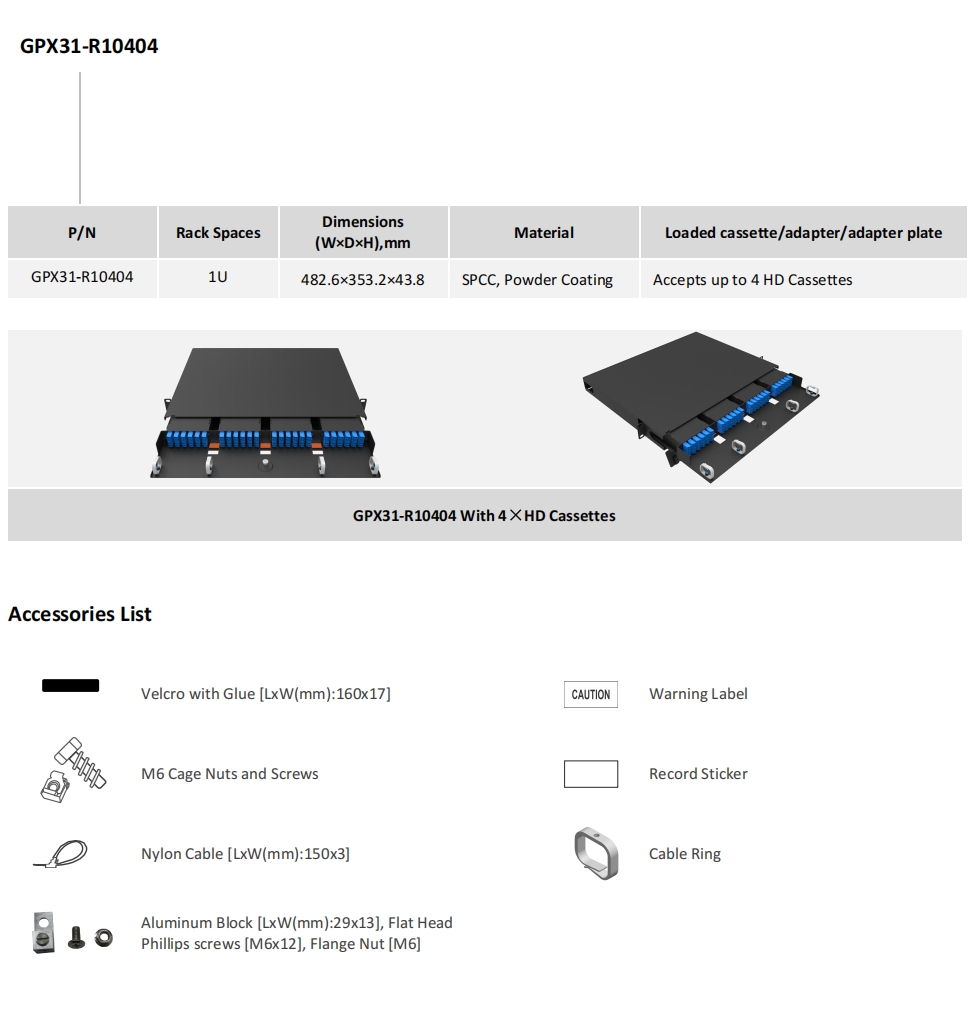

| P/N | Rack Spaces | Dimensions (W×D×H),mm | Material | Loaded cassette/adapter/adapter plate |
| GPX31-R10404 | 1U | 482.6×353.2×43.8 | SPCC, Powder Coating | Accepts up to 4 HD Cassettes |
  |
| GPX31-R10404 With 4×HD Cassettes |

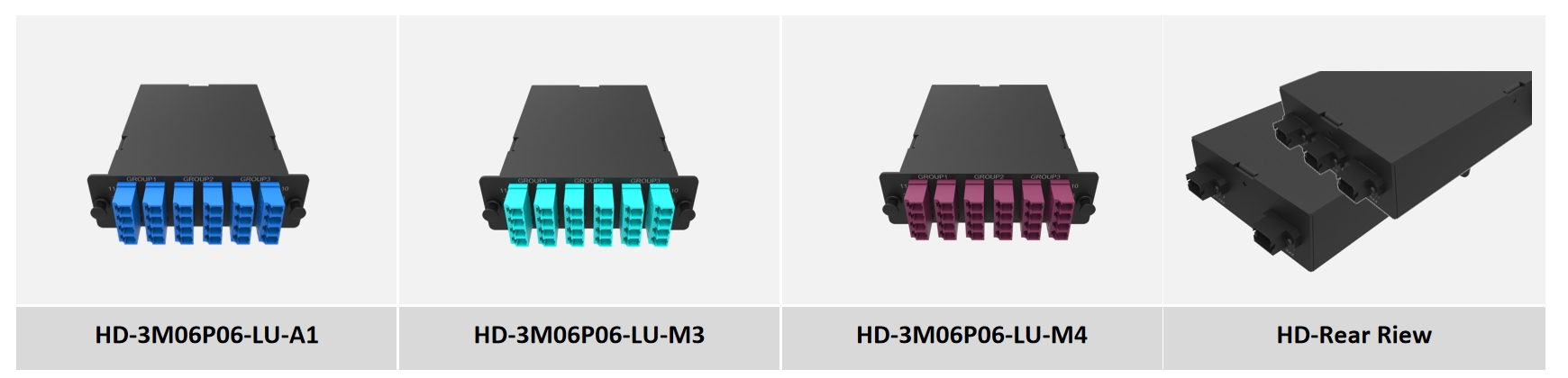

Ⅱ. MPO Cassettes

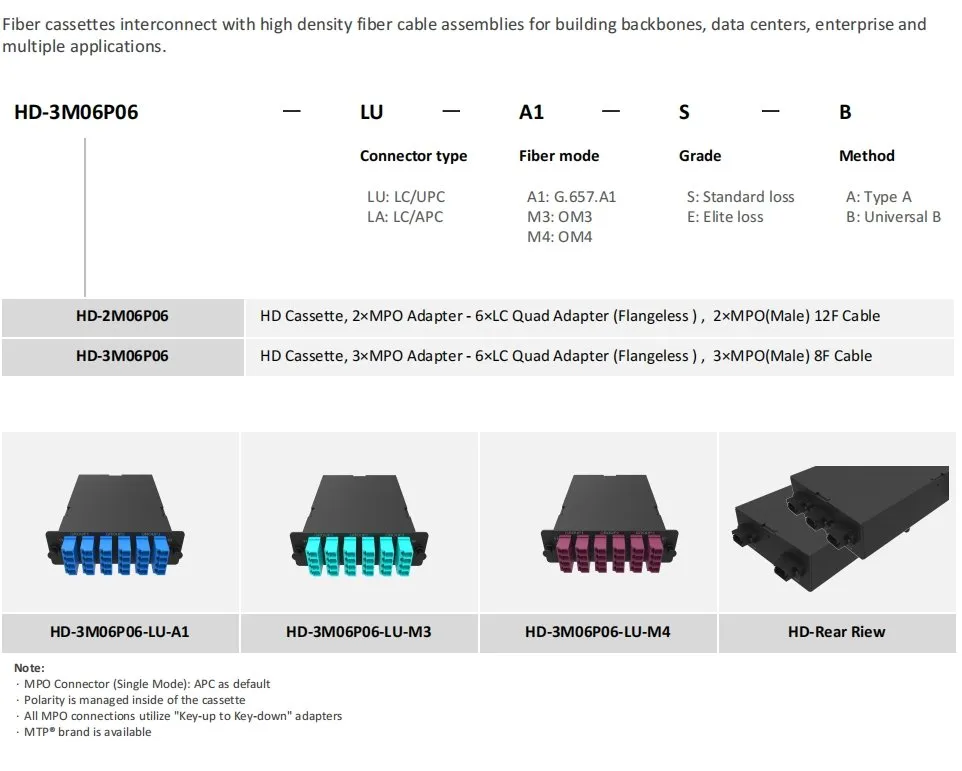

Fiber cassettes interconnect with high density fiber cable assemblies for building backbones, data centers, enterprise and multiple applications.
| HD-3M06P06 | LU | A1 | S | B |
| Connector type | Fiber mode | Grade | Method | |
| LU: LC/UPC | A1: G.657.A1 | S: Standard loss | A: Type A | |
| LA: LC/APC | M3: OM3 | E: Elite loss | B: Universal B | |
| M4: OM4 | ||||
| HD-2M06P06 | HD Cassette, 2×MPO Adapter – 6×LC Quad Adapter (Flangeless ) , 2×MPO(Male) 12F Cable | |||
| HD-3M06P06 | HD Cassette, 3×MPO Adapter – 6×LC Quad Adapter (Flangeless ) , 3×MPO(Male) 8F Cable | |||
Note:
- MPO Connector (Single Mode): APC as default
- Polarity is managed inside of the cassette
- All MPO connections utilize “Key-up to Key-down” adapters
- MTP® brand is available
