New Intelligent Interconnection Management System For Data center

Intelligent Platform

Full routing management system

Intelligent sensing

Passive wireless, One-key bright light positioning

Intelligent Connectivity

Multi-terminal collaboration

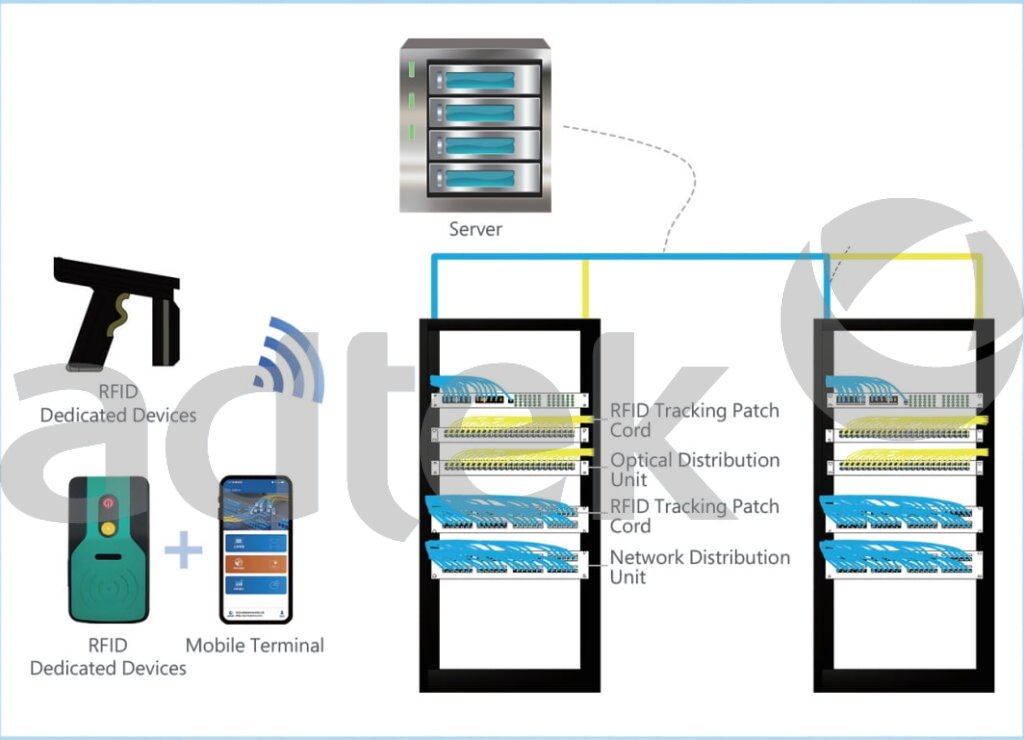

System Diagram

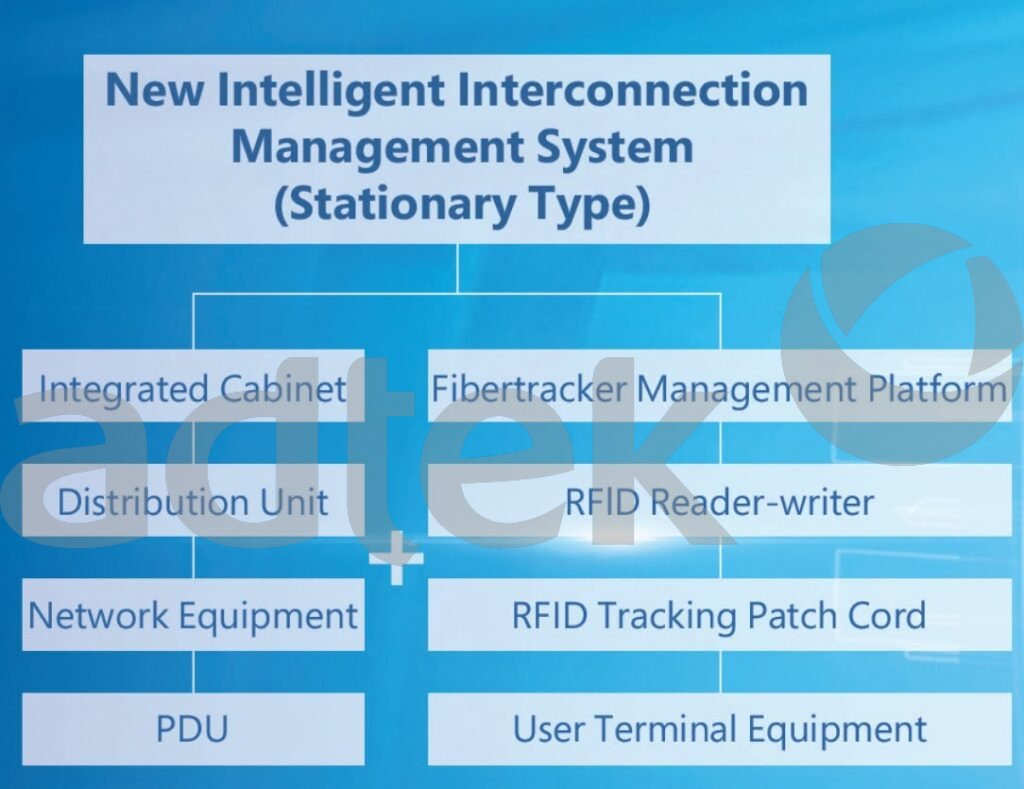

New Intelligent Interconnection Management System(Stationary Type)

Integrated Cabinet

Distribution Unit

Network Equipment

PDU

Fibertracker Management Platform

RFID Reader-writer

RFlD Tracking Patch Cord

User Terminal Equipment

ADTEK Fiber Optic Tracing Solutions product image showing fiber optic cable identification or tracking system component on transparent background with checkered pattern, 1084x835 pixel resolution, data center fiber management solution photo

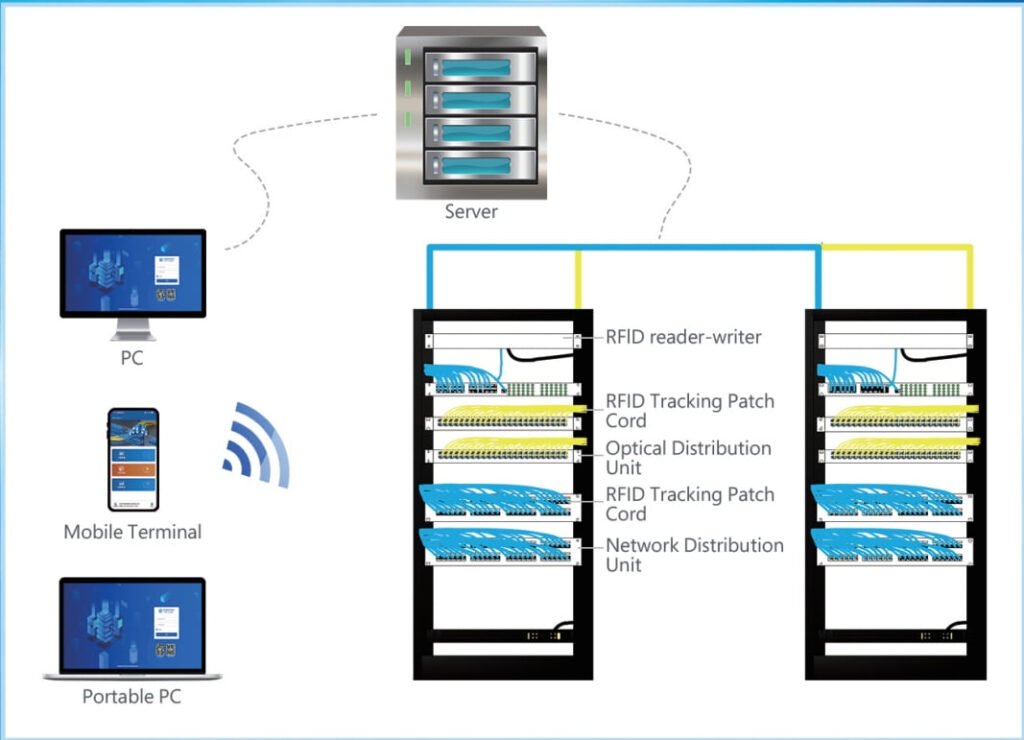

Rack-mounted reader/writer, mounted in a cabinet,connected to a personal device for Mounting Rack and Fiber tracking operations.

ADTEK Fiber Optic Tracing Solutions product image on transparent checkered background, 1067x771 pixel resolution, fiber cable identification or tracking system component photo

New Intelligent Interconnection Management System(Movable Type)

Integrated Cabinet

Distribution Unit

Fibertracker Management Platform

RFlD Dedicated Equipment

RFlD Tracking Patch Cord

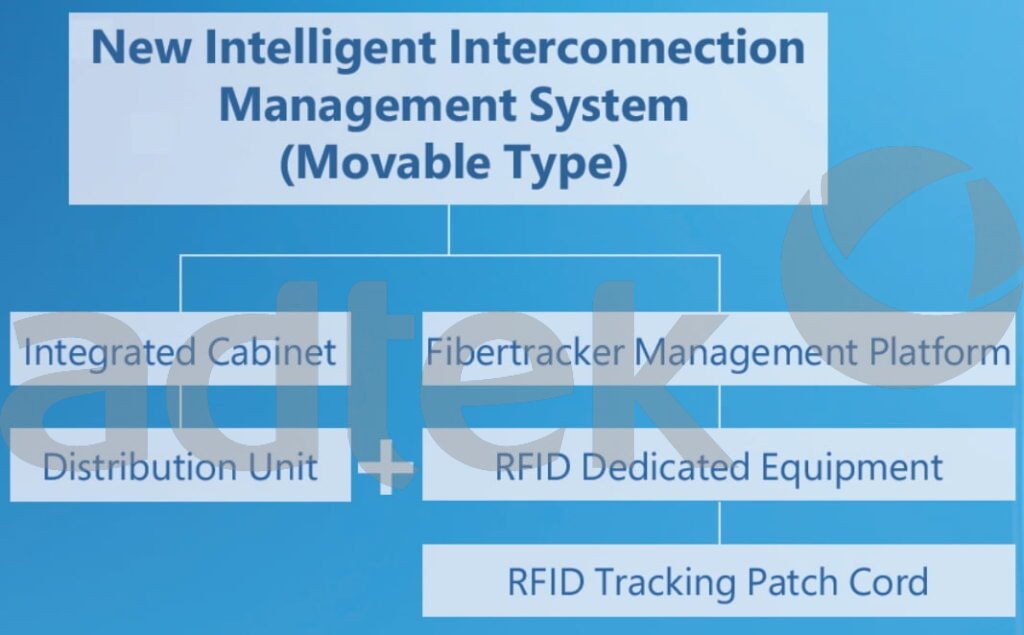

ADTEK New Intelligent Interconnection Management System Movable Type product architecture diagram on blue gradient background showing 2x2 grid of four core components Integrated Cabinet top-left Fibertracker Management Platform top-right Distribution Unit bottom-left RFID Dedicated Equipment bottom-right with RFID Tracking Patch Cord at center bottom and adtek watermark overlay

Portable all-in-one machine, no need to install, through the RFlD device for Mounting Rack and Fiber tracking operations.

System supporting Products

ADTEK provide a new type of inteigent interconnection management system, included RfiD tracking tube or label, All types of patch cord, RfiD reader/writer, RflD dedicated devices(handheld device), High density distribution unit, High density integrated cabinet, Adapter, Keystone jack.

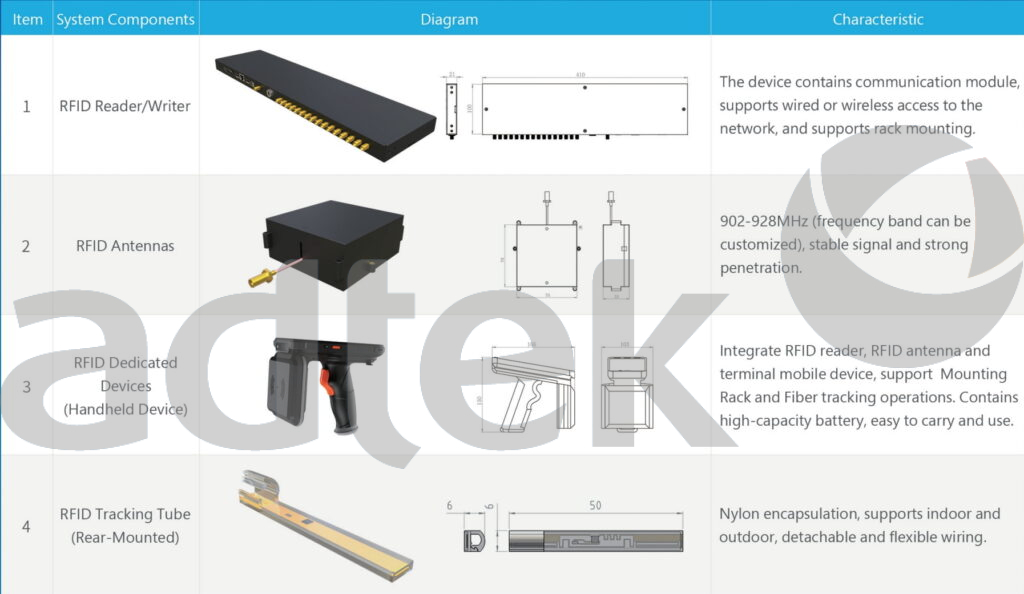

Item

System Components

Diagram

Characteristic

1

RFID Reader/Writer

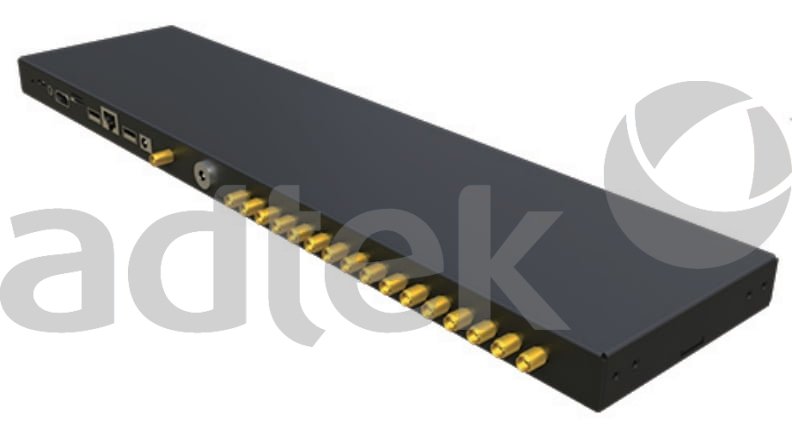

ADTEK Fiber Optic Tracing Solutions long black rectangular multi-port device chassis or RFID reader enclosure featuring row of gold-colored FC SC style fiber optic connector ports along front edge, power interface and indicator lights on rear side, white background with large gray adtek logo watermark, 792x427 pixel resolution

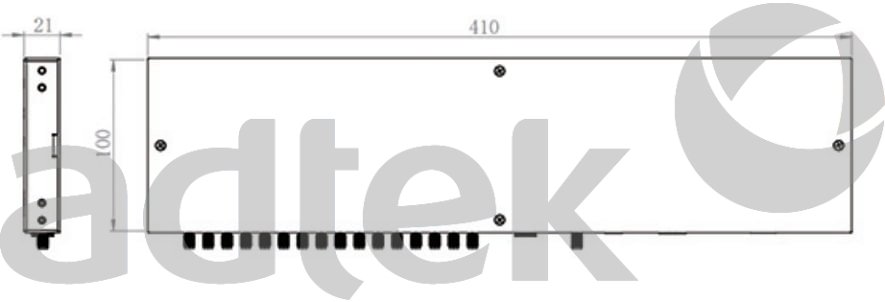

ADTEK Fiber Optic Tracing Solutions device or cabinet technical engineering dimension drawing showing left side end-face cross-section view with width 21mm height 100mm displaying multiple circular ports or interfaces plus main rectangular housing body with length 410mm bottom mounting holes connector positions line drawing style on white background with large gray adtek watermark overlay

The device contains communication module,supports wired or wireless access to thenetwork, and supports rack mounting

2

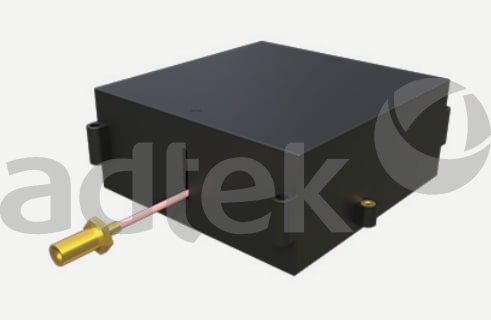

RFlD Antennas

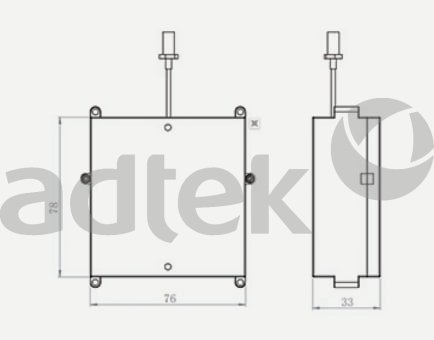

ADTEK Fiber Optic Tracing Solutions RFID reader or electronic device technical engineering dimension drawing showing front view with rectangular housing dimensions 76x76mm with antenna probe on top plus side view with width 33mm showing body thickness, line drawing style on white background with large gray adtek watermark overlay, 434x340 pixel resolution

902-928MHz (frequency band can becustomized), stable signal and strong penetration.

3

RFID Dedicated Devices
(Handheld Device)

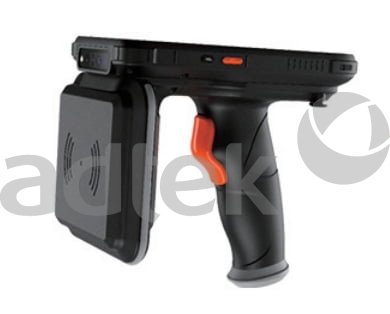

ADTEK Fiber Optic Tracing Solutions product component image on transparent checkered background, 390x314 pixel resolution, fiber cable identification or tracking system hardware photo

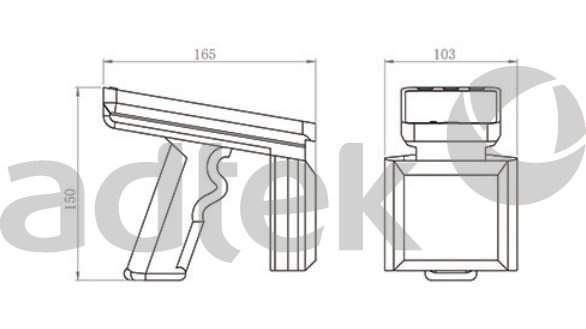

ADTEK Fiber Optic Tracing Solutions RFID handheld reader scanner device technical engineering drawing showing side view with dimensions 165x150mm displaying handle trigger and top scanning window plus front view with height 103mm showing rectangular body and top module, line drawing style on white background with large gray adtek watermark overlay

Integrate RFlD reader, RFlD antenna and terminal mobile device, support Mounting Rack and Fiber tracking operations. Contains high-capacity battery, easy to carry and use.

4

RFID Tracking Tube
(Rear-Mounted)

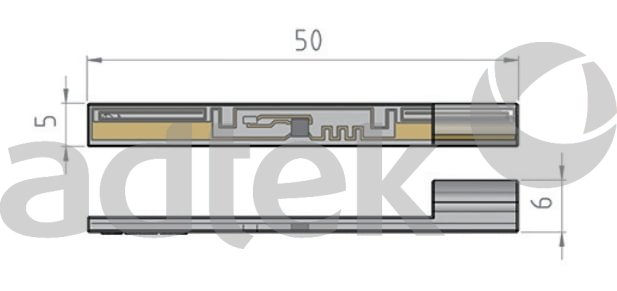

ADTEK Fiber Optic Tracing Solutions RFID tracking tube or label component technical dimension engineering drawing showing long rectangular part with width 6mm height 9mm total length 50mm internal layered cross-section structure visible through transparent housing, large gray adtek logo watermark on white background, 684x256 pixel resolution

Nylon encapsulation, supports indoor and outdoor, detachable and flexible wiring

5

RFlD Tracking Tube
(Pre-mounted)

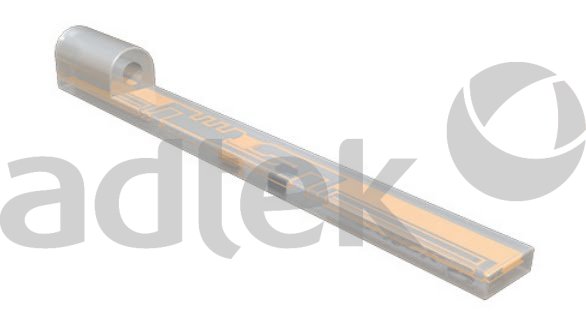

ADTEK Fiber Optic Tracing Solutions long cylindrical RFID tracking tube or label component with transparent semi-transparent casing showing orange gold internal circuitry chip structure, circular end cap on one end, white background with large gray adtek logo watermark, 586x320 pixel resolution

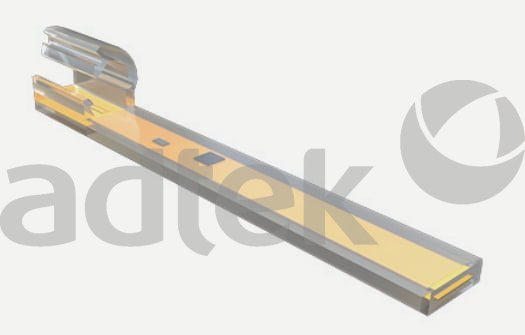

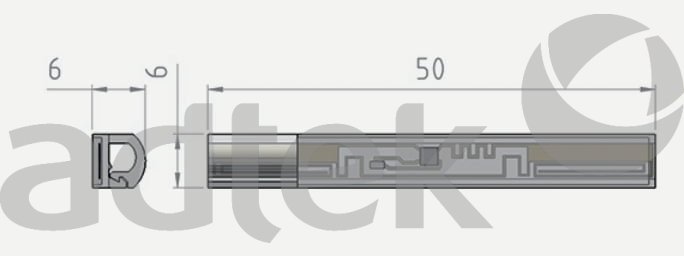

ADTEK Fiber Optic Tracing Solutions RFID tracking tube or label component technical dimension drawing showing long rectangular part with length 50mm one end height 5mm other end height 9mm internal layered cross-section structure visible adtek watermark on white background

Silicone encapsulation, flat against the cable,soft to apply, factory pre-installed,non-removable, more efficient wiring

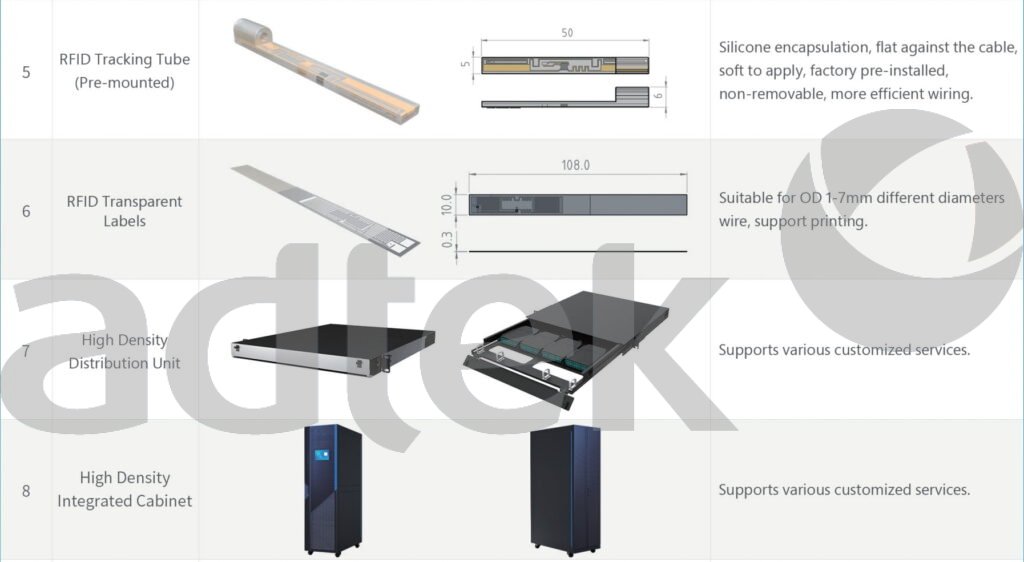

6

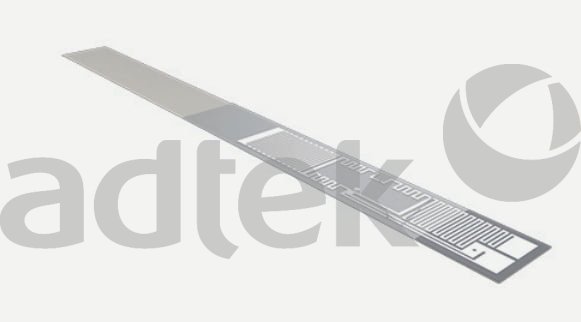

RFlD TransparentLabels

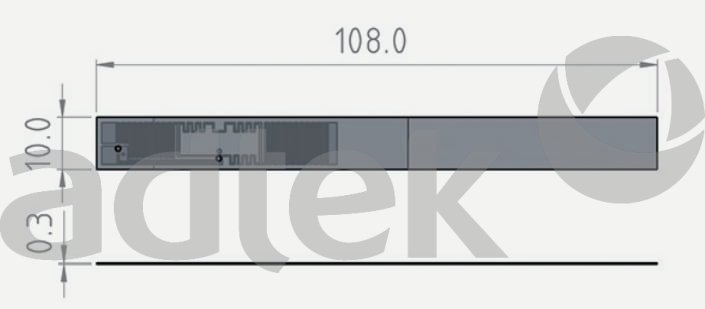

ADTEK Fiber Optic Tracing Solutions product dimension technical drawing showing rectangular gray component with engineering measurements 108.0 width and 103.0 height, adtek watermark overlay on white background, 705x309 pixel resolution

Suitable for OD 1-7mm different diameters wire, support printing

7

High Density Distribution Unit

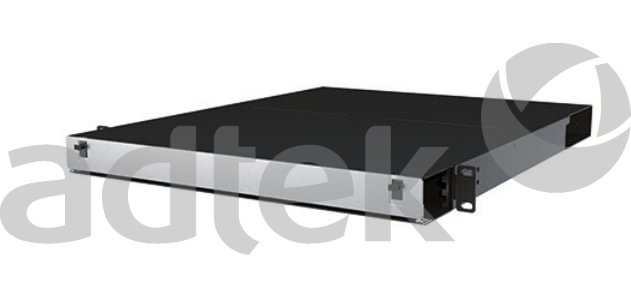

ADTEK 1U rack-mount fiber optic distribution unit or integrated cabinet product image showing black flat rectangular metal chassis with rack mounting ears on white transparent background with gray adtek logo watermark, 631x297 pixel wide format, Fiber Optic Tracing Solutions hardware photo

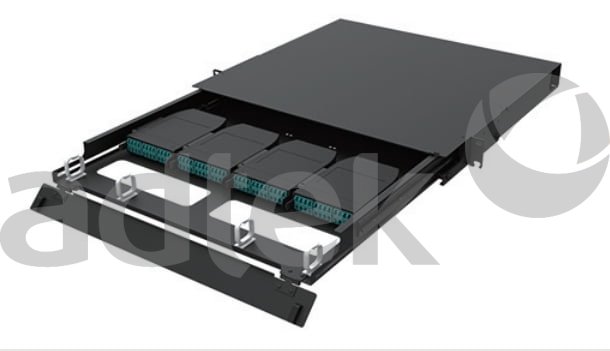

ADTEK Fiber Optic Tracing Solutions distribution unit product image showing black metal rack-mount chassis with sloped top cover and internal modular cassettes featuring blue cyan fiber optic adapter ports on transparent background with adtek watermark, 610x351 pixel resolution

Supports various customized services

8

High DensityIntegrated Cabinet

ADTEK Fiber Optic Tracing Solutions product component image on white background with adtek watermark, 326x354 pixel resolution, fiber cable identification or tracking system hardware photo

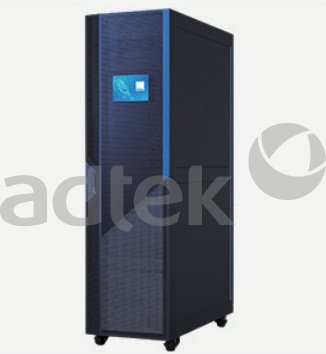

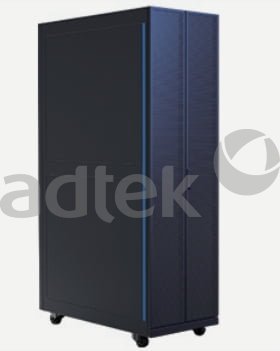

ADTEK Integrated Cabinet product image showing tall vertical black blue server rack cabinet with ventilation grille front panel on caster wheels for Fiber Optic Tracing Solutions, white background with gray adtek logo watermark

Supports various customized services.

9

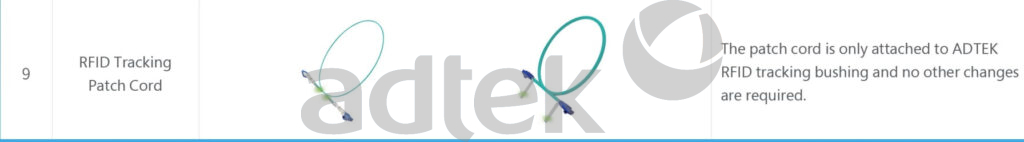

RFID Tracking Patch Cord

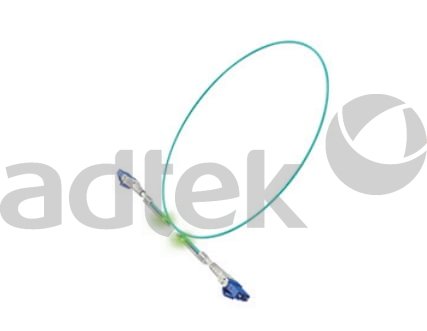

ADTEK teal fiber optic RFID tracking tube or patch cord with blue LC SC connector on one end forming oval loop shape on white background with gray adtek logo watermark, Fiber Optic Tracing Solutions product photo, 427x331 pixel resolution

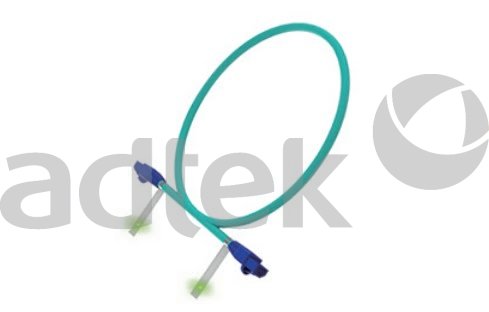

ADTEK teal turquoise fiber optic cable or RFID tracking tube with blue LC SC connectors on both ends forming loop shape on white background with gray adtek logo watermark, Fiber Optic Tracing Solutions product photo

The patch cord is only attached to ADTEK RFlD tracking bushing and no other changes are required.

ADTEK Fiber Optic Tracing Solutions product catalog image showing fiber optic cable identification or tracking system components on white background, 1794x1041 pixel wide format, data center fiber management solution photo
ADTEK Fiber Optic Tracing Solutions product image showing fiber optic cable tracing or identification system hardware on transparent background, wide format 1794x984 pixel resolution, RFID or visual tracking technology for data center fiber management
ADTEK RFID Tracking Patch Cord product image showing green fiber optic patch cords with LC connectors on both sides, large gray adtek logo watermark centered on white background, wide format 1792x249 pixel resolution, fiber optic tracing solutions product photo with text overlay stating The patch cord is only attached to ADTEK RFID tracking bushing and no other changes are required
