MDC Patch cord
• Two 1.25mm ferrules in one connector housing;
• Push-pull boot for connector insertion and extraction;
• Simple polarity reversal with no exposed fibers;
• Meets IEC 61753-1 Grade B insertion loss requirements;
• Telcordia GR-326 and TIA-568 compliant;
• Designed for cables up to 2.0mm OD;
• MM, SM and SM APC available;
• 3x fiber cabling density over LC.
Application Environment
Product
Application Environment
MDC Patch cord
Multiple emerging transceiver Multi-Source Agreements (MSAs) have defined port breakout architectures that require a duplex optical connector with a smaller footprint than the LC connector. The reduced size of the MDC connector will allow a single array transceiver to accept multiple MDC patch cables which are individually accessible.
Directly at the transceiver interface. The new format will support four individual MDC cables in a QSFP footprint and two individual MDC cables in an SFP footprint. The increased connector density at the module/panel minimizes hardware size which leads to reduced capital and operational expense. A one Rack Unit (RU) housing can accommodate 144 fibers with LC Duplex connectors and adapters. Using the smaller MDC connector increases the fiber count to 432F in the same 1 RU space.
Specifications
Product
Specifications

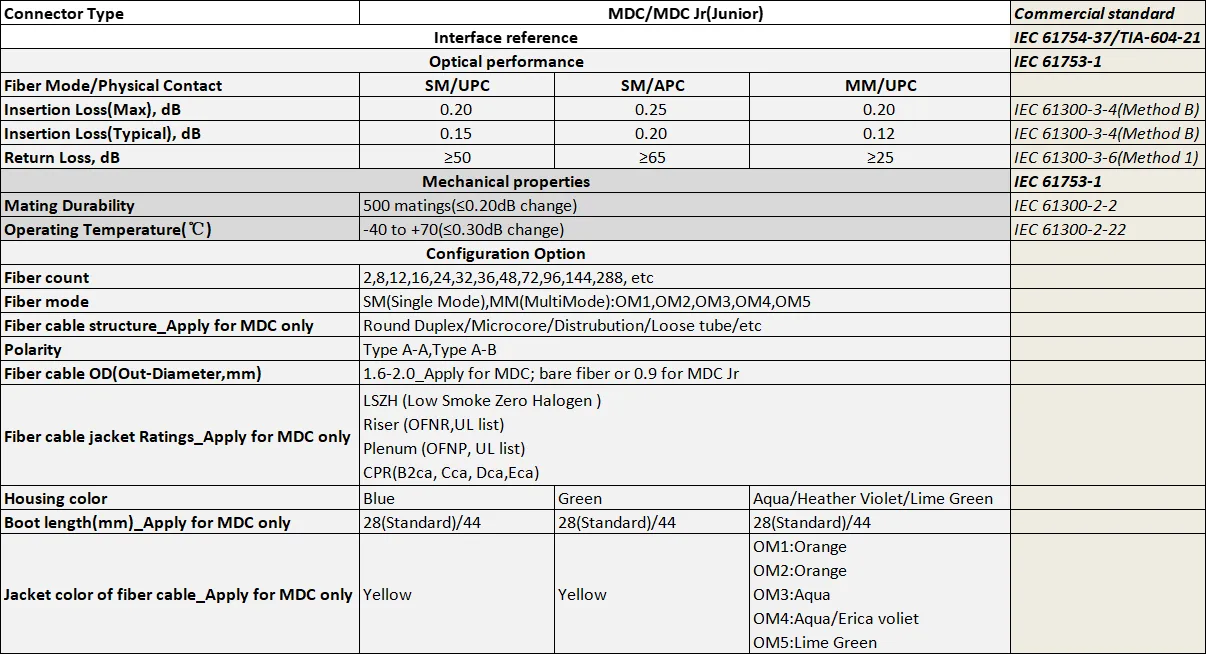

MDC Patch cord
| Temperature Range | Controlled Indoor Environment（-10℃/+60℃） | |
| Cable Parameters | Jacket Material | LSZH |
| Cable Structure | Buffered Fiber | |
| Outer Diameter | 0.9mm | |
| Fiber number | 2 | |
| Fiber Types | SMF OS2、MMF OM3/OM4/OM5 | |
| Temperature Range | Operation：-10°C to +70°C | |
| Storage：-25°C to +70°C | ||
| Installation：-5°C to +50°C | ||
| Connector Parameters | Compliance | MDC Jr. SM/MM |
Telecordia GR-326 | ||
| Jacket Color | SM – Blue (UPC) / Green (APC) MM – Aqua / Magenta / Lemon Green | |
| Cable Color | —— | |
| Polishing | Flat SM (UPC) / Angled (APC) / Flat MM (PC) | |
Insertion Loss ( According to IEC 61300-3-4 Method B) | <0,25dB (@850/1300nm & @1310/1550nm) | |
Return loss ( In accordance with IEC 61300-3-6) | >50dB (UPC) (@1310/1550nm) >65B (APC) (@1310/1550nm) >20dB (@850/1300nm) | |
| Packaging | Traceability labels with unique serial numbers on both ends of the cable assembly. | |
| Each component is packaged in a sealed PE bag and bulk packed in a cardboard box. | ||
