With the rapid development of AI clusters and hyperscale data centers, network architectures are undergoing a transition from traditional layouts to Leaf-Spine and Dragonfly topologies. However, the management complexity and catastrophic failure risks caused by tens of thousands of manual patch cords are becoming major performance and availability bottlenecks.
To address this challenge, ADTEK has launched the Infinity Shuffle OXC, a passive optical cross-connect solution based on deterministic channel shuffling technology.
Unlike conventional point-to-point connections where a single transceiver failure can disrupt an entire link, this architecture physically distributes high-speed lanes across independent spine paths—transforming catastrophic downtime into graceful degradation.
Designed specifically for hyperscale AI fabrics, the Infinity Shuffle OXC utilizes passive flexible substrate technology to implement physical layer channel shuffling.

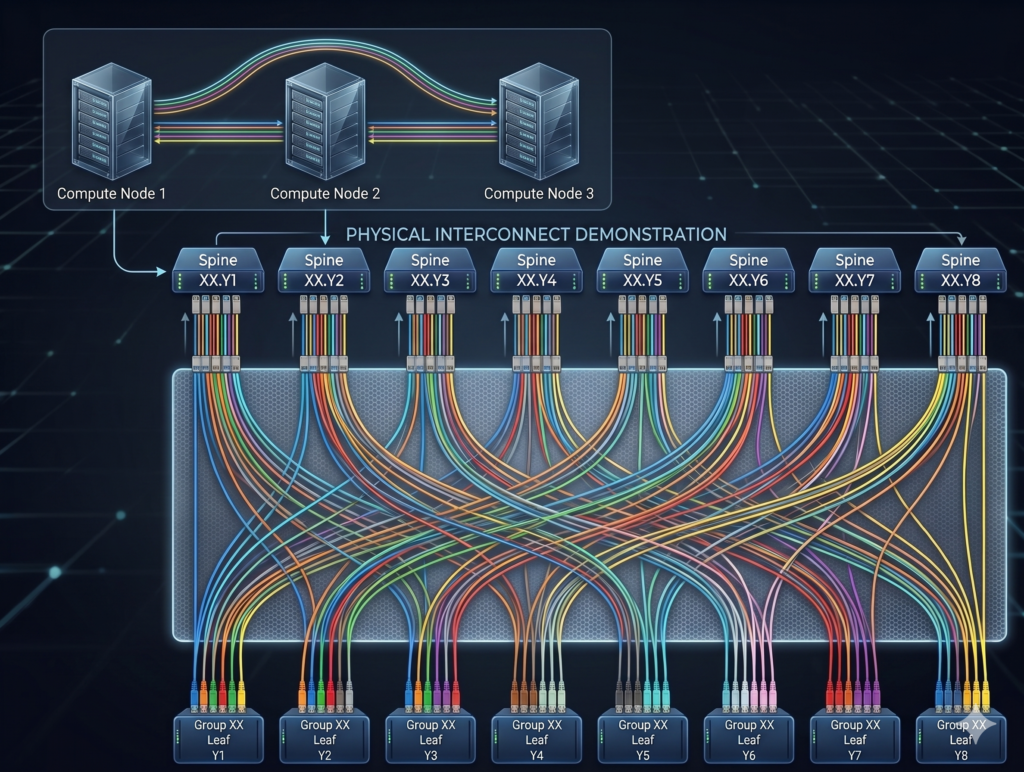

A 1.6T logical connection (8×200G) is distributed across eight independent optical paths—each 200G lane routed through separate spine switches.
This architecture delivers three key advantages:
This approach significantly enhances the robustness of high-speed optical interconnects
The solution adopts pre-terminated, high-density fiber hybrid designs with insertion loss as low as 0.05 dB, ensuring sufficient optical power budget for 400G, 800G, and 1.6T networks.
At the same time, strict control of lane skew and isolation ensures compliance with IEEE 802.3 standards for multi-lane Ethernet transmission.
The Infinity Shuffle OXC is fully compatible with ADTEK’s GPX series patch panels, supporting MPO/MTP, MMC, SN-MT, and bare fiber connectivity without additional adapters.
Topology options include:
These configurations support both series and parallel architectures, maximizing space efficiency in data center cabling systems
The system reduces switch count and transceiver usage significantly—for example, from 1,280 to 320 transceivers—resulting in up to 40% reduction in power consumption and capital expenditure.
More importantly, deterministic distribution eliminates single points of failure.
A traditional MPO trunk failure can result in total loss of a 1.6T link, whereas Shuffle architecture limits impact to one lane (12.5%), maintaining 87.5% operational capacity.
Each OXC unit is produced using automated manufacturing processes, including:
The design ensures strict physical separation of channels while maintaining equal fiber lengths, minimizing skew and ensuring stable PAM4 signal transmission.
The Infinity Shuffle OXC complies with major international standards, including:
The flexible optical substrate supports up to 1,200 fibers per layer and accommodates next-generation fiber types.
Optical performance includes:
In AI training clusters, the Shuffle OXC enables deterministic routing between spine and leaf layers.
When integrated with high-density fiber distribution systems, it supports collapsed spine architectures.
A single spine failure affects only one lane, allowing workloads to continue without interruption.
For HPC environments, the Shuffle architecture simplifies complex inter-group cabling.
Using Side-by-Side Shuffle in centralized fiber distribution frames, the system ensures physically diverse routing paths, eliminating correlated failure risks.
As bandwidth evolves toward 1.6T and 3.2T, the value of deterministic distribution increases.
A 3.2T connection distributed across multiple paths loses only a fraction of capacity per failure.
The system supports next-generation fiber technologies, ensuring compatibility with future optical modules and transmission standards.
The concept of “Shuffle” is not randomness, but deterministic distribution.
By physically separating high-speed lanes across multiple independent paths, the Infinity Shuffle OXC eliminates operational complexity while enhancing system resilience.
This transforms optical cabling from a manual, failure-prone process into a structured and predictable optical interconnect architecture
As AI data centers scale, the requirements for bandwidth, reliability, and operational efficiency continue to increase.
Infinity Shuffle OXC provides a practical solution for today’s challenges—enabling resilient, high-density, and future-ready optical interconnect systems.
By combining deterministic routing, advanced manufacturing, and system-level integration, ADTEK helps ensure that data center infrastructure remains stable, scalable, and ready for the next generation of AI workloads.
