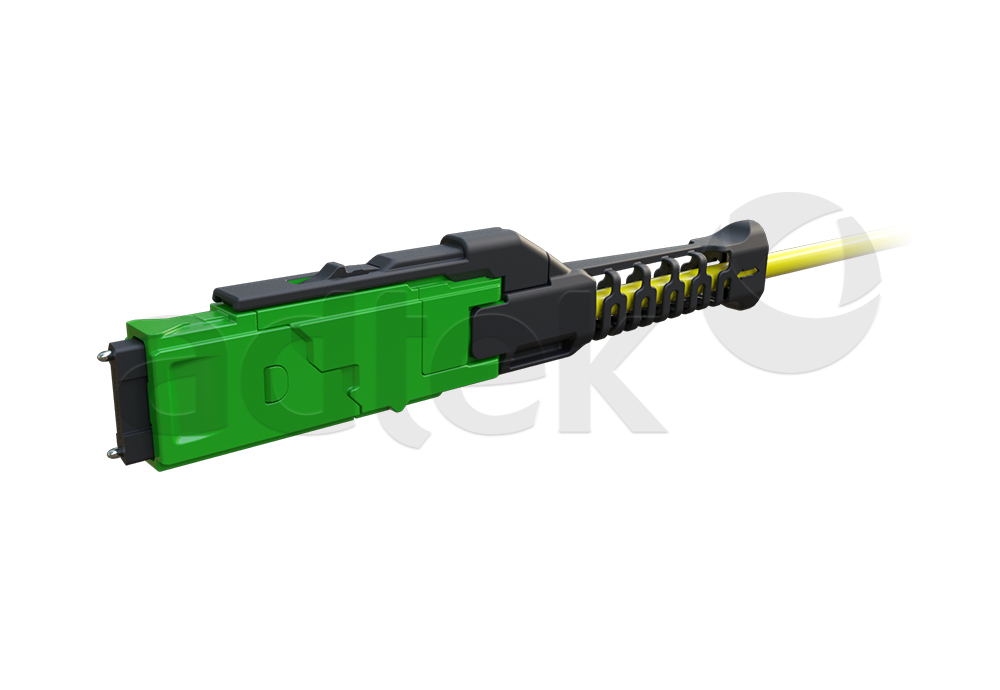

MMC Patch Cord
The MMC assemblies combines a miniature MT ferrule (TMT) with an innovative Very Small Form Factor (VSFF) design, ushering in a new generation of high-density, low insertion loss connectivity. It is designed to meet diverse data center application requirements, including structured cabling, high-fiber-count data center interconnects, optical modules, and onboard optics.
Features
- The MMC assemblies features a single-latch locking mechanism positioned away from the optical interface of the TMT ferrule, effectively reducing debris generation around the ferrule end face during mating and unmating processes.
- The TMT ferrule incorporates a compact footprint, reduced epoxy reservoir, and symmetrical structure design, providing a technical pathway for lowering insertion loss while enhancing environmental stability and reliability. These innovations surpass the definition limits specified under IEC 61755-1 Grade B standards.
- Its symmetrical architecture and minimized epoxy retention requirements ensure outstanding stability and performance under both controlled and uncontrolled environmental testing conditions defined by TIA-568 and GR-1435 standards.
Related Product News
Our MTP®/MPO high-density fiber assemblies series is engineered for modern data centers and high-speed optical networks, offering up to 72 fibers in a compact form. With low insertion loss, high reliability, and modular design, it ensures fast deployment, efficient cable management, and seamless scalability for 40G/100G/400G Ethernet and 5G infrastructure.
MPO/MTP® Fiber Optic Jumper Installation Tips: Ensuring Optimal Performance
This article provides essential tips for installing MPO/MTP® fiber optic jumpers, covering key points such as selecting the right jumper, fiber management, cleaning assemblies , verifying polarity, ensuring compatibility, securing connections, and testing performance to ensure optimal network performance.
Application Environment
Optical Modules & Active Optical Cables (AOC)
Data Centers & High-Performance Computing (HPC)
Structured Cabling
On-Board Optics / Card-Edge assemblies
Specifications
