VSFF Connectivity: Rethinking Density and Scalability in Next-Generation Optical Networks

VSFF Connectivity: Managing Explosive Fiber Growth at 1.6T and Beyond
As data centers deploy 1.6Tbps connectivity with 3.2Tbps on the horizon, and switch ASICs drive radix counts to 128 and 144 ports, fiber infrastructure faces an exponential density crisis. VSFF (Very Small Form Factor) connectivity is not about cable reduction—it is about enabling the physical connection of massive fiber counts that legacy interfaces cannot accommodate.
The Density Explosion
Next-generation switches have moved beyond the 32/64-port era. Modern AI-optimized switches deliver 128 to 144 ports of 800G/1.6T, creating a mathematical impossibility: you cannot fit 144 duplex LC connectors on a 1RU front panel.
Simultaneously, parallel optics architectures dominate 400G/800G/1.6T deployment:

400G: Primarily MPO-8 or MPO-12 (SR8/DR4 variants)

800G: MPO-12 or MPO-16 configurations

1.6T: Emerging MPO-16 and MPO-24 requirements
The result is not fewer fibers, but exponentially more: a 144-port 1.6T switch requires up to 3,456 fibers (MPO-24 × 144). VSFF becomes mandatory not to reduce cable volume, but to fit this fiber explosion into physically available space.
Rack Real Estate Competition
Modern 40-50kW AI racks face a three-way space battle. Fiber connectivity must coexist with:
Power Infrastructure

415V/480V busway taps and PDUs consume 1-2U and significant side-channel space

High-amperage whips (60A-100A+) compete for cable routing paths

A/B redundant feeds double these space requirements
Liquid Cooling Infrastructure

Direct-to-chip manifolds occupy 1-3U per rack

Supply/return lines and quick-disconnects consume side and rear space

CDUs claim 4-6U at rack bases
The Brownfield Reality Legacy facilities cannot expand physical footprints. Fixed 42U/48U cabinets, constrained raised floors, and ceiling heights limit expansion. When power and cooling upgrades consume reserved space, fiber infrastructure must densify into whatever volume remains.

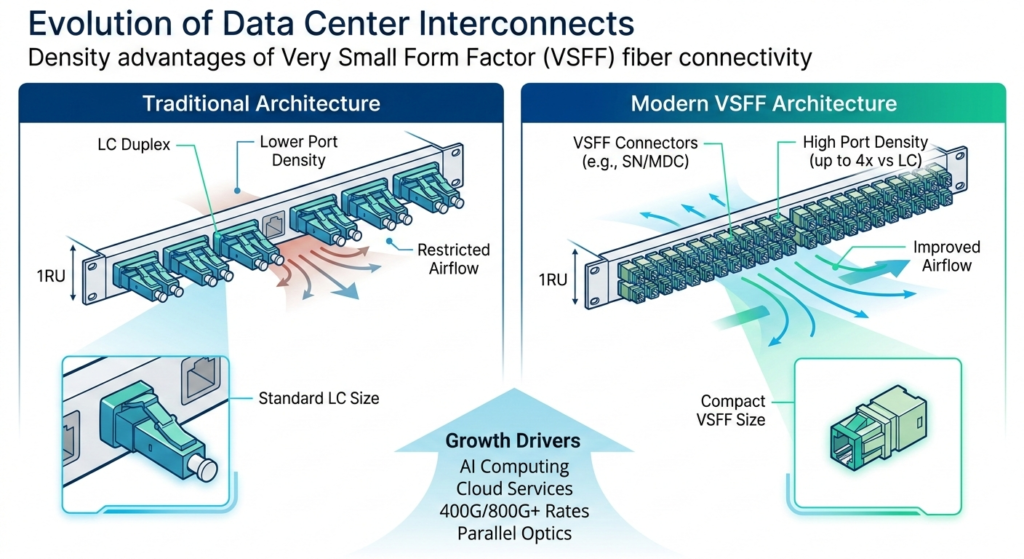

VSFF enables this coexistence by delivering 2-3x the connector density in the same footprint, allowing networks to scale despite the fiber count explosion and competing infrastructure claims.
Technical Necessity at 128+ Port Radix
The shift to higher-radix switches (128/144 ports) creates physical constraints that cannot be engineered around with legacy connectors:

Front-panel geometry: 144 ports × even MPO-12 connectors exceeds available 1RU width with standard LC/MPO interfaces

Patch panel saturation: Traditional patching architectures collapse under 3,000+ fibers per switch

Serviceability: High port counts require connector designs with optimized insertion forces and mechanical stability
At 1.6T, VSFF is not an optimization—it is the only viable physical interface option for high-radix deployment.
Forward to 3.2T
The trajectory toward 3.2T will amplify these constraints:

Higher fiber counts per port: MPO-24 and potentially MPO-32 becoming standard

Port radix expansion: 200+ port switches anticipated for AI fabrics

Co-packaged optics transition: VSFF serves as the external fiber interface for CPO architectures where front-panel space becomes even more constrained
Conclusion
VSFF connectivity addresses the fundamental physics problem of next-generation networking: connecting 128-144 ports requiring 16-24 fibers each into a fixed physical space, while sharing that space with power and cooling infrastructure. Without VSFF-level density, 1.6T and 3.2T switch silicon cannot be deployed—particularly in brownfield environments where rack real estate is already fully allocated to competing infrastructure demands.
