One Blow. One Connection.

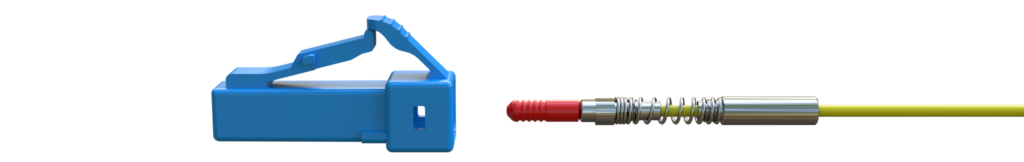

SlimRun Jet — The aerodynamic fiber Ferrule engineered for micro-duct blowing.
Deploy hundreds of meters through 3.5mm ducts in a single operation, then terminate without field polishing or splicing.
Available in SC & LC formats
Aerodynamic Jetting Profile
The specialized bullet shape maintains laminar airflow during high-pressure blowing operations. Unlike standard connectors that tumble and jam in micro-ducts, the SlimRun Jet slim, short and flexible profile glides through 3.5mm ID ducts for distances exceeding traditional limits—no midway access points, no intermediate splices.
Jetting-Grade Mechanical Strength
Built to withstand tensile forces during the jetting process. The 1.2mm jetting cable and reinforced construction handle the air pressure and friction of long-distance deployment without compromising the factory-polished ferrule inside.
Pristine End-Faces After the Blow
Even after high-speed transit through dusty micro-ducts, the protective cap remains sealed until final housing assembly. Remove the aerodynamic sleeve, fit the outer housing, and the ferrule is still factory-clean—guaranteeing <0.3dB insertion loss without field polishing.
One Operation, Zero Splicing
Blow directly from the distribution point to the apartment entry point. The SlimRun Jet installs as a complete assembly—no need to blow bare fiber and then field-terminate. Cut installation time by 60% compared to traditional blow-and-splice methods.
Technical Specifications
Optimized for Micro-Duct Deployment | Standards: Telcordia GR-326, IEC 61754-20/4, IEC 61300-2 series, RoHS, REACH
SC
LC
Compatible Micro-Ducts:
Minimum ID:5mm (LC variant)
Standard Range:5/3.5mm, 7/5.5mm micro-ducts
Cable Compatibility:
- 1.2mm round jetting cable — Ultra-slim for maximum blow distance
- 1.0mm round jetting cable indoor – Multi Fiber
Jetting-Specific Mechanical Performance:
Tensile Strength (Jetting): >100N (IEC 60794-1-E1)
Tensile Strength (Long-term): 18N–30N depending on cable (IEC 60794-1-E1)
Performance Under Load: 40N/60s (IEC 61300-2-4)
Operating Temperature: -40℃ to 80℃ (IEC 61300-2-22)
Bending Radius (Static): 20× cable diameter
Bending Radius (Dynamic): 10× cable diameter
Optical Performance (Single-Mode)
Type
Insertion Loss (Max)
Insertion Loss (Typical)
Return Loss
UPC Premium
0.30 dB
≤0.25 dB
≥50 dB
UPC Low Loss
0.20 dB
≤0.15 dB
≥50 dB
APC Premium
0.30 dB
≤0.25 dB
≥65 dB
APC Low Loss
0.20 dB
≤0.15 dB
≥65 dB
Comparison Note: Same optical excellence as SlimRun Connector, engineered for higher mechanical stress during jetting.
Deployment Configurations
From Building DP to Apartment
In fiber-to-the-room deployments, blow SlimRun Jet assemblies through pre-installed 5/3.5mm micro-ducts from the building distribution point directly to each apartment. No hallway trays, no riser cables—just clean, invisible infrastructure that terminates at the optical network terminal without additional splices.
Existing Duct, New Revenue
Leverage existing telecom micro-duct infrastructure in dense urban environments. The 1.2mm cable profile fits legacy ducts occupied by copper, while the >100N tensile strength handles the friction of pushing past 90° bends and cable accumulation. Upgrade customers to fiber without digging new trenches.
Where Conduit Space is Premium
Luxury apartments and historic buildings where aesthetic standards prohibit surface raceways and structural limits prevent new conduit installation. Blow SlimRun Jet through the smallest available pathways—3.5mm ID micro-ducts embedded in walls or under floorboards—delivering 800G-ready fiber connectivity with minimal structural impact.
top Splicing at the Endpoint
Ready to deploy fiber faster through micro-ducts? Request a SlimRun Jet evaluation kit with SC and LC variants, 1.2mm jetting cable samples, and blowing compatibility guidelines. Our application engineers will validate duct specifications for your specific FTTH infrastructure.
