Modular Patch Panel_GPX58
The Patch Panel is a versatile and essential component in modern telecommunications and data networking infrastructure. Designed with a focus on functionality, modularity, and ease of use, GPX58 patch panel offers a compact and efficient solution for managing optical fiber connections.
Whether you are setting up a data center, telecommunications network, or any fiber optic infrastructure, the GPX58 Patch Panel delivers the reliability, convenience, and versatility you need to effectively manage your optical fiber connections. Its innovative design and user-friendly features make it an excellent choice for organizations seeking seamless and efficient fiber network solutions.
Product
Modular Patch Panel_GPX58
- Modular Design
The Patch Panel boasts a modular design, allowing each module to be operated independently. This modular approach provides flexibility in configuration and maintenance, making it easier to manage and upgrade your fiber network as needed.
- Press-and-Lock Mechanism
With its press-and-lock mechanism, simply press to lock fiber connectors securely in place, and with another press, they effortlessly eject, allowing for quick and hassle-free changes and connections.
- Dual Sliding Rails
Equipped with dual sliding rail systems, this patch panel offers horizontal sliding with three locking positions for precise cable management. The sliding mechanism allows for easy access to fiber connections and ensures a neat and organized setup.
- Tray Tilt for Easy Access
For rear cable operations, the GPX58 Patch Panel features a tray tilt functionality. The tray can be fully extended and then tilted down, providing optimal accessibility when working with rear fiber cables.
Application Environment
Product
Application Environment
Modular Patch Panel_GPX58
- Data Centers
- Telecommunications
- Networks Enterprise Networks
Specifications
Product
Specifications
Modular Patch Panel_GPX58
Modula Patch Panel_GPX58 1U | |||||||
– | P/N | Fiber Capacity | Dimensions (W×D×H),mm | Housing Material | Housing Color | Connector Type | |
Front | Rear | ||||||
Patch Panel | GPX58-R10404T1 | 96F(LC), 48F(SC) | 444×430×44 | CR Steel | Black | NA | NA |
Patch Cassette | GPX58-3M06P06 | 24F(LC), 12F(SC) | 92×126×26.5 | ABS | Black or Customized | LC/SC/MPO | MPO |
Splice Cassette | GPX58-0M06P06 | 24F(LC), 12F(SC) | 92×160×26.5 | ABS | Black or Customized | LC/SC | NA |
Adapter Plate | FP-GPX58-06P06 | 24F(LC), 12F(SC) | 92×33.7×26.5 | ABS | Black or Customized | LC/SC/MPO | NA |
Order Guide
Product
Order Guide
Modular Patch Panel_GPX58

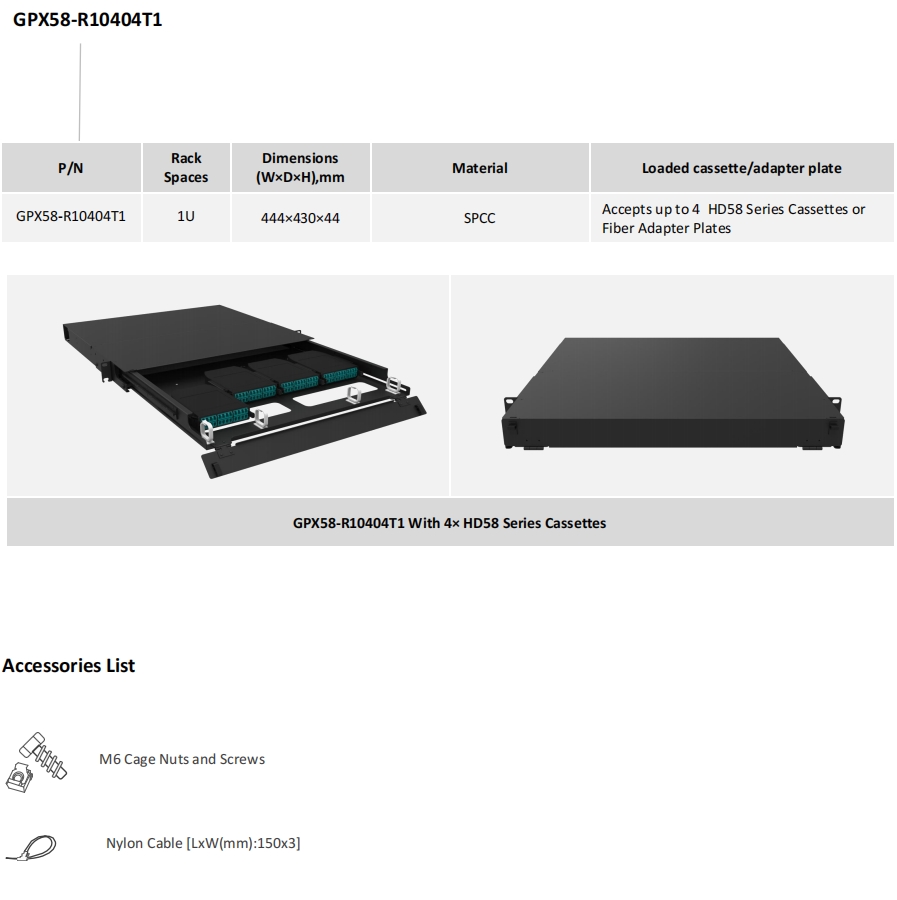

Fiber Patch Panel - Loaded Cassette/Adapter Plate
| P/N | Rack Spaces | Dimensions (W×D×H),mm | Material | Loaded cassette/adapter plate |

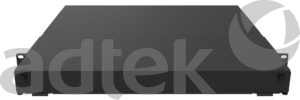

| GPX58-R10404T1 | 1U | 444×430×44 | SPCC | Accepts up to 4 HD58 Series Cassettes or Fiber Adapter Plates |
 |  |

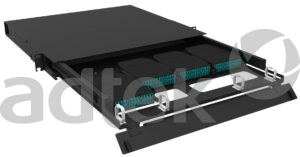

GPX58-R1 With 4× GPX58 Patch Cassettes | |

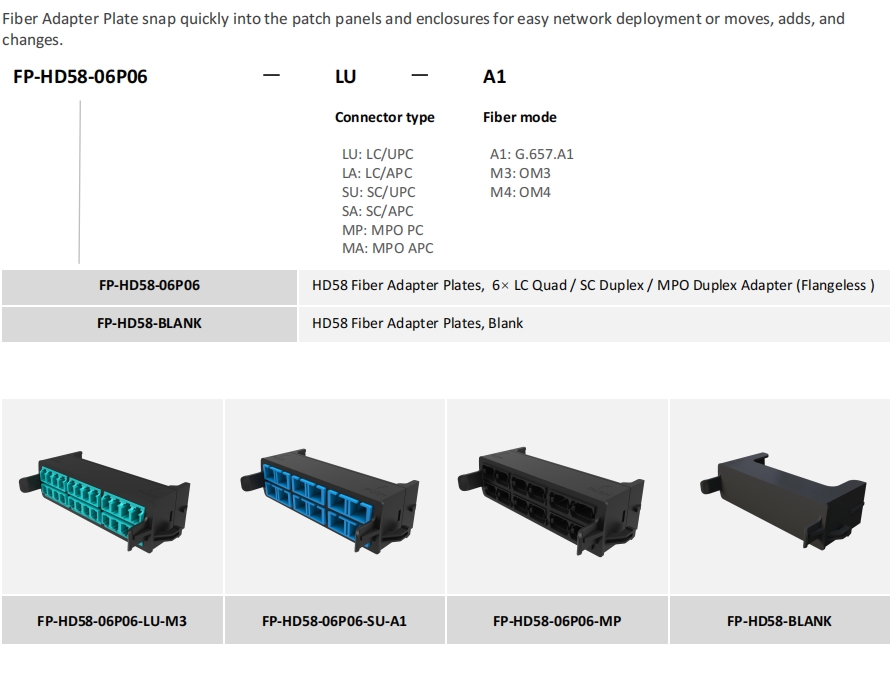

Fiber Adapter Plate
Fiber Adapter Plate snap quickly into the patch panels and enclosures for easy network deployment or moves, adds, and changes.
| FP-GPX58-06P06 | LU | A1 |
| Connector type | Fiber mode | |
| LU: LC/UPC | A1: G.657.A1 | |
| LA: LC/APC | M3: OM3 | |
| SU: SC/UPC | M4: OM4 | |
| SA: SC/APC | ||
| MU: MPO UPC | ||
| MA: MPO APC | ||
| FP-GPX58-06P06 | GPX58 Fiber Adapter Plates, 6× LC Quad / SC Duplex / MPO Duplex(Flangeless ) | |
 |  |  |

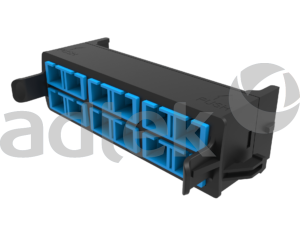

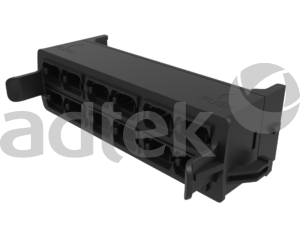

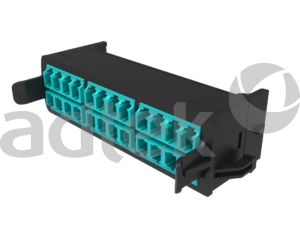

Adapter: LC Quad | Adapter: SC Duplex | Adapter: MPO Duplex |

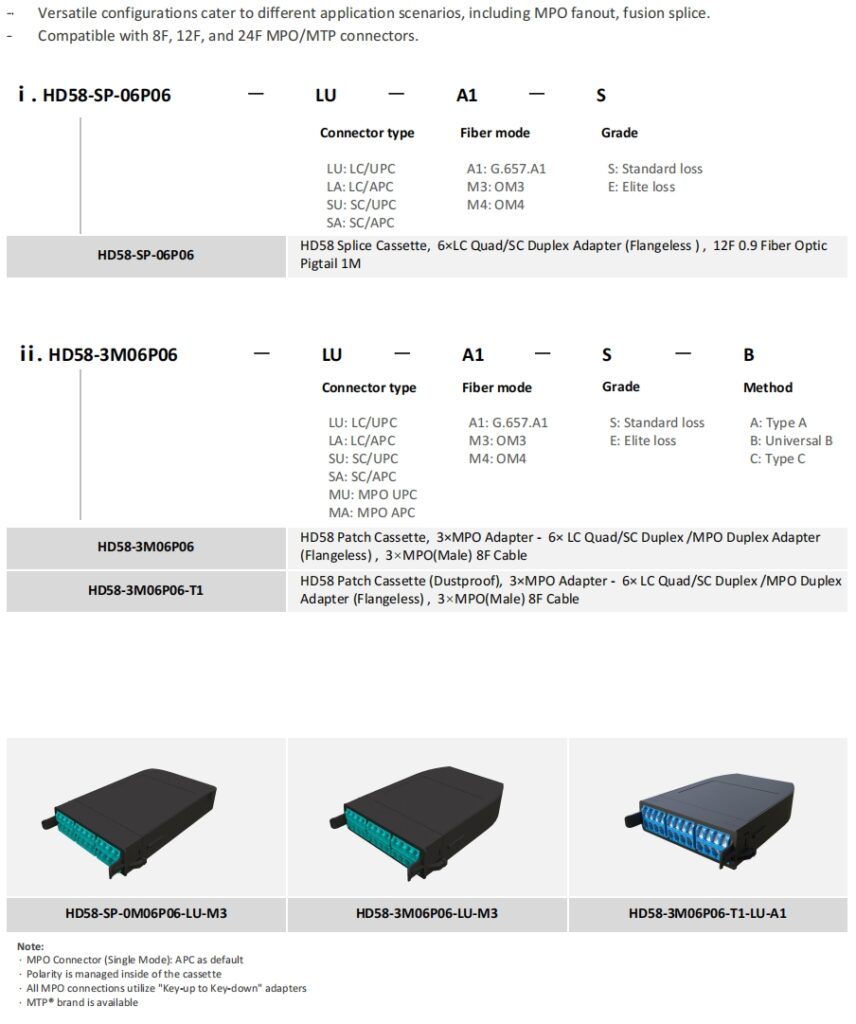

GPX58 Cassettes
– Versatile configurations cater to different application scenarios, including MPO fanout, fusion splice.
– Compatible with 8F, 12F, and 24F MPO/MTP connectors.
| ⅰ. GPX58-SP | LU | A1 | S |
| Connector type | Fiber mode | Grade | |
| LU: LC/UPC | A1: G.657.A1 | S: Standard loss | |
| LA: LC/APC | M3: OM3 | E: Elite loss | |
| SU: SC/UPC | M4: OM4 | ||
| SA: SC/APC | |||
| GPX58-SP | GPX58 Splice Cassette, 6×LC Quad/SC Duplex Adapter (Flangeless ) , 0.9 Fiber Optic Pigtail 1M | ||
| ⅱ. GPX58-3M | LU | A1 | S | B |
| Connector type | Fiber mode | Grade | Method | |
| LU: LC/UPC | A1: G.657.A1 | S: Standard loss | A: Type A | |
| LA: LC/APC | M3: OM3 | E: Elite loss | B: Universal B | |
| SU: SC/UPC | M4: OM4 | C: Type C | ||
| SA: SC/APC | ||||
| MU: MPO UPC | ||||
| MA: MPO APC | ||||
| GPX58-3M | GPX58 Patch Cassette, 3×MPO Adapter – 6× LC Quad / SC Duplex / MPO Duplex Adapter (Flangeless) , MPO Fiber Cables | |||
 |  |

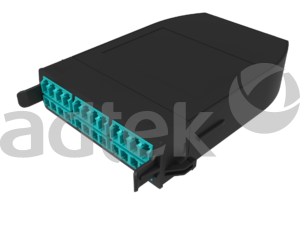

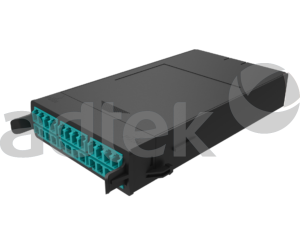

GPX58-SP-LU-M3 | GPX58-3M-LU-M3 |
Note:
MPO Connector (Single Mode): APC as default
Polarity is managed inside of the cassette
All MPO connections utilize “Key-up to Key-down” adapters
MTP® brand is available
