ADTEK provides slide rail fiber optic patch panel with aluminum alloy slide-way pulling design,easy to pull,self-locking function by smoothning,wiring rack top cover can be removed, the plate can be opened, both sides of the box are equipped with outlets and protection of the coil fiber; 72 core wiring saves wiring space effectively and reduces wiring costs; to provide the best user experience by simplifying installation and maintenance,convenient access and reliable fiber optic performance. Meanwhile,our solution supports high-speed 40G/100 G Ethernet by adopting the latest parallel optical technology.
Product
Fiber Patch Panel_GPX10
- Modular design provides high flexibility and selectivity for future network growth
- High density wiring design saves wiring space and reduces wiring cost
- Pre-terminated, plug-and-play, to reduce on-site deployment costs
- Smooth and flexible slide design operation enables self-locking function
- The plate can be opened and the cover plate can be disassembled for convenient installation and maintenance
- Supports high speed IEEE802.3ba and 40G/100G speed data Ethernet applications
Application Environment
Product
Application Environment
Fiber Patch Panel_GPX10
- Data Centers
- Telecommunications Networks
- Enterprise Networks
Specifications
Product
Specifications
Fiber Patch Panel_GPX10

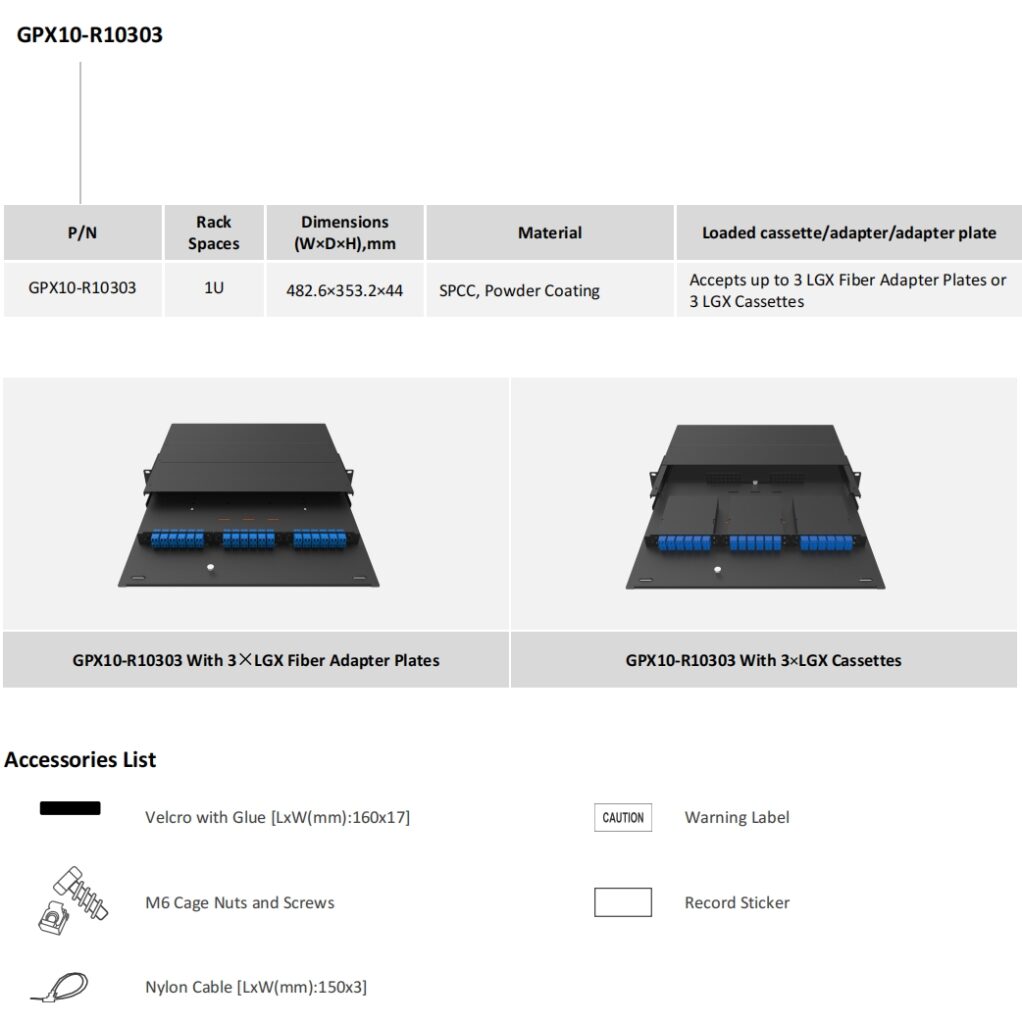

Fiber Patch Panel_GPX10, Sliding | ||||
P/N | Rack Spaces | Dimensions (W×D×H),mm | Material | Loaded cassette/adapter/adapter plate |
GPX10-R10303 | 1U | 482.6×353.2×44 | SPCC, Powder Coating | Accepts up to 3 LGX Fiber Adapter Plates or 3 LGX Cassettes |
Order Guide
Product information
Order Guide
Fiber Patch Panel_GPX10
Ⅰ. Fiber Patch Panel - Loaded Cassette/Adapter Plate
| GPX10-R10303 | ||||
| P/N | Rack Spaces | Dimensions (W×D×H),mm | Material | Loaded cassette/adapter/adapter plate |
| GPX10-R10303 | 1U | 482.6×353.2×44 | SPCC, Powder Coating | Accepts up to 3 LGX Fiber Adapter Plates or 3 LGX Cassettes |
 |  |

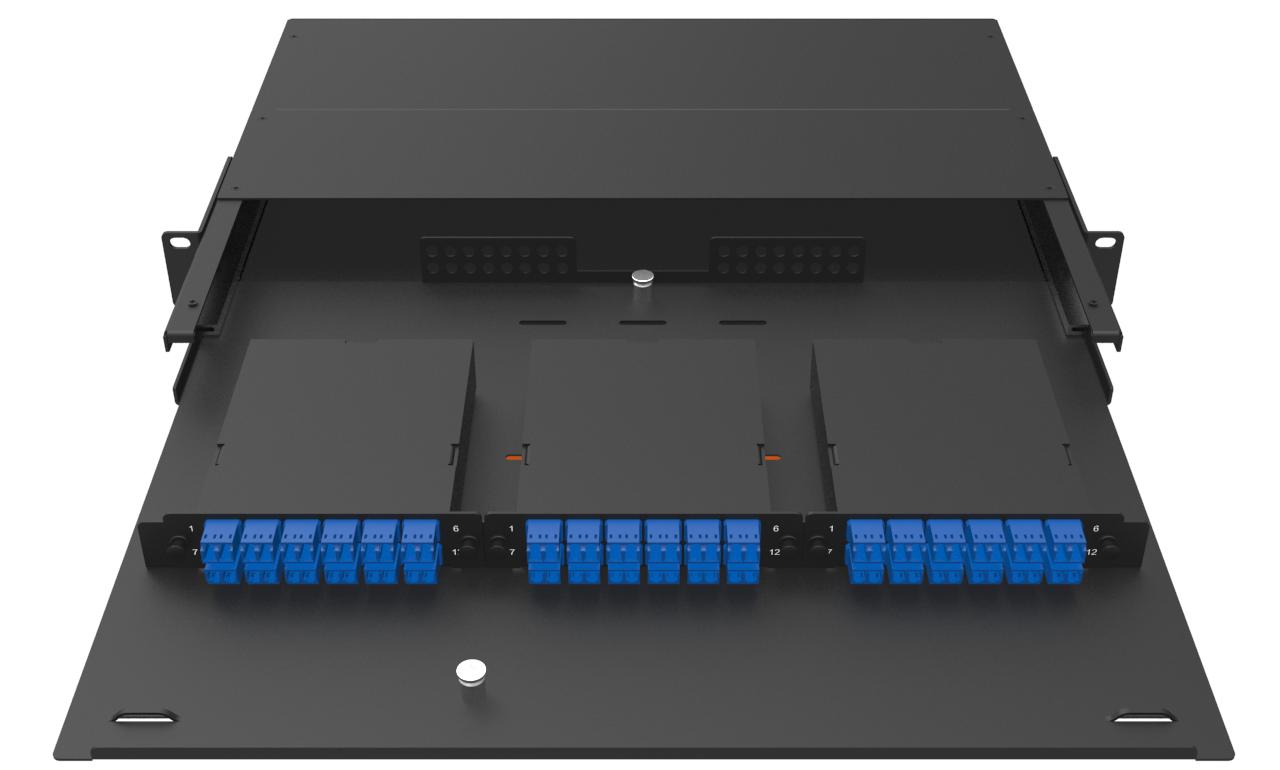

| GPX10-R10303 With 3×LGX Fiber Adapter Plates | GPX10-R10303 With 3×LGX Cassettes |

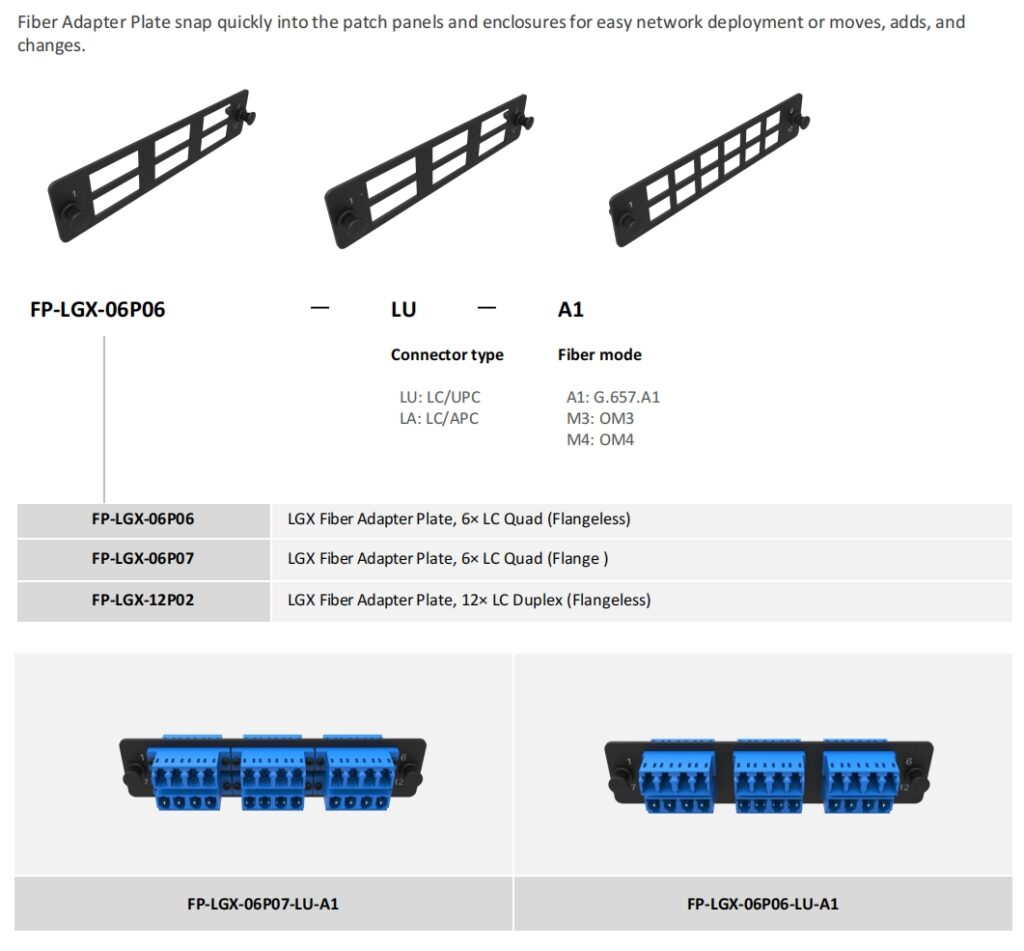

Ⅱ. Fiber Adapter Plate
Fiber Adapter Plate snap quickly into the patch panels and enclosures for easy network deployment or moves, adds, and changes.
 |  |  |
| FP-LGX-06P06 | LU | A1 |
| Connector type | Fiber mode | |
| LU: LC/UPC | A1: G.657.A1 | |
| LA: LC/APC | M3: OM3 | |
| M4: OM4 | ||

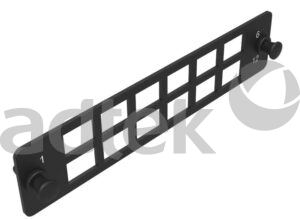

| FP-LGX-06P06 | LGX Fiber Adapter Plate, 6× LC Quad (Flangeless) | |

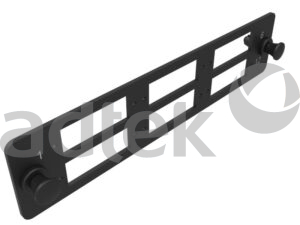

| FP-LGX-06P07 | LGX Fiber Adapter Plate, 6× LC Quad (Flange ) | |

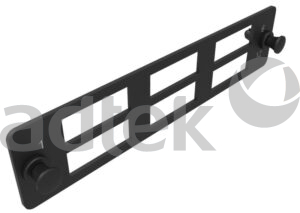

| FP-LGX-12P02 | LGX Fiber Adapter Plate, 12× LC Duplex (Flangeless) | |
 |  |
FP-LGX-06P07-LU-A1 | FP-LGX-06P06-LU-A1 |

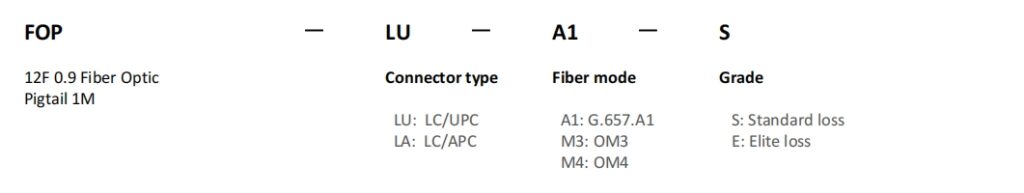

Ⅲ . Fiber Optic Pigtail
| FOP | LU | A1 | S |
| 12F 0.9 Fiber Optic Pigtail 1M | Connector type | Fiber mode | Grade |
| LU: LC/UPC | A1: G.657.A1 | S: Standard loss | |
| LA: LC/APC | M3: OM3 | E: Elite loss | |
| M4: OM4 |

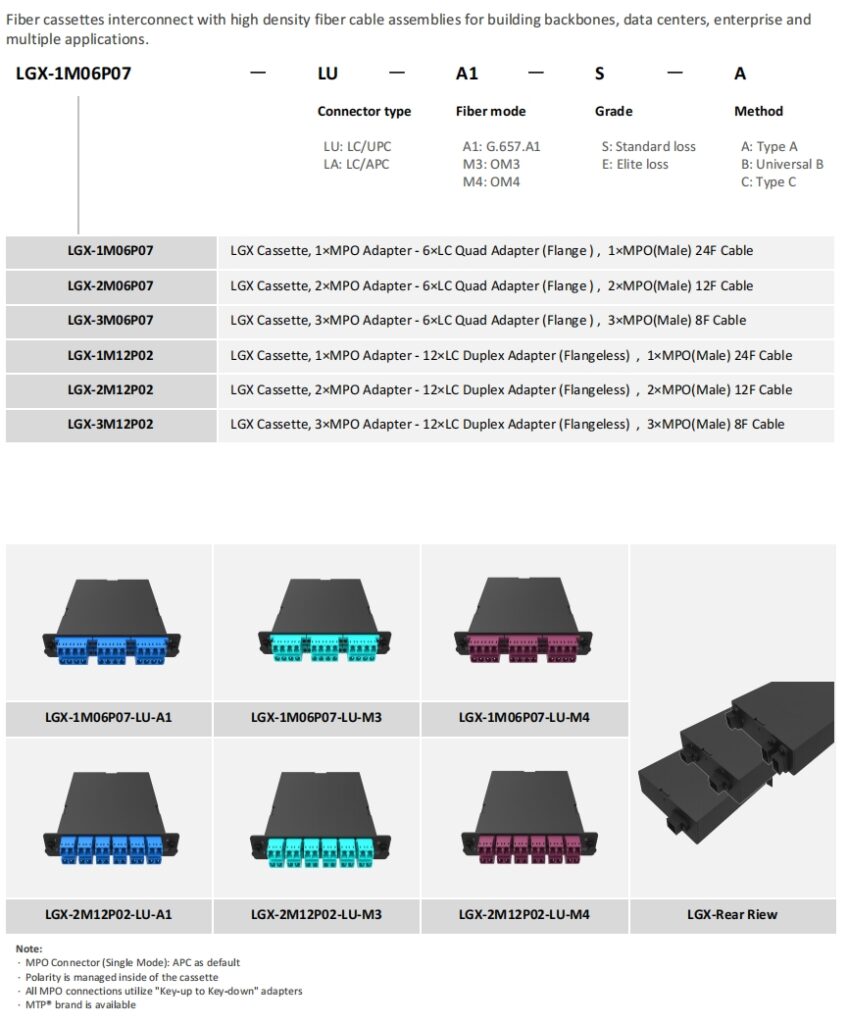

Ⅳ. MPO Cassettes
Fiber cassettes interconnect with high density fiber cable assemblies for building backbones, data centers, enterprise and multiple applications.-
| LGX-1M06P07 | LU | A1 | S | A |
| Connector type | Fiber mode | Grade | Method | |
| LU: LC/UPC | A1: G.657.A1 | S: Standard loss | A: Type A | |
| LA: LC/APC | M3: OM3 | E: Elite loss | B: Universal B | |
| M4: OM4 | C: Type C | |||

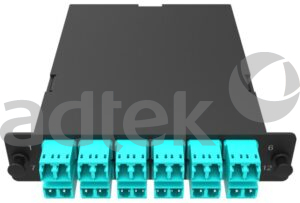

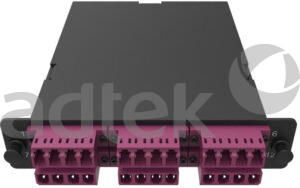

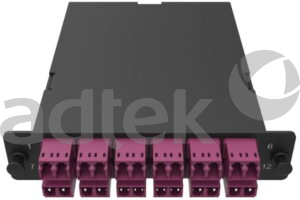

| LGX-1M06P07 | LGX Cassette, 1×MPO Adapter – 6×LC Quad Adapter (Flange ) , 1×MPO(Male) 24F Cable | |||
| LGX-2M06P07 | LGX Cassette, 2×MPO Adapter – 6×LC Quad Adapter (Flange ) , 2×MPO(Male) 12F Cable | |||
| LGX-3M06P07 | LGX Cassette, 3×MPO Adapter – 6×LC Quad Adapter (Flange ) , 3×MPO(Male) 8F Cable | |||
| LGX-1M12P02 | LGX Cassette, 1×MPO Adapter – 12×LC Duplex Adapter (Flangeless) , 1×MPO(Male) 24F Cable | |||

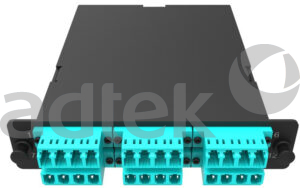

| LGX-2M12P02 | LGX Cassette, 2×MPO Adapter – 12×LC Duplex Adapter (Flangeless) , 2×MPO(Male) 12F Cable | |||
| LGX-3M12P02 | LGX Cassette, 3×MPO Adapter – 12×LC Duplex Adapter (Flangeless) , 3×MPO(Male) 8F Cable | |||
 |  |  |  |

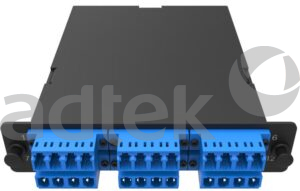

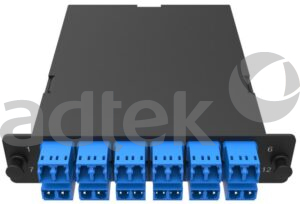

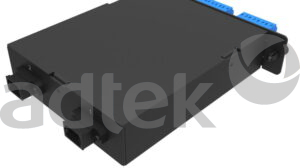

LGX-1M06P07-LU-A1 | LGX-1M06P07-LU-M3 | LGX-1M06P07-LU-M4 | |
 |  |  | |
LGX-2M12P02-LU-A1 | LGX-2M12P02-LU-M3 | LGX-2M12P02-LU-M4 | LGX-Rear Riew |
Note:
- MPO Connector (Single Mode): APC as default
- Polarity is managed inside of the cassette
- All MPO connections utilize “Key-up to Key-down” adapters
- MTP® brand is available
