2,304 Fibers. 1RU. Zero Front Downtime.
GPX73 Ultra-High-Density Patch Panel — Factory-sealed vertical cassettes with rear-loading architecture. Deploy maximum density without ever touching the front patch field.
Zero Front Downtime
Cassettes install exclusively from the rear. Add, change, or maintain without touching adjacent active front ports. The front patch field stays live while your technician works behind the panel.
Press-and-Lock Latching
No tools. No screws. Press to snap a cassette into its vertical slot. Press again to release. A technician can position or swap a cassette in seconds without disturbing neighboring links.
Hardcoded Alignment
Polarity management is factory-verified inside every sealed cassette. Plug-and-play alignment every single time. No field guessing, no micro-sequence confusion at the faceplate.
Patent-Resilient Architecture
Independent vertical-cassette design bypasses proprietary horizontal-sliding mechanisms common in premium UHD alternatives. Complete architectural freedom for OEMs and system integrators.
Two Cassettes. Two Density Levels.
Choose MMC for maximum fiber count, or LC for proven interoperability.
- 3 MMC quad adapters per cassette
- 192 fibers per cassette
- 2,304 fibers per 1RU panel (four 576F trunk cables)
- Color options: Blue, Green, Aqua, Heather Violet

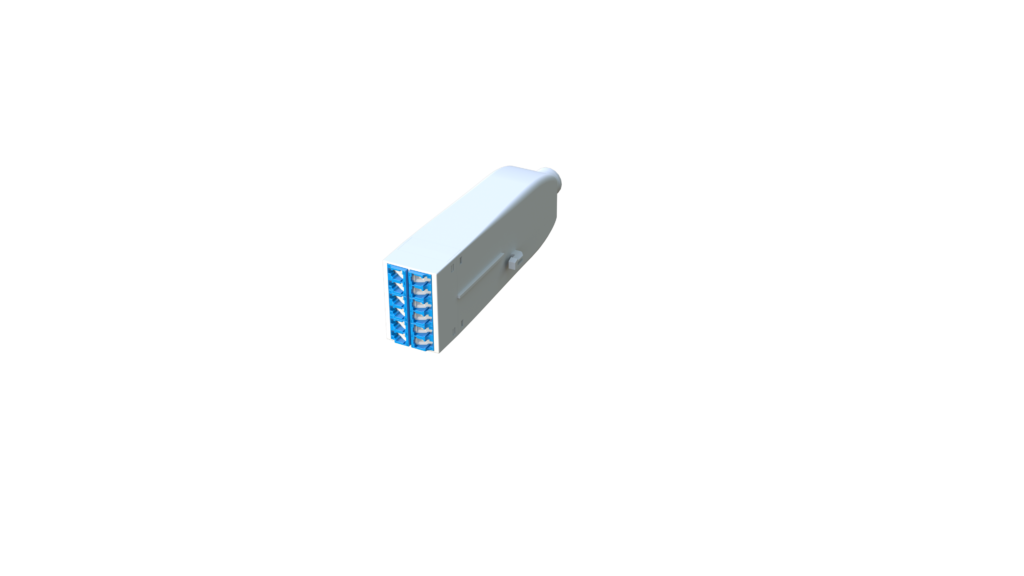

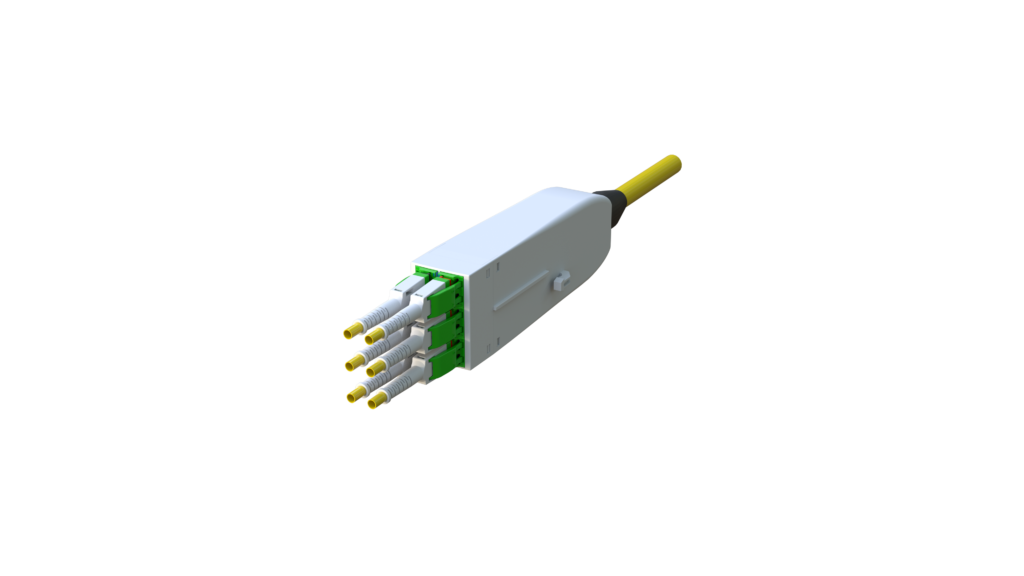

- 6 LC Duplex adapters per cassette
- 12 fibers per cassette
- 144 fibers per 1RU panel
- Proven GPX74 architecture, continued
Deployment Configurations
Built for 800G to 1.6T
AI racks demand 8× the fiber density of traditional CPU racks. MMC delivers 3× the density of MPO-16 in the same mechanical envelope. G.657A1/A2 bend-insensitive fiber is standard for all high-count builds.
Pre-Terminated Velocity
Four 576F trunk cables arrive factory-terminated and sealed. HD73 cassettes click into place from the rear. The panel is fully loaded and verified before the first front patch cord is ever touched.
One Chassis, Two Media
Populate the same GPX73 chassis with HD73 MMC cassettes for high-density trunking and HD74 LC cassettes for legacy patching. Each cassette is independent — swap one without disturbing the rest.
Standards & Compliance
Configure Your Density
Discuss your 800G/1.6T fiber topology and cassette mix with our engineering team.
