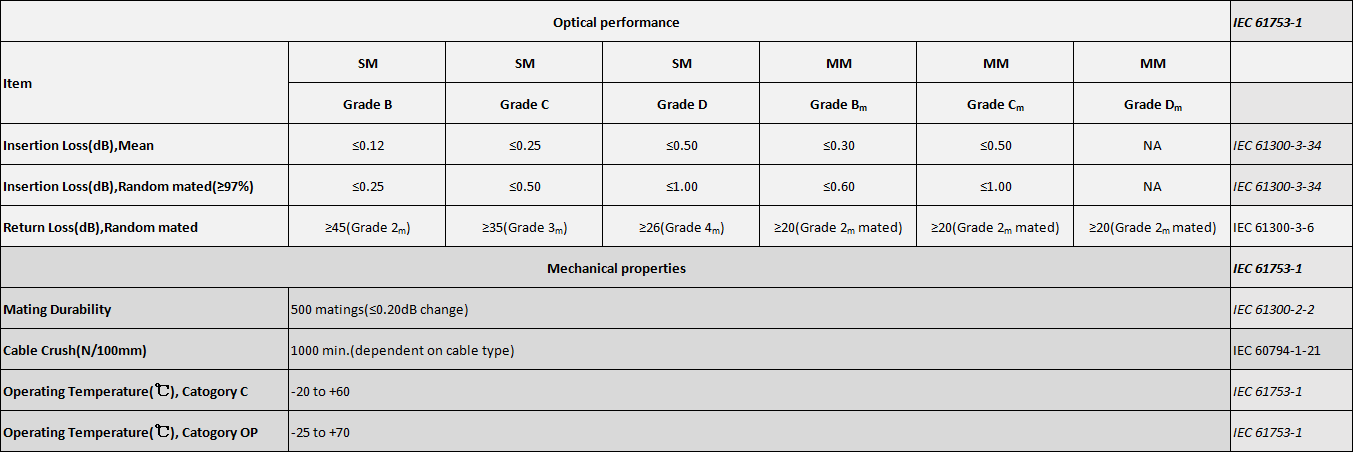

| Optical performance | IEC 61753-1 | ||||||
| Item | SM | SM | SM | MM | MM | MM | |
| Grade B | Grade C | Grade D | Grade Bm | Grade Cm | Grade Dm | ||
| Insertion Loss(dB),Mean | 0.12 | 0.25 | 0.50 | 0.30 | 0.50 | NA | IEC 61300-3-34 |
| Insertion Loss(dB),Random mated(≥97%) | 0.25 | 0.50 | 1.00 | 0.60 | 1.00 | NA | IEC 61300-3-34 |
| Return Loss(dB),Random mated | ≥45(Grade 2m) | ≥35(Grade 3m) | ≥26(Grade 4m) | ≥20(Grade 2m mated) | ≥20(Grade 2m mated) | ≥20(Grade 2m mated) | IEC 61300-3-6 |
| Mechanical properties | IEC 61753-1 | ||||||
| Mating Durability | 500 matings(≤0.20dB change) | IEC 61300-2-2 | |||||
| Cable Crush(N/100mm) | 500 | IEC 60794-1-21 | |||||
| Operating Temperature(℃), Catogory C | -10 to +60 | IEC 61753-1 | |||||
| Operating Temperature(℃), Catogory OP | -25 to +70 | IEC 61753-1 | |||||
