Navigate the Unnavigable

Bullet-like pull-through design for crowded MDU risers

Pull first, then lock into a robust, reusable connection

Zero snagging. Zero contamination. Zero compromise.

OFC 2025 demo available

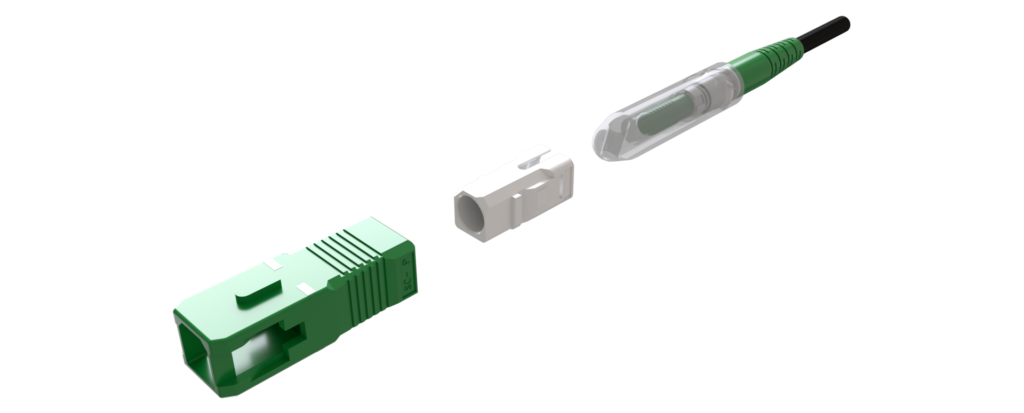

Two-Stage Re-fittable Housing

Transform from a slim, bullet-shaped pulling head to a fully protected connector in seconds. Navigate multi-bend circuits through cluttered 2″ conduits without snagging. Remove and re-fit the outer housing for MACs (Moves, Adds, Changes)—extending product life across multiple deployment cycles.

Zero-Exposure Assembly Path

The protective cap remains sealed on the ferrule throughout the pulling process—no contamination from dirty conduits or construction dust. The ferrule only exposes when the rigid housing fully locks, guaranteeing factory-grade end-face quality at final connection.

Multi-Modal Deployment

One connector, three installation methods. Pull through standard electrical ducting with the aerodynamic bullet profile. Push using Belden-style rods for short distances. Or deploy the magnetic guidance tip (LC/SC variants) to navigate through voids and walls without invasive drywall cutting.

Installer-Tough Strain Relief

Robust strain relief accepts 2.0 mm to 3.0 mm cables, surviving 5 drops from 1.5m onto concrete and 500 mating cycles. Handles ≤100N tensile load during aggressive pulls, then maintains 50N/60s performance under load once deployed.

Technical Specifications

SC

LC

Standards Compliance：

Telcordia GR-326, IEC 61754-20/4, IEC 61300-2 series, RoHS, REACH

Compatible Cables:

0mm round indoor (ADTGJFJH1F)

0mm push-type indoor (ADTGJFH1F)

Bending Radius: Static 15–20× cable diameter / Dynamic 7.5–10× cable diameter

Mechanical & Environmental Performance：

Vibration:10 Hz ~ 55 Hz (IEC 61300-2-1)

Durability:500 matings (IEC 61300-2-20)

Impact:5 drops from 1.5m height onto concrete (IEC 61300-2-8)

Operating Temperature:-40℃ to 80℃ (IEC 61300-2-22)

Tensile Strength:≤100N (IEC 61300-2-6)

Performance Under Load:50N/60s (IEC 61300-2-4)

Static Side Load:1N±0.1/60min (IEC 61300-2-42)

Optical Performance (Single-Mode)

Type

Insertion Loss (Max)

Insertion Loss (Typical)

Return Loss

UPC Premium

0.30 dB

≤0.25 dB

≥50 dB

UPC Low Loss

0.20 dB

≤0.15 dB

≥50 dB

APC Premium

0.30 dB

≤0.25 dB

≥65 dB

APC Low Loss

0.20 dB

≤0.15 dB

≥65 dB

Ferrule Concentricity: ≤1.0 μm (Single-Mode), ≤4.0 μm (Multi-Mode)

Deployment Configurations

Conquering Crowded Risers

Multi-dwelling unit backbones often resemble cable spaghetti. The SlimRun bullet profile slides past existing copper bundles and through tight 90° bends in 2″ risers that would snag standard connectors. Pull 50 meters through a congested shaft, click on the housing, and terminate—no splicing required at the apartment entry.

Invisible Office Drops

Modern Wi-Fi 6/7 deployments require fiber to every access point, but aesthetic standards prohibit surface-mounted raceways. Use existing electrical conduits (2.0mm or 3.0mm cable options) to push or pull fiber to ceiling mounts. The re-fittable housing means you can adjust slack after installation without replacing the connector.

Magnetic Guidance Through Voids

Historic buildings and luxury residences don’t tolerate drywall damage. The optional magnetic tip (LC/SC variants) pairs with retrieval magnets to guide fiber through insulated walls, sub-floor voids, and ceiling cavities. Pull the connector through, remove the magnetic guide, fit the protective housing—clean installation, zero patching required.

Stop Splicing in the Riser

Ready to cut MDU installation time by 40%? Request a SlimRun Standard sample kit with SC and LC variants, compatible cables, and installation tools.
