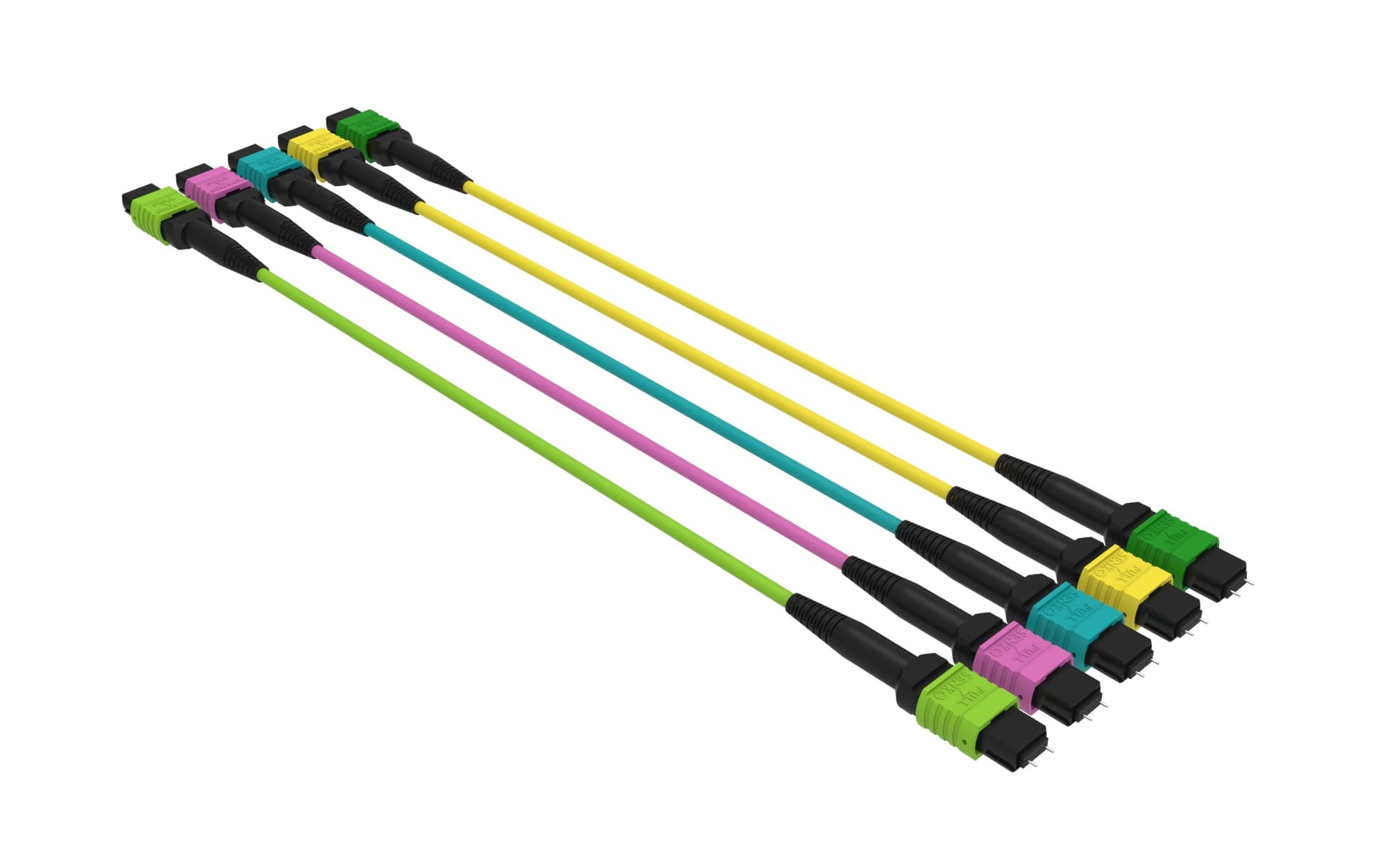

MTP® MPO Trunk

The MTP®/MPO assemblies provided by Adtek are suitable for telecom,DC(Data Center),Datacom,and networks,they are used to from cabinet to cabinet,or connectivity between of longer buiiding, and interconnect MPO cassettes of SFP module.
Currently, the AI industry operates in high-fiber density environments, particularly in Cluster Interconnects&Exascale Computing,Adtek’s MTP®/MPO assemblies are crucial in HPC(High-Performance Computing ) settings, as they connect compute nodes, storage, and network devices with high-bandwidth, low-latency links. These assemblies meet the demanding bandwidth requirements of exascale computing projects, enabling large-scale data processing and analysis.

Features

  • Conform to(parts Exceed)IEC performance requirements
  • Different MT ferrule(Base-8,Base-16, Base-24) are available
  • Low Loss Grade and Standard Grade of MTP®/MPO are optional for competitive cost
  • Single jacket(2mm to 3.0mm, typically for ≤ 15m of Total Length) and Double jacket(4.5mm to 5.5mm) are available
  • OFNR, OFNP, CPR(B1ca/B2ca/Cca/Dca/Eca) are available
  • Materials compliant to RoHS2

Related Product News

The MTP®/MPO assemblies provided by Adtek are suitable for telecom,DC(Data Center),Datacom,and networks,they are used to from cabinet to cabinet,or connectivity between of longer buiiding, and interconnect MPO cassettes of SFP module.
Currently, the AI industry operates in high-fiber density environments, particularly in Cluster Interconnects&Exascale Computing,Adtek’s MTP®/MPO assemblies are crucial in HPC(High-Performance Computing ) settings, as they connect compute nodes, storage, and network devices with high-bandwidth, low-latency links. These assemblies meet the demanding bandwidth requirements of exascale computing projects, enabling large-scale data processing and analysis.

To structure or not to structure IT Cabling for AI Clusters – Part 1

This article explores the pros and cons of point-to-point versus structured cabling in AI clusters, particularly in light of increasing bandwidth demands. It distinguishes between training and inference GenAI clusters, emphasizing the high computing and storage needs of training clusters and the importance of rapid deployment and operational efficiency. The

Read More »

Application Environment

HPC(High-Performance Computing)

Datacom

DC(Data Center)& Hyperscale DC

LAN and SAN

10G to 10G inter-connect/40G to 40G inter-connect/100G to 100G inter-connect of Base-12 or Base-24

800G QSFP-DD/OSFP DR8 and 800G OSFP XDR8 of Base-16

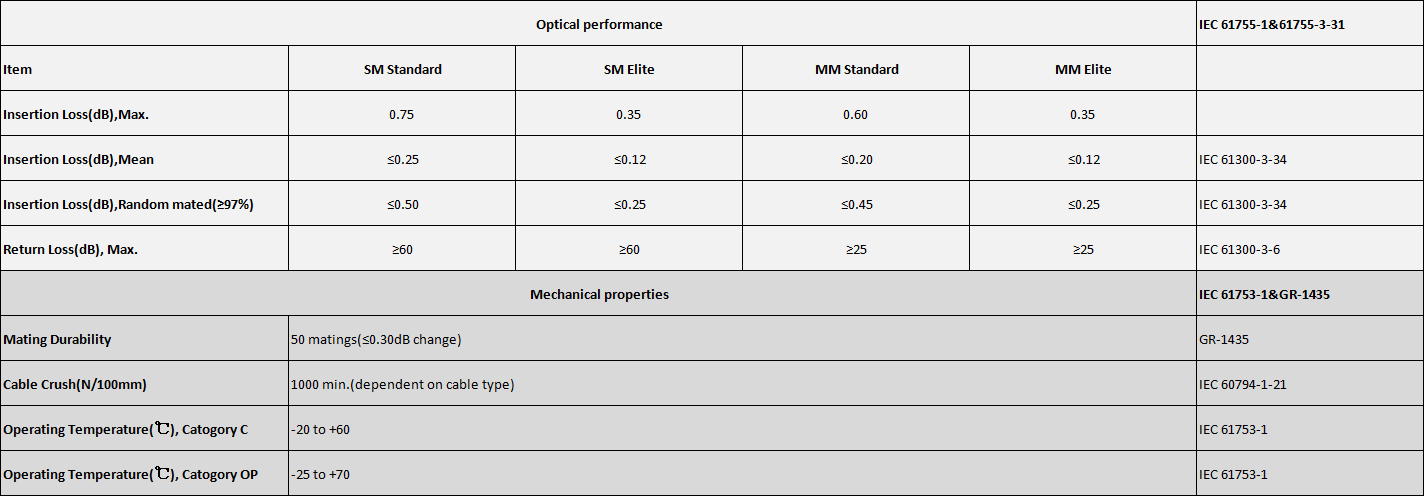

Specifications
