Coupling mode: passive coupling between MT and MT at 0 ° and 8 ° through guide pin
Insertion loss return loss parameters: MT insertion loss ≤ 0.60db, typical insertion loss 0.20db, MT return loss ≥ 20dB
Applicable environment: – 40 ℃ ~ + 85 ℃.
Product
The products are applied to qsfp, qsfp +, qsfp28, 100gpsm4, qsfp-dd, micro, OSFP, CXP, CFP, CDFP and other parallel transmission optical transceiver modules, and support OEM / ODM matching for internal micro connection applications of various types of optical modules above 200G.
Product
| Project | Specifications |

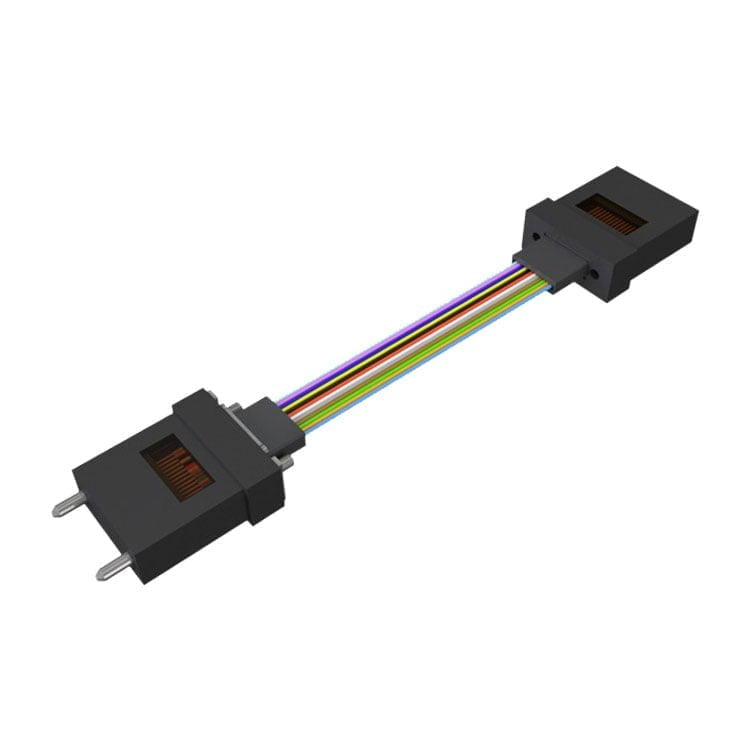

| Connector A | MT insert with guide pin |
| Connector B | MT pin |
| Fiber shape | Ribbon / loose fiber |
| Number of cores | 8F/12F/16F/24F |
| Optical fiber model | OM2、OM3、OM4、OM5；OS1、OS2 |
| Length | 20~50mm Optional |
| Length tolerance | +0.3/-0mm~+0.5/-0mm |
Product information
