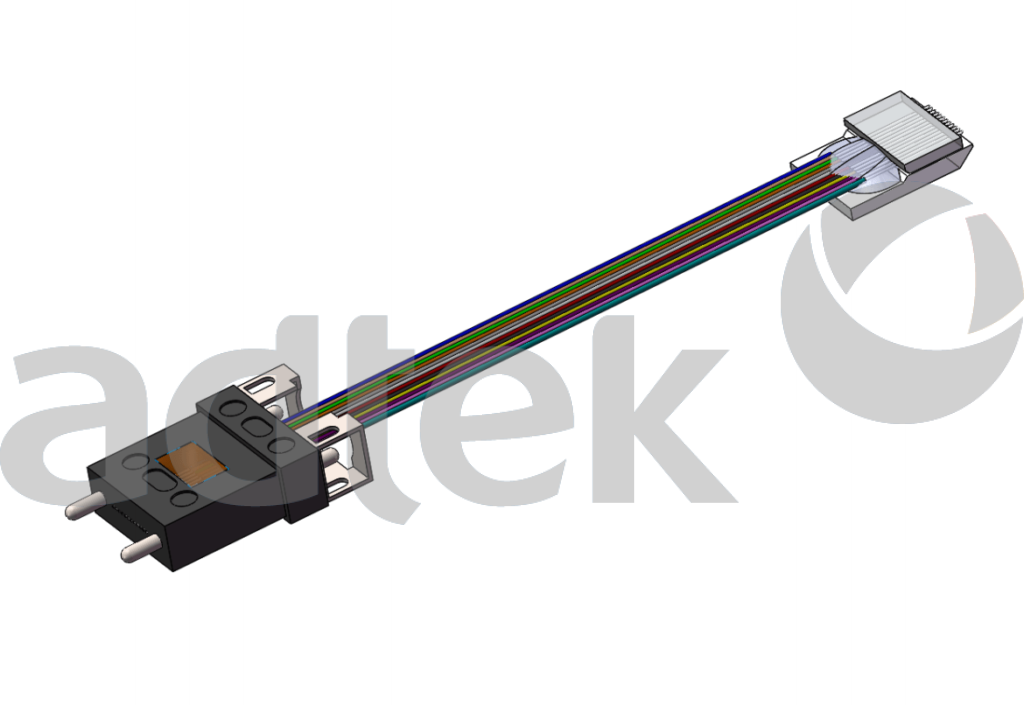

MT-45°FA fiber optic component
ADTEK’s MT-45°FA fiber optic component, developed for professional application, is used in QSFP, QSFP+, QSFP28, 100GPSM4, QSFP-DD, Micro, OSFP, CXP, CFP, CDFP, and other parallel transmission optical transceiver modules, supporting internal micro-connections for 200G and higher optical module applications.
Product
MT-45°FA fiber optic component
- Complies with GR-1435 reliability standards;
- Transmission mode: Multi-channel parallel optical connection;
- Supports 40G, 100G transmission rates;
Coupling method:
- Passive coupling achieved through guide pins between 0° and 8° jumpers and lens array components.
Insertion loss and return loss parameters:
- MPO: Standard loss ≤ 0.5dB, low loss ≤ 0.35dB Jumper: Standard loss ≤ 0.5dB
- Operating temperature range: -40°C to +85°C
Application Environment
Product
Application Environment
MT-45°FA fiber optic component
Passive optical interconnect components can be used in QSFP AOC, QSFP28 AOC, QSFP-DD AOC, Micro QSFP AOC, CXP AOC, CFP AOC, CDFP AOC, and any parallel optical transceiver module AOC. They support Ethernet optical networks, infinite bandwidth networks, fiber channel networks, and various other network types.
Specifications
Product
Specifications
MT-45°FA fiber optic component
| Project | Specifications |
| Connector A | MPO |
| Connector B | MT Ferrule |
| Fiber Category | Ribbon/Breakout |
| Number of Fiber Cores | 8F/12F/16F/24F |
| Fiber Model | OM2/0M3 |
| Length | 20-50mm range |
| Tolerance | 0.3mm-0.5mm |
