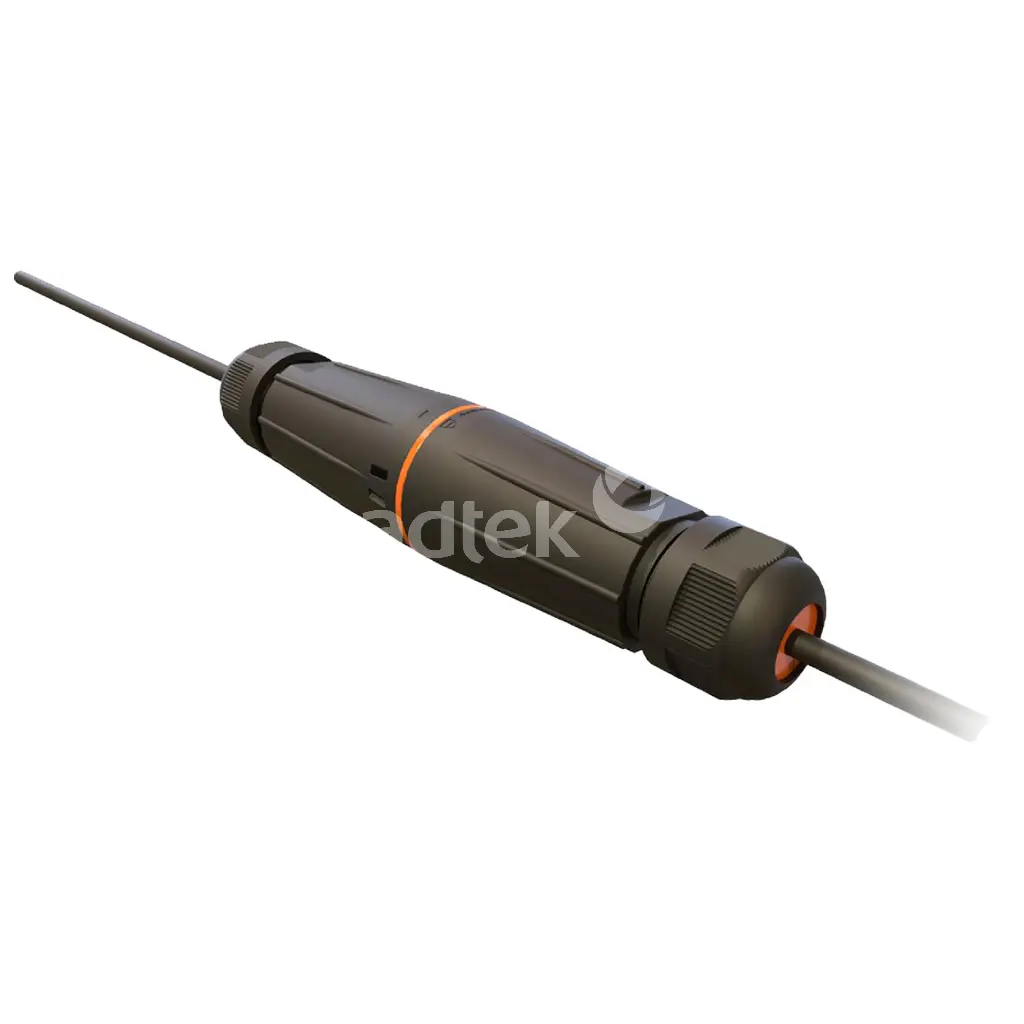

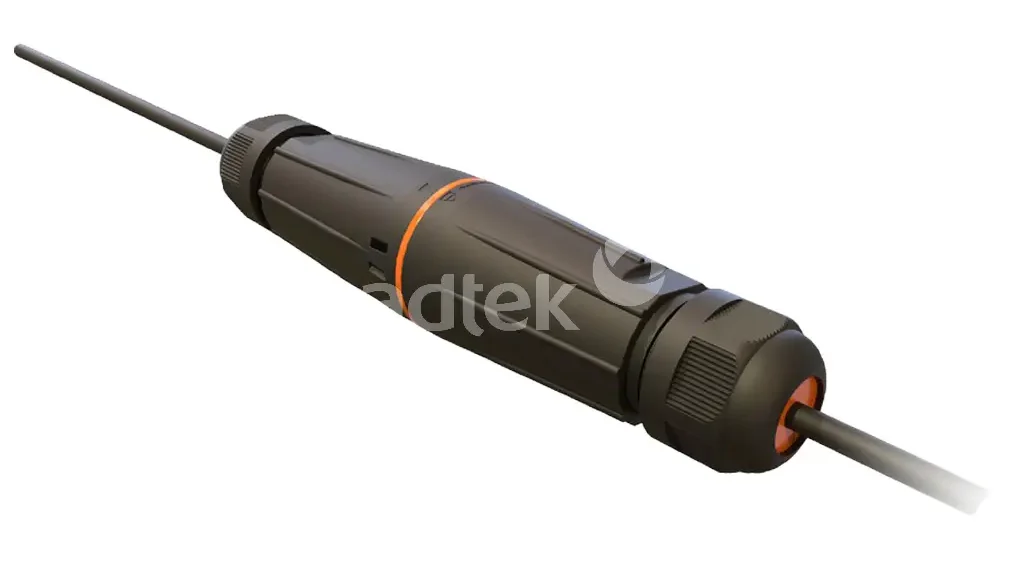

The Mini Outdoor In-line Sleeve is a lightweight, robust and tooless enclosure to help you to quickly make on the fly repairs, terminations, extensions or cable transitions in the field. It will ensure those splices or fiber couplers are protected against the weather for the time needed or till the perminant fix is installed.
The Mini Outdoor In-line Sleeve is a lightweight, robust and tooless enclosure to help you to quickly make on the fly repairs, terminations, extensions or cable transitions in the field. It will ensure those splices or fiber couplers are protected against the weather for the time needed or till the perminant fix is installed.
Distributed sensing at the access level of the FTTx network could have several benefits, such as notification when digging is done to close to the fiber, when there is tampering with the fiber, structural health of the cable or sensing of geological events (flooding, earth slide, etc…).
However, the
Environment | |
Deployment | Facade/Wall/Pole/Hand&Manhole/Strand |
IP Rating | IP 68 |
Temperature | Temperature -40 degrees to 85 degrees |
Humidity | 95% relative humidity |
Immersion | Water depth 1.5 meters, soak for 1 hour |
Standard Strain Relief | 100N |
Internal Strain Relief | 66N |
Cables | |
Cable Access Points | 2 inline |
Cable Acceptance | Round: OD 2mm – 11mm Flat: OD 4mm – 8mm |
Strain Relief | Fibre strand relief at connector (100N) Internal with aramid yarn clamp External for areal application under research |
Connectivity | |
Single Fiber Splice | 2 Fusion or Mechanical holders for 3 different sizes |
Multi Fibre Splice | 1 Fusion ribbon or spiderweb |
Adapters | 1xRJ45 / 1xSC / 1xLCD |
Physical | |
Length | 175mm |
OD | 36mm |
Color | Black UV-resistant Grey & other colors on demand |
