CS Patch cord
Product
CS Patch cord

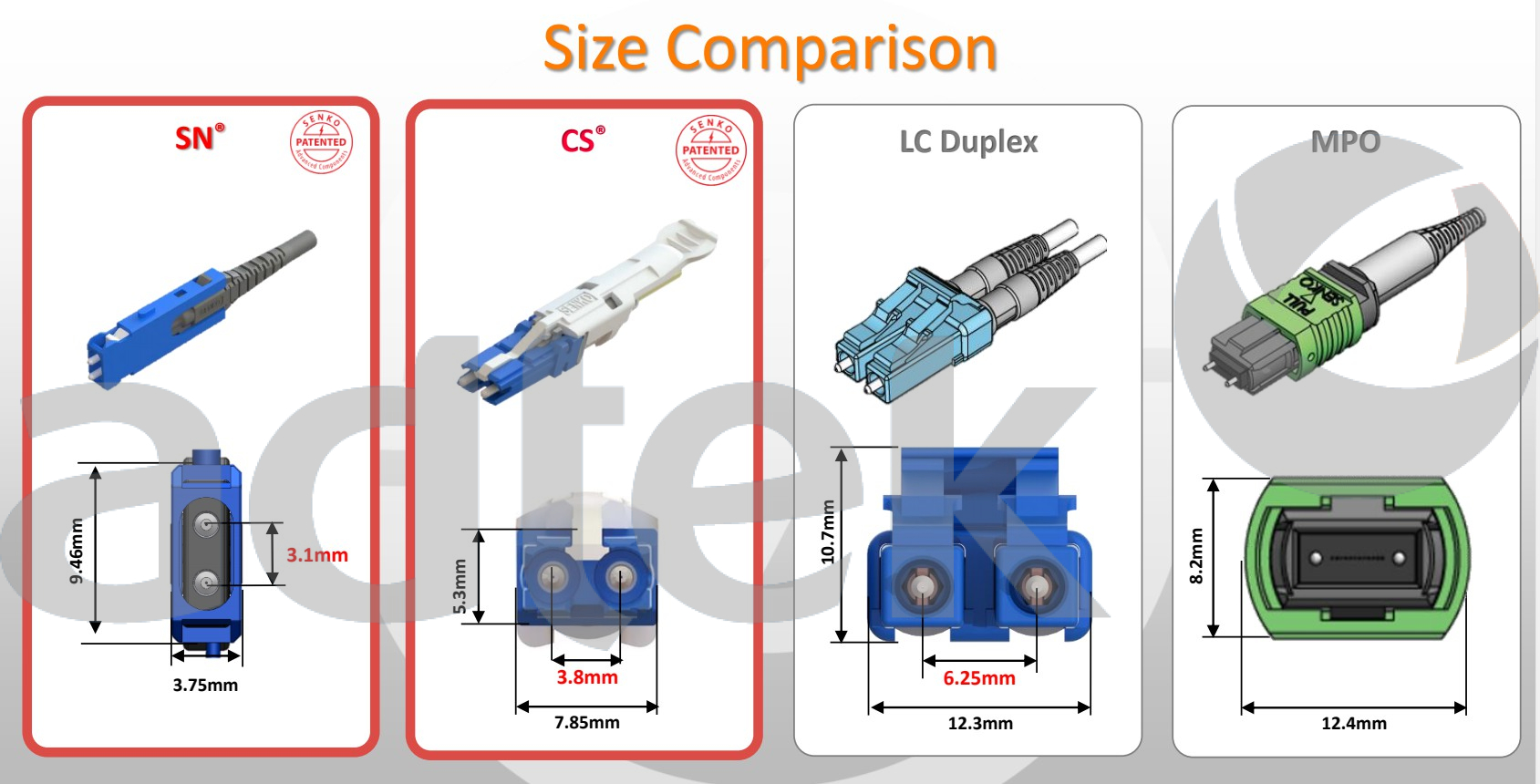

1. 45% volume reduction compared to LC dual core connectors
2、Designed for OSFP/QSFP-DD applications
3、Applicable to 1.25mm inserts
4、With push-pull bar
5、IEC interchangeability test Grade B
Application Environment
Product
Application Environment
CS Patch cord
1.400G QSFP-DD/OSFP optical module direct connection solution
Two CS-CS single-mode fiber patch cables can be used for 400G QSFO-DD/OSFP optical module direct connection.
2.400G QSFP-DD/OSFP-2x200G QSFP56 optical module direct connection
Two CS-LC single-mode fiber patch cables can be used to connect 400G QSFO-DD/OSFP to 200G QSFP56 optical module.
3.400G QSFP-DD/OSFP-2x200G QSFP56 optical modules direct connection

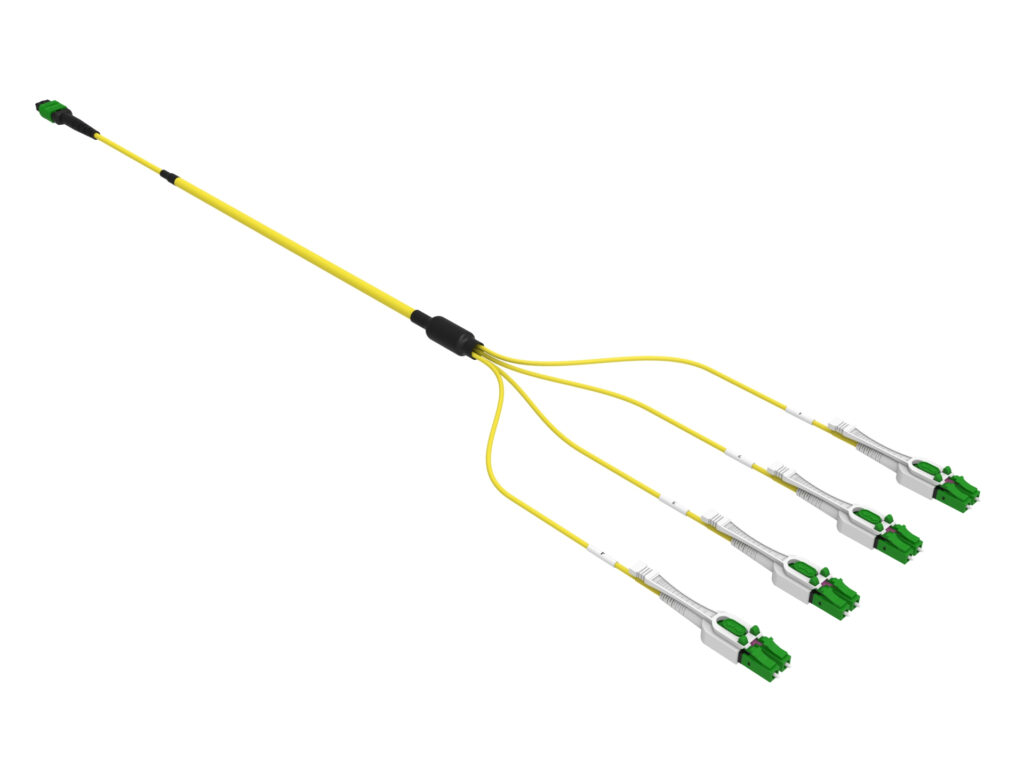

The backbone line uses MPO fiber patch cable to connect high-density wiring box and pre-terminated module box to realize high-density wiring, and CS to LC fiber patch cable is used to connect near equipment end to realize 400G integrated wiring.
Specifications
Product
Specifications
CS Patch cord
Download
Product information
information Download
information Download
