Compact Power. Maximum Density.

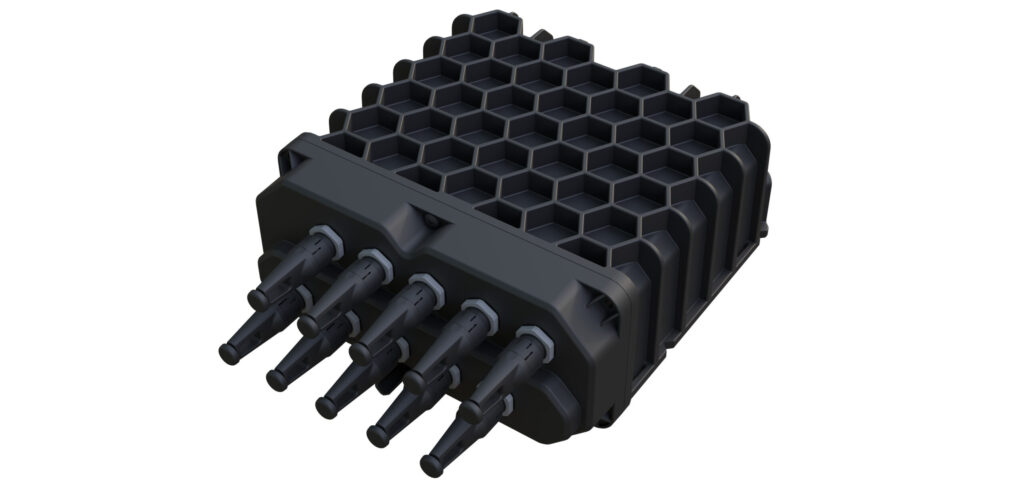

HADD-Evo Hardened Access Terminal — GR-771-certified ruggedness with proprietary 11.5mm UMHA connectors.

Deploy 30 hardened fibers (24 distribution + 6 cascade) in a terminal the size of competing 12-port units.

Pre-terminated, cascade-ready, and factory-tested for the harshest outdoor environments.

11.5mm Connector

30-Port Max (24+6)

GR-771 / IP68

Cascade Architecture

Proprietary UMHA Technology

At just 11.5mm outer diameter, the UMHA connector is 32% smaller than other HE connectors and nearly half the size of standard hardened SC (22mm). Designed and manufactured in-house by ADTEK, UMHA enables unmatched density: 30 ports (24 distribution + 6 cascade/pass-through) in our Large terminal versus the 12-port maximum of competing hardened terminals. Same GR-771 pull strength (450N), same IP68 submersion rating, significantly smaller footprint.

Pass Through, Don't Dead-End

Unlike standard terminals that dead-end fibers, HADD-Evo features cascade ports—6 on the L-size (4 on M, 2 on S). Bring fiber in, split to 24 drops (via 3× 1:8 splitters), and pass fiber out to the next terminal. Daisy-chain from the Central Office through rural routes or MDU corridors without additional splice closures. The 6 cascade ports flex as inputs, outputs, or pass-throughs depending on your network topology.

Deploy, Don't Splice

Unlike splicing-based terminals that require vans, power, and skilled technicians, HADD-Evo arrives factory-terminated and tested. Installers simply mount the terminal (wall, pole, or strand), push-pull the connectors into place with gloved hands, and verify with a simple optical check. No field polishing, no fusion splicing, no weather delays. Cut installation time by up to 70% compared to traditional splice closures.

GR-771 / IP68 Certified

Don’t let the small size fool you. UMHA connectors and HADD-Evo terminals undergo the same Telcordia GR-771 and GR-3120 testing as the industry’s largest hardened terminals: 450N connector retention, 1.5-meter water immersion, -40°C to +75°C temperature cycling, and 95% humidity. The IP68 rating ensures submersible protection even in flooded hand-holes or hurricane-prone regions. Extreme retention mechanics keep connections secure against vandalism and accidental damage.

Technical Specifications

Standards: Telcordia GR-771, GR-3120, GR-326, IEC 61753-1 Grade B, IEC 61754, IP68

Terminal Environmental:

IP Rating:IP68 (submersible)

Cable Acceptance:Round 3-8.1mm OD / Flat 3×8.1mm

Mounting Options:Wall, Pole, Strand (wire)

Splitters:Factory-integrated PLC (1:2, 1:4, 1:8, 1:16, 1:32) or Tap configurations (90/10, 85/15, 80/20, 70/30, 60/40)

UMHA Connector Specifications:

Outer Diameter:5mm (32% smaller than other HE connectors, 48% smaller than standard hardened SC)

Connection Type:Push-pull, toolless (gloves-on compatible)

Strain Relief:450N (GR-771 compliant)

IP Rating:IP68 (1.5m water depth, GR-3120)

Operating Temperature:-40°C to +75°C

Insertion Loss (UMHA/UMHA):≤0.65dB max, 0.15dB typical

Return Loss:≥60dB (APC)

Optical Performance (Single-Mode)

Feature

HADD-Evo S (Small)

HADD-Evo M (Medium)

HADD-Evo L (Large)

Best For

Single-family / rural tap

Multi-dwelling / FTTA

High-density building / MDU cascade

Total Ports (UMHA)

10 (8 dist + 2 in/ex)

20 (16 dist + 4 in/ex)

30 (24 dist + 6 in/ex)

Total Ports (HEC/IP9)

10 (8+2)

20 (16+4)

Cascade Config Example

1 in + 1 out + 8 drops

2 in + 2 out + 16 drops

3 in + 3 out + 24 drops

Dimensions (L×W×H)

154×84×30mm

200×208×90mm

230×219×136mm

Weight

265g

~450g

~650g

Splitters

1:2 or 1:4 PLC (optional)

1:8 or Cascade/Tap

1:16, 1:32, or Cascade/Tap

Deployment Configurations

Tap the Last Mile

Low-density rural environments demand efficient fiber usage. The compact S-terminal with 2 cascade ports + 8 distribution ports enables true cascade architecture: signal enters, 10% or 20% is tapped off for the farmhouse, and the remainder continues to the next terminal. At just 265g and 30mm thin, it mounts discreetly on utility poles or strand-mounted without overload. The 11.5mm UMHA connectors survive 450N pull forces during aerial installation, and IP68 protection handles ice, wind, and UV exposure. Deploy pre-terminated stub assemblies to eliminate field splicing in remote locations.

Density Without the Bulk

Serve 16 apartments from a terminal the size of a paperback book. The M-terminal’s 4 cascade ports + 16 distribution ports fit crowded telecommunications closets and utility alcoves where traditional 19″ cabinets won’t. Use 2 fibers in, 2 fibers out, and split to 16 drops (2× 1:8 splitters) for efficient MDU distribution. Pre-terminated with UMHA drop cables, installers complete connections in minutes—not hours. The toolless push-pull interface means no dropped screws in dark basements, and the tamper-proof design secures against unauthorized disconnection.

30 Ports, One Compact Hub

Achieve central office-level density at the building edge. The L-terminal delivers 30 hardened connections(24 distribution + 6 cascade) in a 230×219mm package that competitors limit to 12 ports. Ideal for large apartment complexes and rural cascade architectures: bring 3 fibers in, split to 24 drops (3× 1:8 splitters), and pass 3 fibers out to the next terminal. No splicing, no additional closures—just continuous hardened connectivity from the CO to the home.

Get the Density Advantage

Ready to deploy the industry’s most compact hardened connector? Request a HADD-Evo evaluation kit featuring UMHA and HEC connector samples, all three terminal sizes (S/M/L), and mounting hardware for wall, pole, and strand installations. See how 11.5mm technology can deliver 30 ports per terminal while cutting installation time by 70%.
