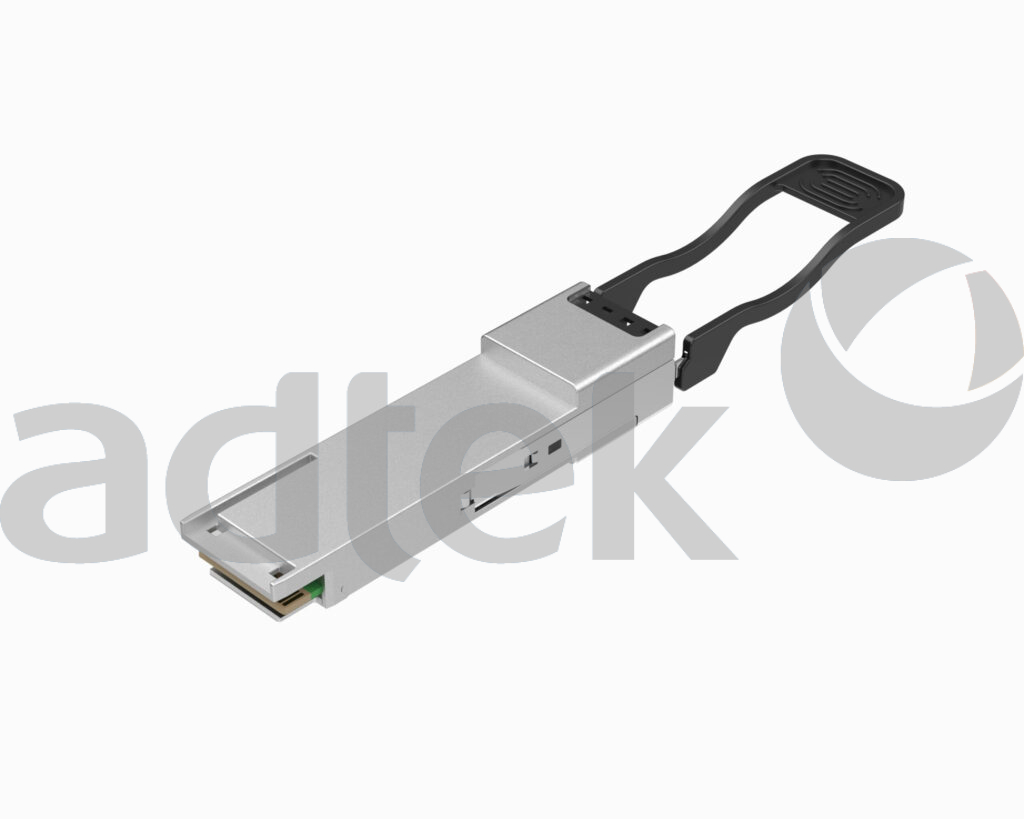

100G QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet links over multimode fiber. They are compliant with the QSFP28 MSA and IEEE 802.3bm 100GBASE-SR4and CAUI-4.
Our MTP®/MPO high-density fiber connector series is engineered for modern data centers and high-speed optical networks, offering up to 72 fibers in a compact form. With low insertion loss, high reliability, and modular design, it ensures fast deployment, efficient cable management, and seamless scalability for 40G/100G/400G Ethernet and 5G infrastructure.
This article provides essential tips for installing MPO/MTP® fiber optic jumpers, covering key points such as selecting the right jumper, fiber management, cleaning connectors, verifying polarity, ensuring compatibility, securing connections, and testing performance to ensure optimal network performance.
100GBASE-SR4 100G Ethernet
Parameter | Symbol | Min. | Typical | Max. | Unit |
Storage Temperature | TS | -40 | +85 | °C | |
Case Operating Temperature | TA | 0 | 70 | °C | |
Supply Voltage | VCC | -0.5 | 4 | V | |
Relative Humidity | RH | 0 | 85 | % | |
Receiver Damage Threshold, per Lane | PRdmg | 3.4 | dBm |
Parameter | Symbol | Min. | Typical | Max. | Unit |
Bit Rate (all wavelengths combined) | BR | 103.1 | Gb/s | ||
Bit Error Ratio (pre-FEC) | BER | 5×10-5 | |||
Maximum Supported Distances | |||||
Fiber Type | |||||
OM3 MMF | Lmax1 | 70 | m | ||
OM4 MMF | Lmax2 | 100 | m | ||
